Associated Electrics rc10b5 - Slipper Build

9

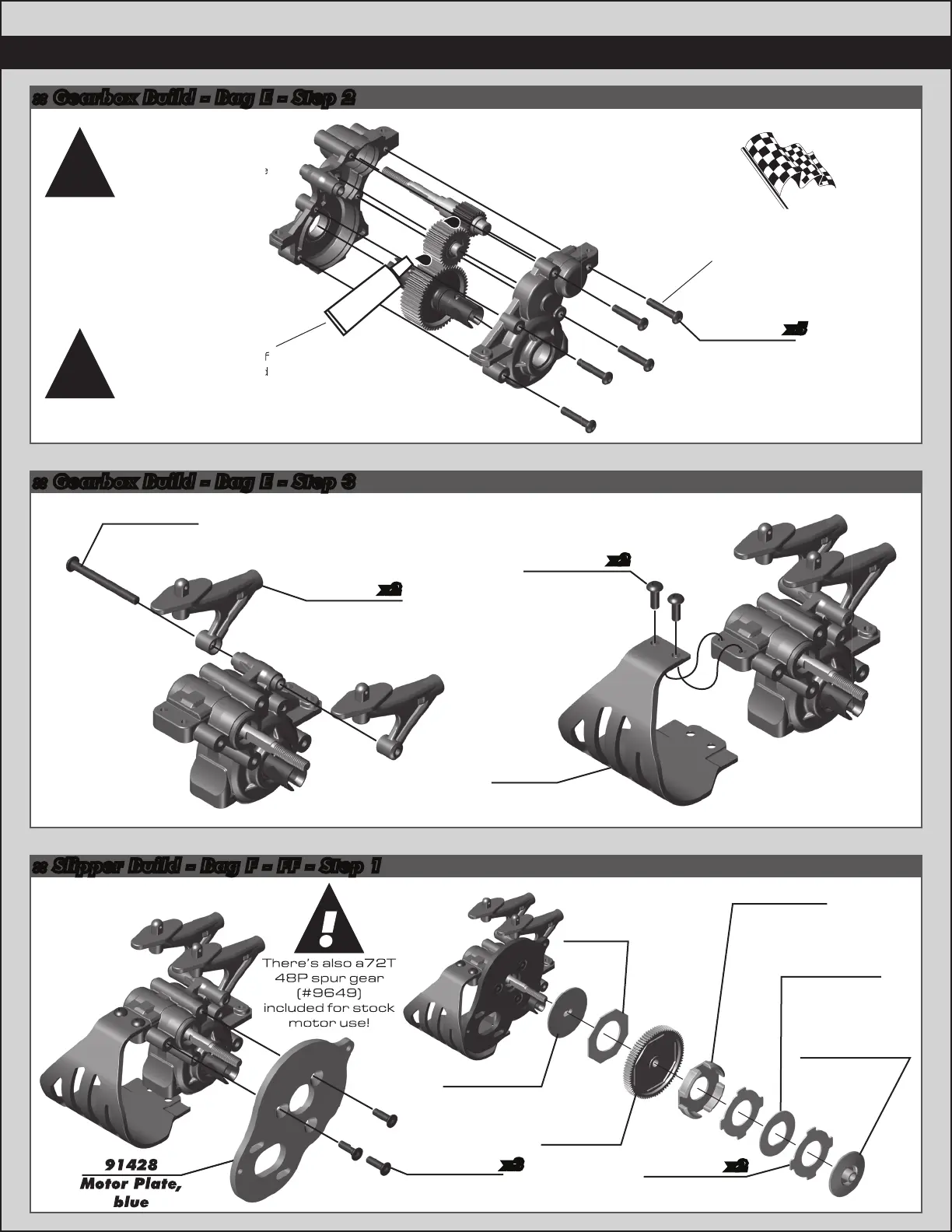

:: Slipper Build - Bag F - FF - Step 1
x2
7485
FT V2
Slipper Hub
91177
VTS Slipper
Pads
9603
Slipper
Pad
9651
81T 48P
Spur Gear
91176
VTS Slipper
Housing
91178
VTS Slipper
Plate
91179
VTS Slipper
Hub, outer
25202
M3 x 10mm
FHCS
x3
91428
Motor Plate,
blue
:: Gearbox Build - Bag E - Step 3
91478
M3 x 30mm
BHCS
91433
Wing
Mounts
31532
M3 x 8mm
BHCS
91432
Motor
Guard
x2
x2
:: Gearbox Build - Bag E - Step 2
Install the Diff with
the head of the
Diff Thrust Bolt
(#6573) facing the
same side as the
spur gear.
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
!
!
(#6573) facing the
the teeth of the diff
gear, idler gear, and
89203
M3 x 16mm
BHCS
x5
#6591
diff lube
There’s also a72T
48P spur gear
(#9649)
included for stock
motor use!
!
91428
Motor Plate,
blue
There’s also a72T
48P spur gear
(#9649)
included for stock
motor use!
!
You can add black
grease (#6588) to the
screw threads to ease
screw installation.
