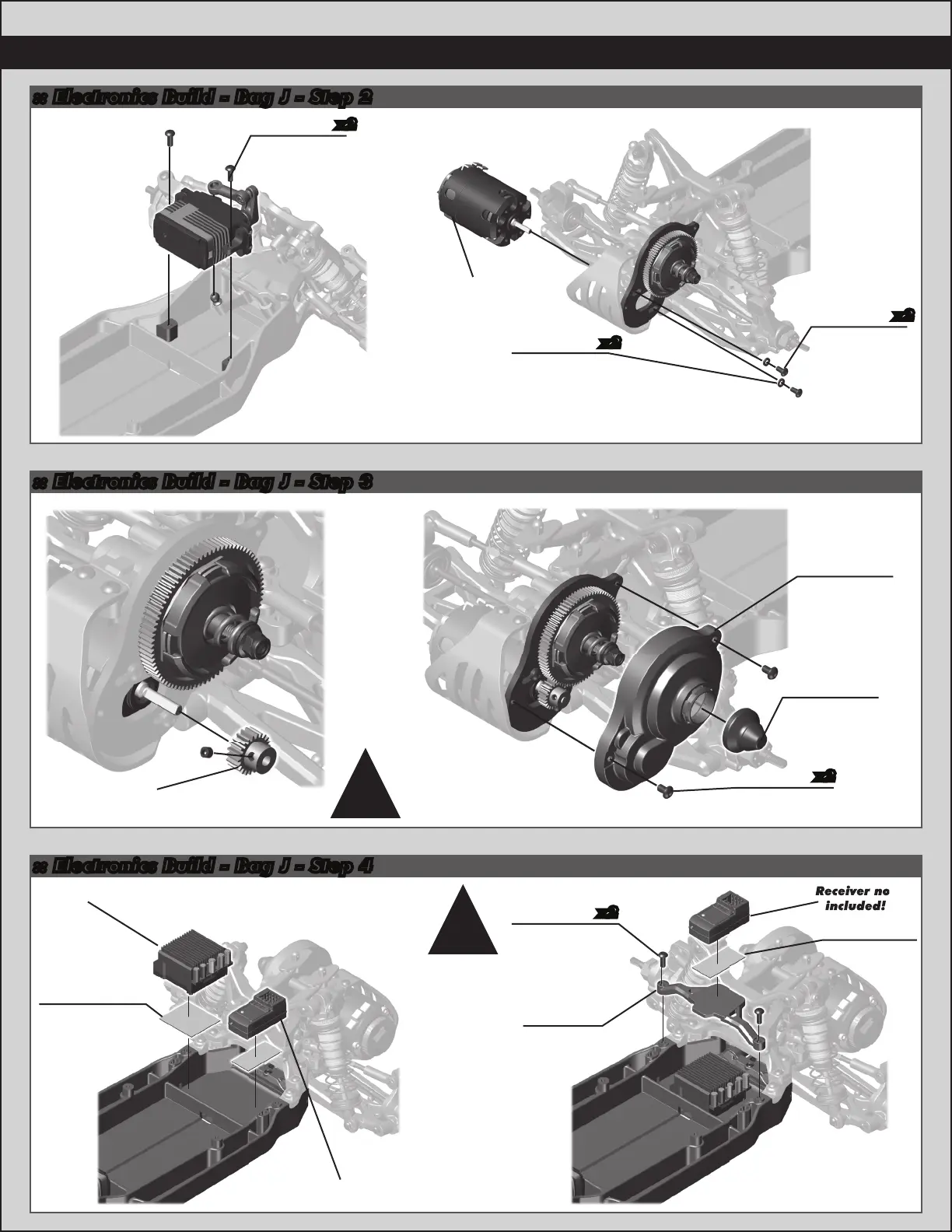

:: Electronics Build - Bag J - Step 3
:: Electronics Build - Bag J - Step 4
Receiver not
included!
Receiver not
included!
ESC not included!
Pinion / Setscrew
not included!
See page 18 for
gear mesh setting
instructions!
!
91089
Belt Cover
Cap
91435
Gear
Cover
(black)
31530
M3 x 5mm
BHCS
6727
Servo Tape
x2
:: Electronics Build - Bag J - Step 2
Motor not included!
31532
M3 x 8mm
BHCS
31532
M3 x 8mm
BHCS
x2
x2
x2
89218
3 x 8mm
Washer
Use included
optional
Receiver mount
if ESC clearance
is needed
!
Receiver not
included!
91380
Receiver
Mount
31532
M3 x 8mm
BHCS
x2
6727
Servo Tape
