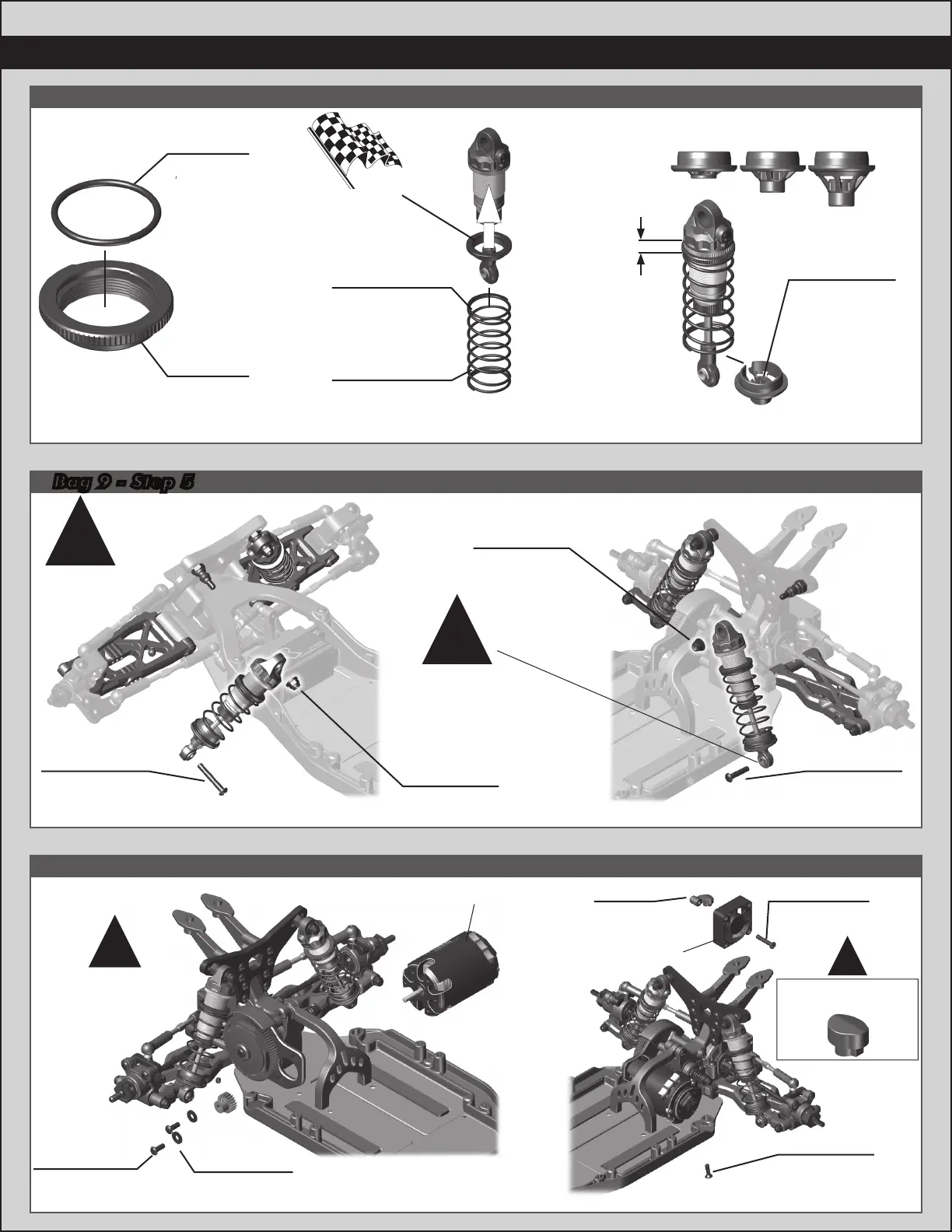

Associated Electrics RC10B6.2D KIT - Bag 9 - Step 4; Bag 9 - Step 5; Bag 10 - Step 1

16
:: :: Bag 10 - Step 1Bag 10 - Step 1
:: :: Bag 9 - Step 5
:: :: Bag 9 - Step 4Bag 9 - Step 4
91304
12mm
Threaded
Collar
91304
12mm
Threaded
Collar
O-ring
x4x4
x4x4
Threaded
91814
12mm shock
spring cup
(Front - 5mm
Rear - 5mm)
91831
12mm Front
Spring, White
(3.40lb)
91838
12mm Rear
Spring, White
(1.90lb)
Front:
3.70mm
Rear:
8.40mm
Build x2 front and x2 rear shocks
Racers Tip:
Use your finger to rub
shock oil on the o-ring for
smoother adjustment!
#91814 12mm Shock Spring Cups
0mm 5mm 9mm
Build x2 (right and left side)Build x2 (right and left side)
Use outside
hole in
front arm!
!
25612
M3 Locknut
w/Flange
25612
M3 Locknut
w/Flange
25187
M3 x 14mm
BHCS
25188
M3 x 20mm
BHCS
Make sure the
flange on the
shock pivot ball is
towards the rear
arm.
!
See page 21 for
gear mesh setting
instructions!
!
Motor not included!
Pinion / Setscrew
not included!
31532
M3 x 8mm
BHCS
x2x2
x2x2
89218
3 x 8mm
Washer
25202
M3 x 10mm
FHCS
89203
M3 x 16mm
BHCS
91867
Fan
Mount
Fan not included!
Use cap mount if
not installing a fan.
!
