Associated Electrics RC10B6.2D KIT - Bag 1 - Step 1; Bag 1 - Step 2; Bag 2 - Step 1

:: :: Bag 1Bag 1 - - Step Step 2 2
:: :: Bag Bag 22 - - Step Step 1 1
5

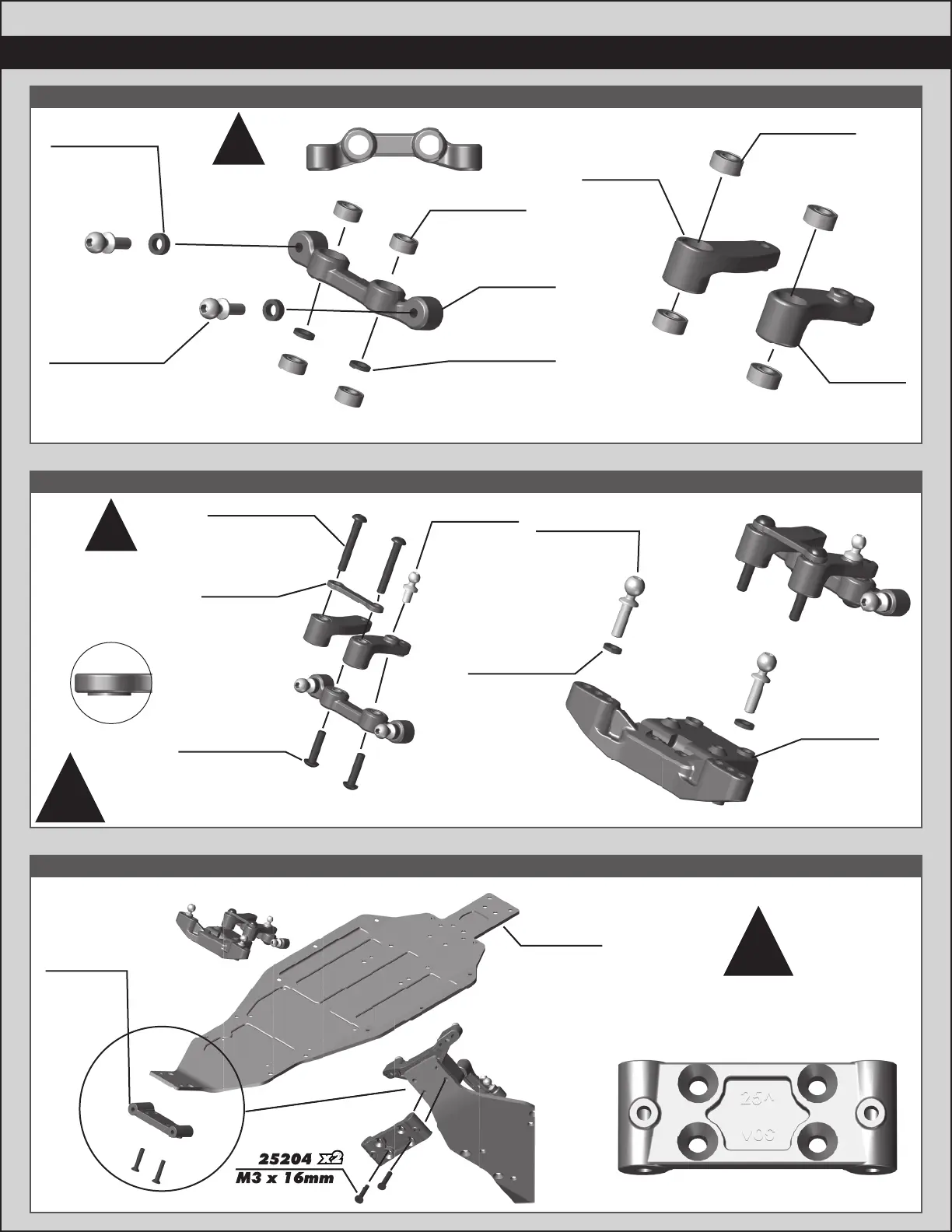

:: :: Bag 1 -Bag 1 - Step 1 Step 1
1/20
91667
Steering
Bellcrank
Brace
x2x2
25188
M3 x 20mm
BHCS
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
91475
3 x 7 x 3
Ball Bearing
91667
Steering
Bellcrank
(Right)
91667
Steering
Bellcrank
(Left)
x4x4
!
x2x2
89202
M3 x 12mm
BHCS
31283
5mm Ball
Stud, Long
The steering
bellcrank brace
has offsets on one
side. They should be
installed towards
the bearings.
!
x2x2
x2x2
91049
Heavy-duty
Ballstud,
10mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
91766
Front
Ball Stud
Mount
x2
25204
M3 x 16mm
FHCS
91765
Chassis,
B6.1
x2
x2
25204
M3 x 16mm
91656
Bulkhead
There are two bulkhead settings
(25 °, 30 °). 25 ° is the standard used.
The arrow should point
forward for the desired setting.
!
25
30
>
>
91475
3 x 7 x 3
Ball Bearing
91667
Steering
Rack
x4x4
x2x2
x2x2
x2x2
91048
Heavy-duty
Ballstud,
8mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
31382
FT Ballstud
Washer,
Aluminum
(1mm)
Note orientation
of steering rack.
!
Front
TOP
