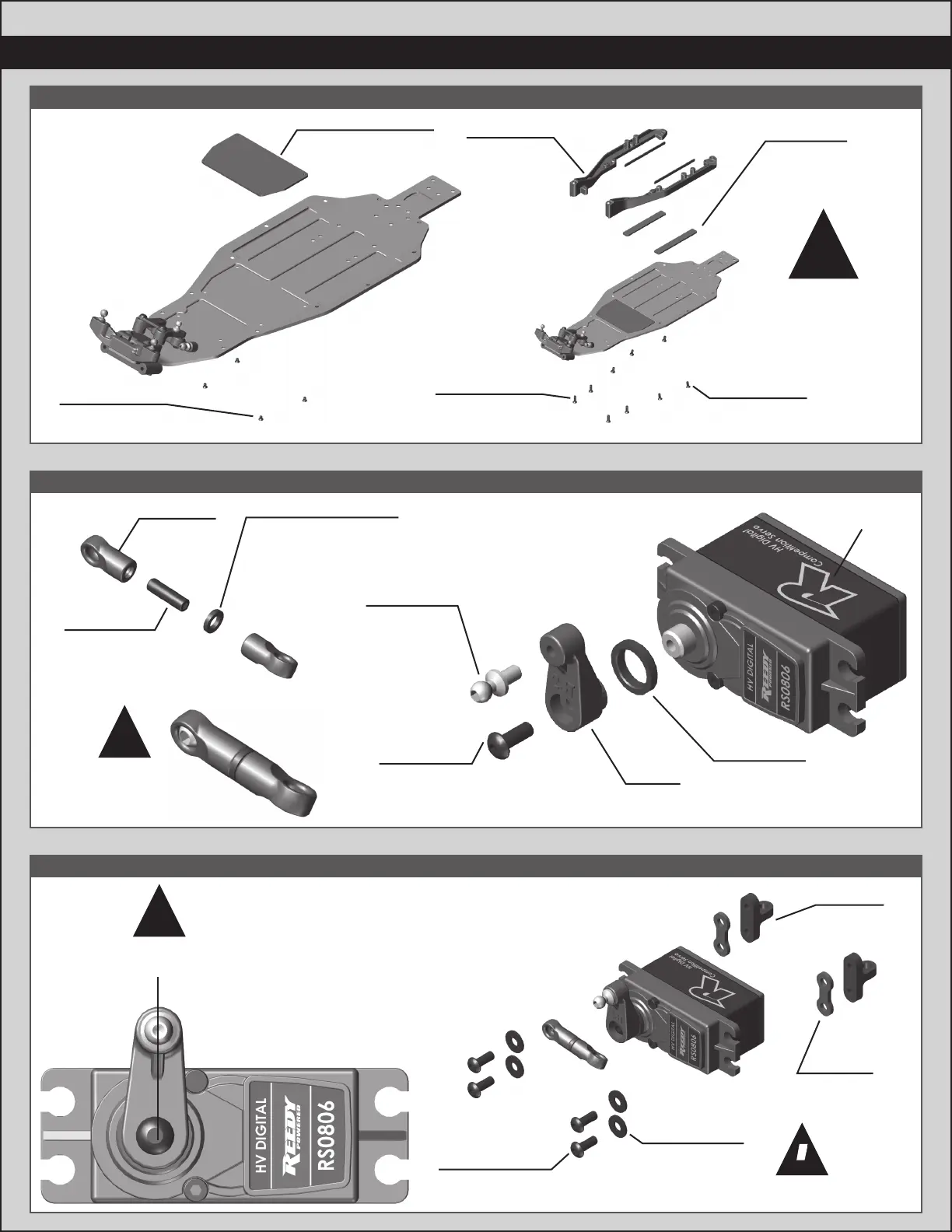

Associated Electrics RC10B6.2D KIT - Bag 2 - Step 2; Bag 2 - Step 3; Bag 2 - Step 4

6
:: :: Bag 2 Bag 2 -- Step 2Step 2
:: :: Bag 2 Bag 2 -- Step 4Step 4
:: :: Bag 2 Bag 2 -- Step 3Step 3
4671
M3x10mm
Set Screw
91820
Steering
Link, B6.1
31382
FT Ballstud
Washer, aluminum
(1mm)
Tighten the
steering link ball
cups all the way
until snug.
!
x2x2
#91728 - Servo Spacers
are not required for all servos.
!
Align the servo
horn 90 degrees
!
!
89218
M3 x 8mm
Washer
91719
Servo
Mount
91728
Servo
Spacers
31532
M3 x 8mm
BHCS
x4x4
x2x2
x2x2
x4x4
91728
Servo Horn
Ring
31284
8mm Ball
Stud, Long
91728
Servo
Horn
Servo not
included!
31532
M3 x 8mm
BHCS
x4x4
x4x4
x5x5
25202
M3 x 10mm
FHCS
91749
M2 x 3mm
FHCS
91652
Side Rails
(L & R)
91746
B6 FT Aluminum
Chassis Weight,
13g
25201
M3 x 8mm
FHCS
91734
Battery
Foam, B6
#91734 - Side Rail Foams
Have two thickness
options to accomodate
any battery size.
!
