Associated Electrics RC10B6.2D KIT - Bag 2 - Step 5; Bag 2 - Step 6; Bag 2 - Step 7

7

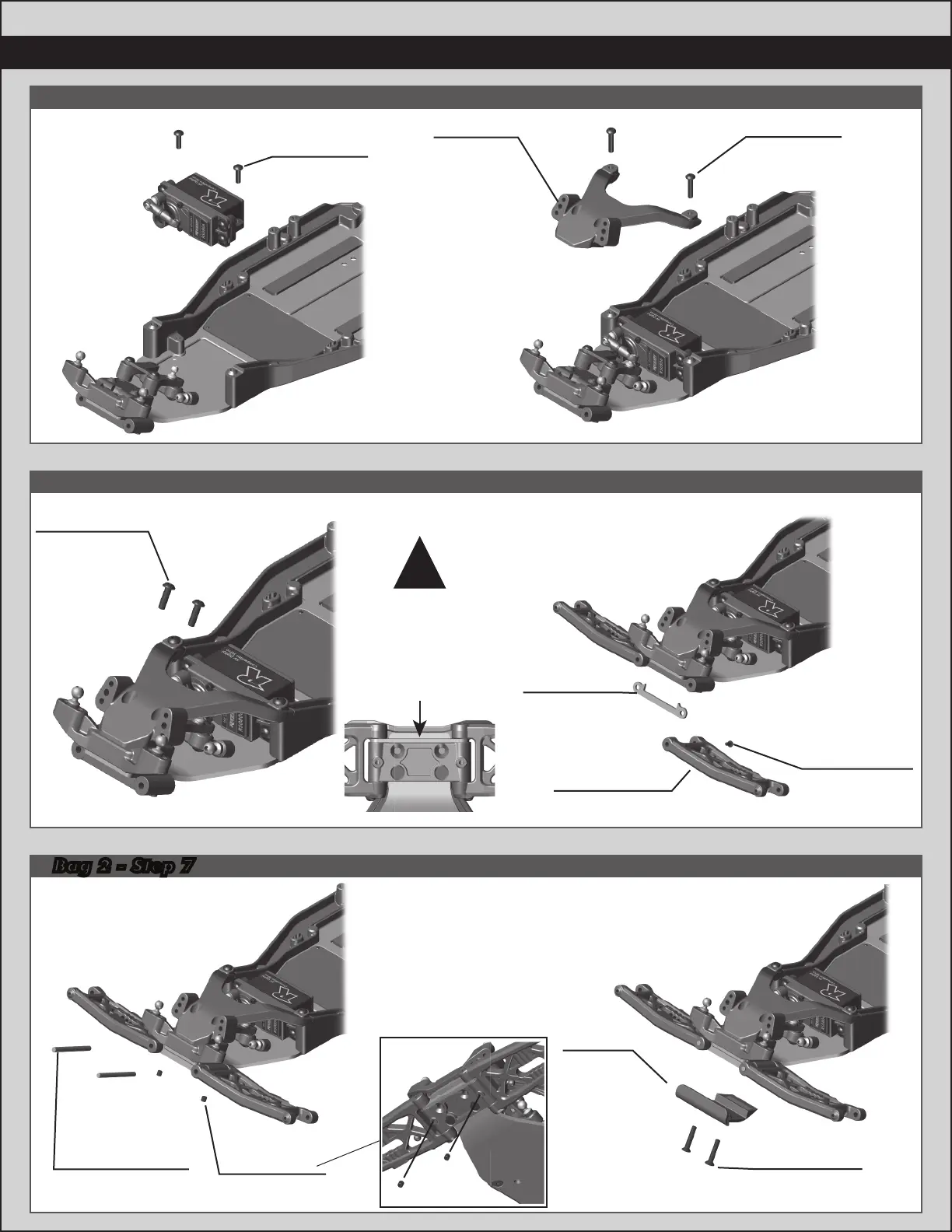

:: :: Bag 2 - Step 7
:: :: Bag 2 Bag 2 -- Step 6Step 6
:: :: Bag 2 Bag 2 -- Step 5Step 5
The front hinge pin
brace has a sharp
edged side, and a
rounded edge side.
Mount the sharp
edge side towards
the bulkhead.
!
91670
Front Hinge Pin
(Inner, 3x34mm)
25225
M3 x 3mm
Set Screw
x2x2
x2x2
25204
M3 x 16mm
FHCS
91685
Front
Bumper
x2x2
31510
M2 x 4mm
BHCS
91673
Front Arms,
Gull-Wing, B6
91656
Front Hinge
Pin Brace,
B6
x2x2
25211
M3 x 10mm
BHCS
x2x2
25211
M3 x 10mm
BHCS
x2x2
91766
Top Plate,
B6
25187
M3 x 14mm
BHCS
x2x2
