Associated Electrics RC10B7D - Page 14

14

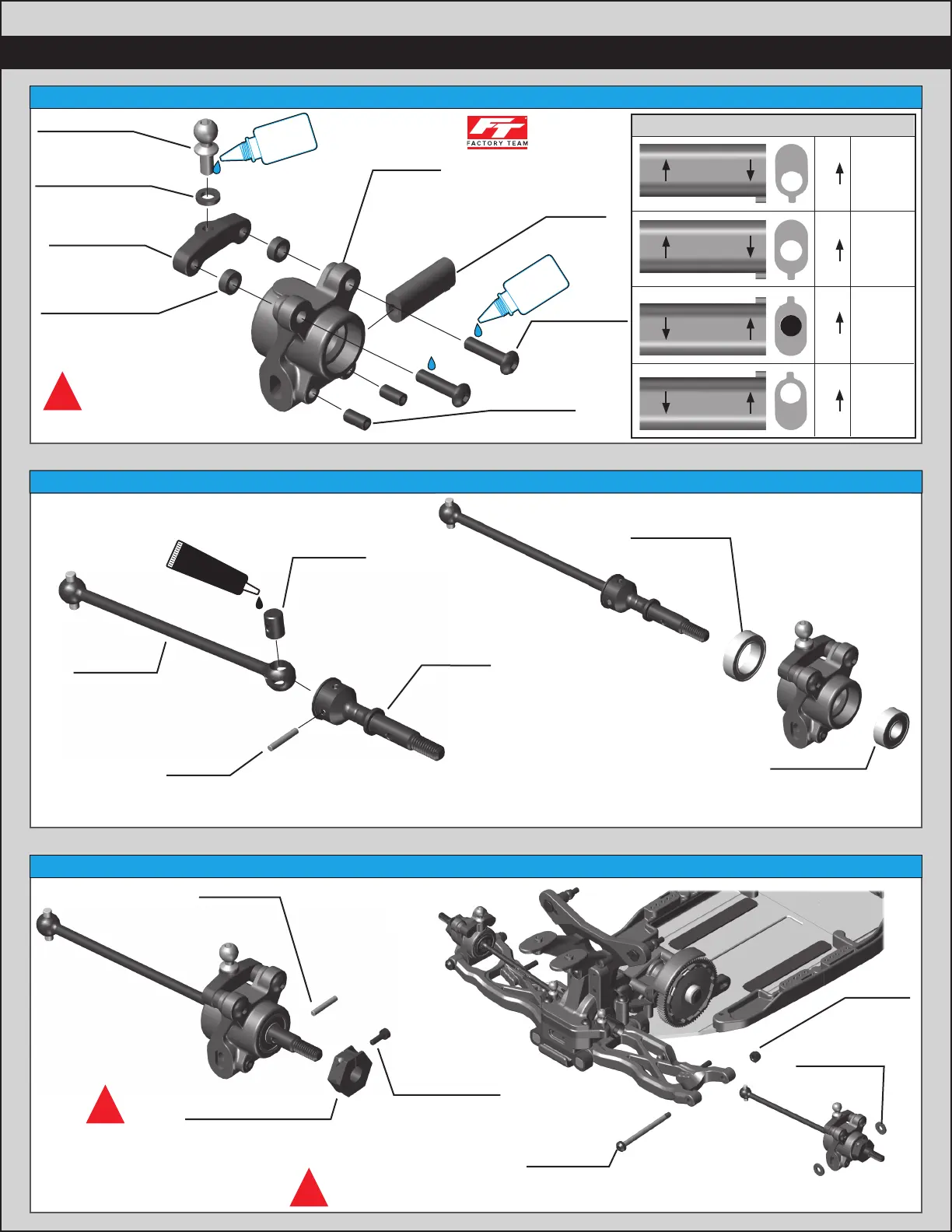

:: :: Bag 7 -Bag 7 - Step 1 Step 1
:: :: Bag 7 -Bag 7 - Step 2 Step 2
:: :: Bag 7 -Bag 7 - Step 3 Step 3
Build x2 (right and left side)
Build x2 (right and left side)
91611
M1.6 x 5mm
SHCS
91436
CVA Wheel
Hex Pin
91609
Clamping Wheel Hex,
5mm Off set (rear)
Do not overtighten the
1.6 x 5mm SHCS into the
Clamping wheel hex.
Hinge Pin will be tight in the rear
hub, but should rotate freely
in the rear arms.
Build x2 (right and left side)
91563
10 x 15 x 4
Bearing
91567
5 x 12 x 4
Bearing
Rear Axle Height
1
0
3
2
+3mm
+2mm
+1mm
Kit
Setup
+0mm
0
3
1
2
1
2
0
3
92179
Rear Hub
Spacer
x2x2
92188
Rear Hub
Hinge Pin
25215
M3
Locknut
!
!
Note: HRC and Std hubs
included in Kit.
HRC allows for higher axle
heights (+2 positions)
Build x2
91859
CVA Axle,
+2mm
91438
CVA Pin
91438
CVA
Coupler
92454
HD CVA
Bone,
69mm
Build x2 (right and left side)
89202
M3 x 12mm
BHCS
81267
M3 x 6mm
Set Screw
x2x2
x2x2
91047
Heavy-duty
Ballstud, 6mm
92441
Rear Hub Link
Mount, +1mm
92179
Rear Hub
Inserts
31383
Ballstud Washers,
5.5x2.0mm, blue
31382
Ballstud Washers,
5.5x1.0mm, blue
x2x2
THREAD
LOCK
#1596
THREAD
LOCK
#1596
BLACK GREASE
#6588
!
92412
B7 Rear
Hubs, Std
92413
Carbon
B7 Rear Hubs,
HRC
