15

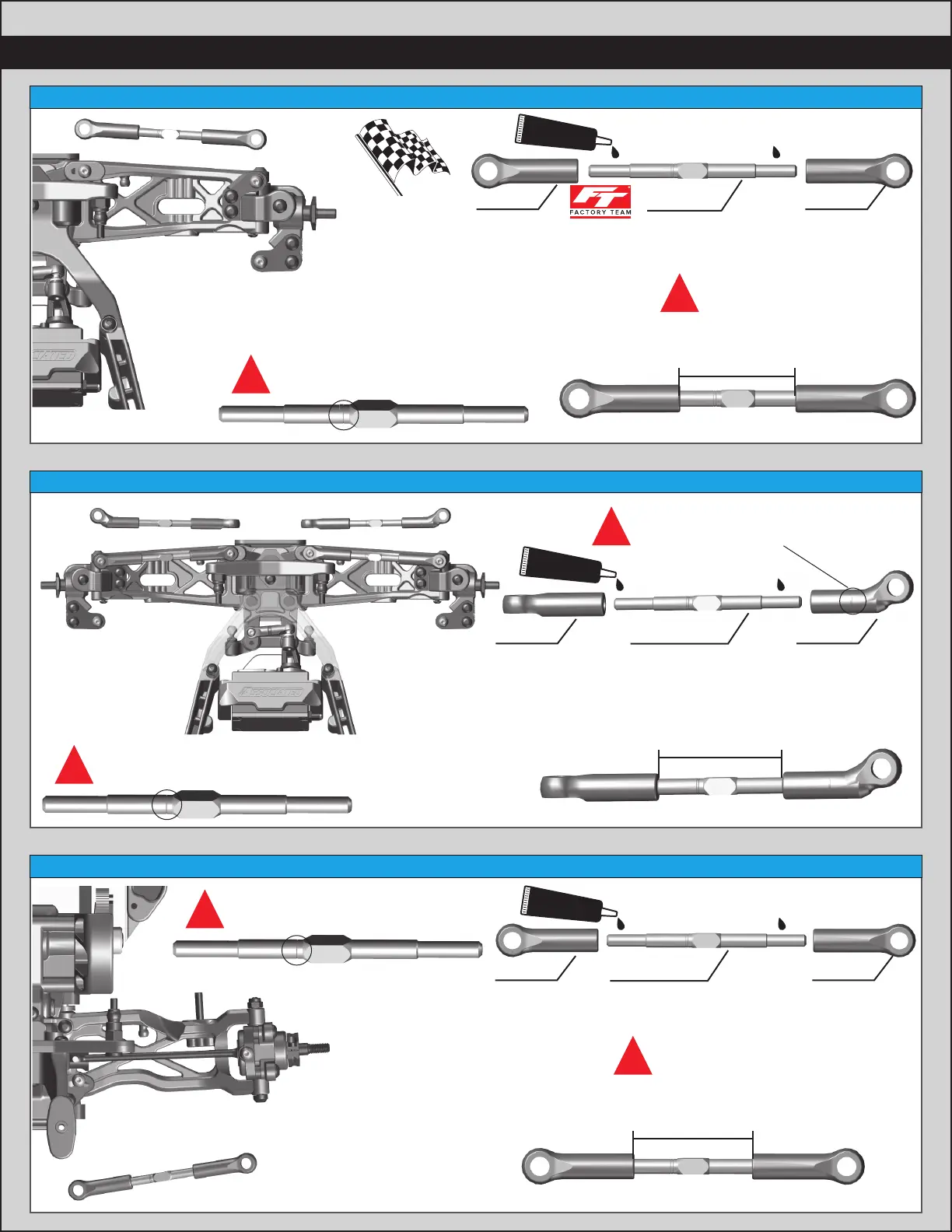

:: :: Bag 8 -Bag 8 - Step 1 Step 1
:: :: Bag 8 -Bag 8 - Step 2 Step 2
:: :: Bag 8 -Bag 8 - Step 3 Step 3
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Build x2 (right and left side)
Build x2 (right and left side)
Build x2 (right and left side)
BLACK GREASE
#6588
BLACK GREASE
#6588
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92337
Turnbuckle
3.5x48mm
92337
Turnbuckle
3.5x48mm
92337
Turnbuckle
3.5x48mm
Front Camber Turnbuckle
Steering Turnbuckle
Rear Camber Turnbuckle
26.50mm
28.30mm
27.40mm
BLACK GREASE
#6588
92360
Titanium
Turnbuckle
3.5x48mm
Measurements given are
approximation. Camber
should be set with a gauge
at ride height.
!
There are two off set ballcups labeled
“1” and “2”. The ballcup labeled “1”
goes on the right side of the vehicle.
!
Measurements given are
approximation. Camber
should be set with a gauge
at ride height.
!
