Associated Electrics RC10B7D - Page 6

6

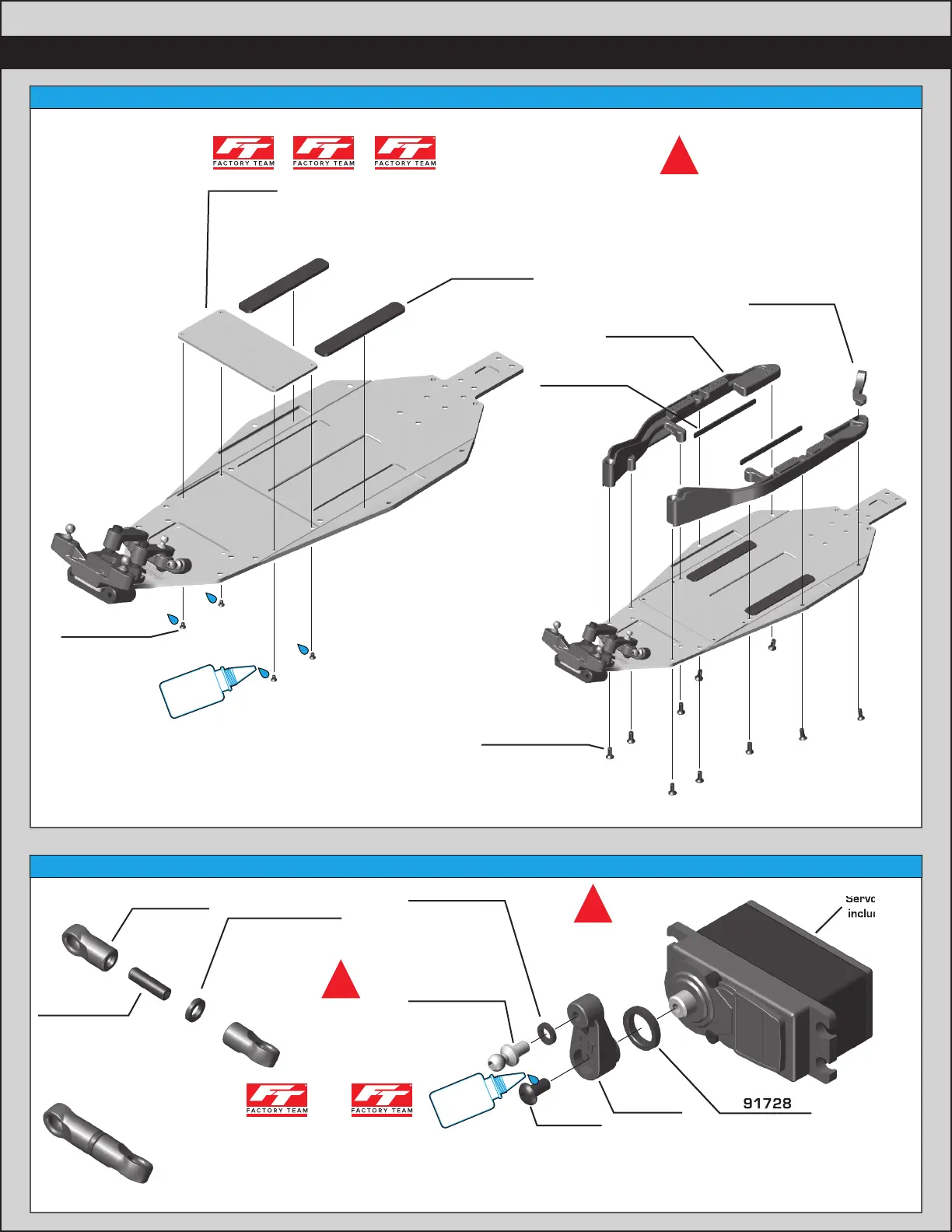

:: :: Bag 2 -Bag 2 - Step 2 Step 2
:: :: Bag 2 -Bag 2 - Step 3 Step 3
81258
M3x12mm
Set Screw
92419
Steering Link
31382
FT Ballstud
Washer, Aluminum
(1mm)
x2x2
x4x4
91749
M2 x 3mm
FHCS
THREAD
LOCK
#1596
23T: Sanwa/ KO/ JR / Spektrum
24T: Hitec
25T: Reedy/ Futaba/Savox /ProTek / MKS
91728
Servo Horn
Ring
Servo not
included!
91988
B6.4 Battery
Foam
x10x10
25201
M3 x 8mm
FHCS
92401
Side Rails
(L & R)
91988
B6.4 Battery
Foam
91728
Servo not
included!
31284
8mm Ball Stud,
Long
31382
FT Ballstud
Washer,
Aluminum
(1mm)
31531
M3 x 6mm
BHCS
91728
Servo
Horn,
15.5mm
91978
Fan Mount
THREAD
LOCK
#1596
Center the servo horn
on the servo.
!
Tighten the steering
link ball cups all the
way until snug.
91977
FT B6.4
Steel, 33g
91975
FT B6.4
Carbon Fiber,
6.15g
91976
FT B6.4
Aluminum,
11g
1369
FT Aluminum
Clamping Servo
Horn, 23T
15.5mm
1370
FT Aluminum
Clamping Servo
Horn, 25T
15.5mm
!
#91988 Battery Foamis only
needed if your battery is too
short to fi t between the side rails.
!
