Associated Electrics RC10B7D - Page 7

7

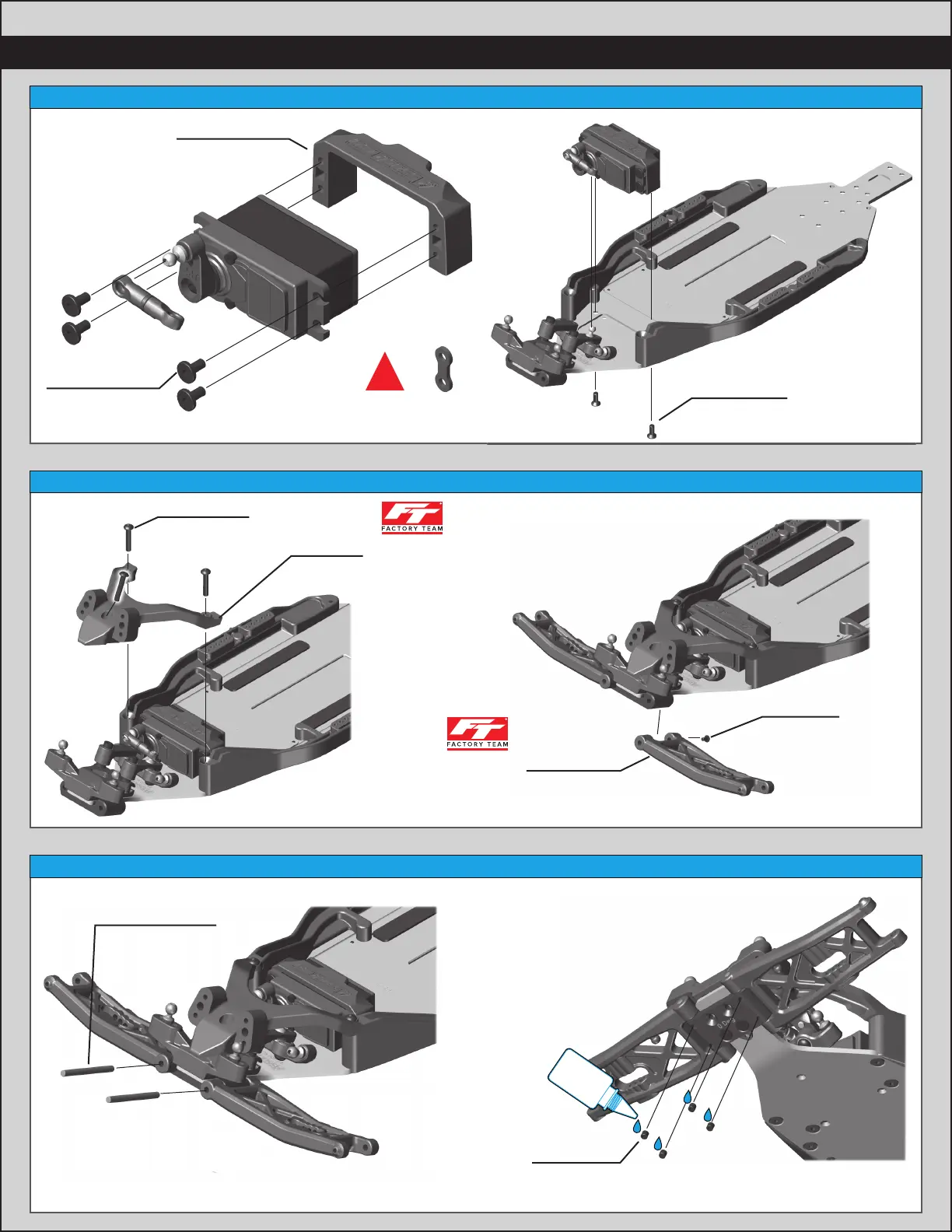

:: :: Bag 2 -Bag 2 - Step 4 Step 4
:: :: Bag 2 -Bag 2 - Step 5 Step 5
:: :: Bag 2 -Bag 2 - Step 6 Step 6
31510
M2 x 4mm
BHCS
92410
Front Arms,
B7
x2x2
Build 2 (1 left, 1 right)
92496
Front Hinge Pin
(Inner, 3x34mm)
x2x2
!
#91728 - Servo Spacers
are not required for most servos.
41089
M3 x 6mm LP
SHCS
92418
Servo Mount
x4x4
89203
M3 x 16mm
BHCS
x3x3
25225
M3 x 3mm
Set Screw
x4x4
THREAD
LOCK
#1596
25202
M3 x 10mm
FHCS
x2x2
92403
Top Plate,
B7
92404
Carbon
Top Plate,
B7
92411
Carbon
Front Arms,
B7
