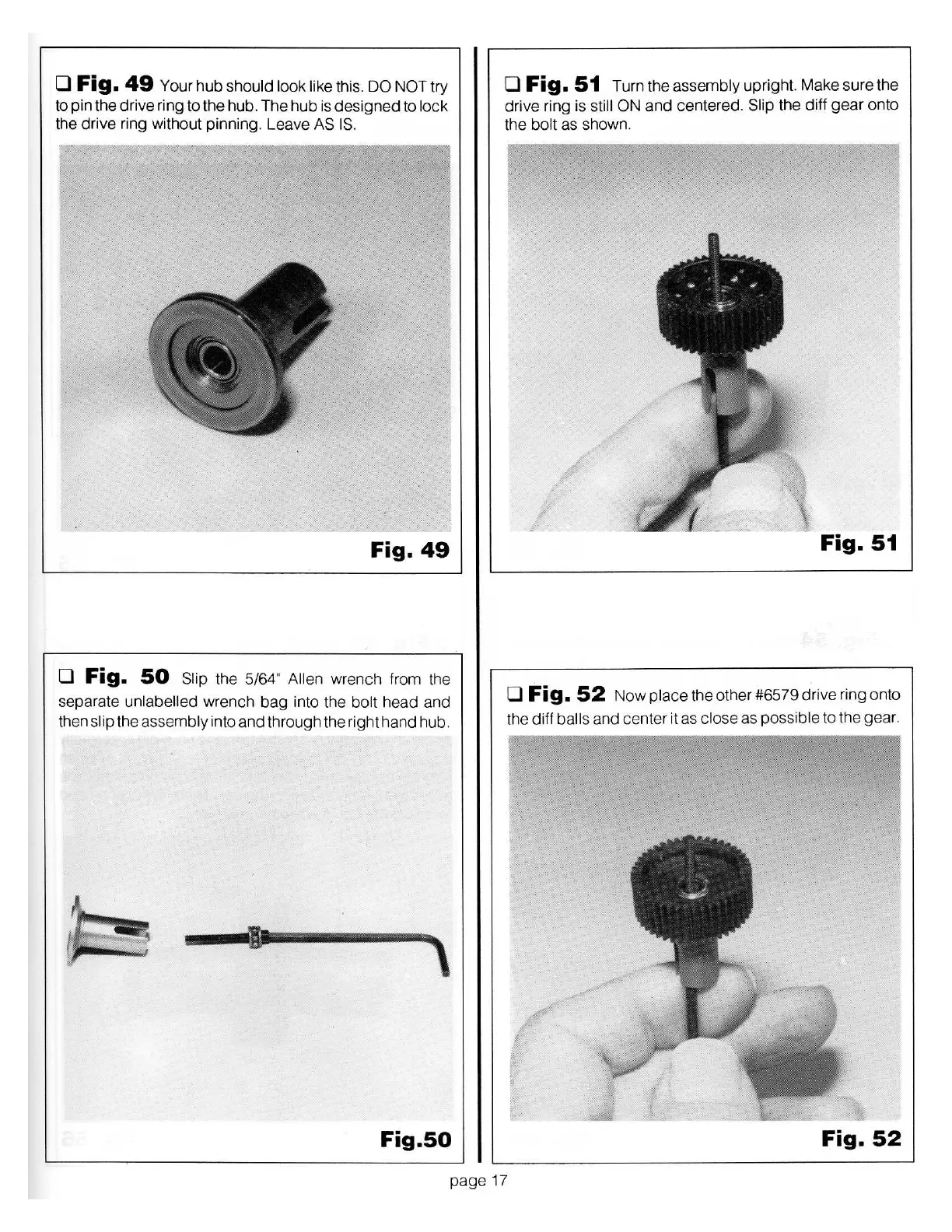

Fig.
49
Your
hub
should look like
this.
DO
NOT
try
to
pin
the
drive
ring to the hub.
The
hub
is desig
ned
to
lock
the drive ring without pinning. Leave AS I
S.
Fig.
49
0
Fig.
50
Slip
the 5/64"
Allen wrench from the
separate
unlabelled
wrench
bag
into the
bolt
head and
then slip
the
assemb
ly
into and through the right hand
hub
.
•
'
Fig.50
page
17
0
Fig.
51
Turn the
assembly
upright.
Make
su
re the
drive
ring is
still ON
and
ce
ntered.
Slip
the
diff
gear
onto
the
bolt
as
shown.
Fig.
51
0
Fig.
52
Now
place
the other #6579 drive ring onto
the diff
balls
and center it as close as
possible
to the
gear
.
Fig.
52
