0

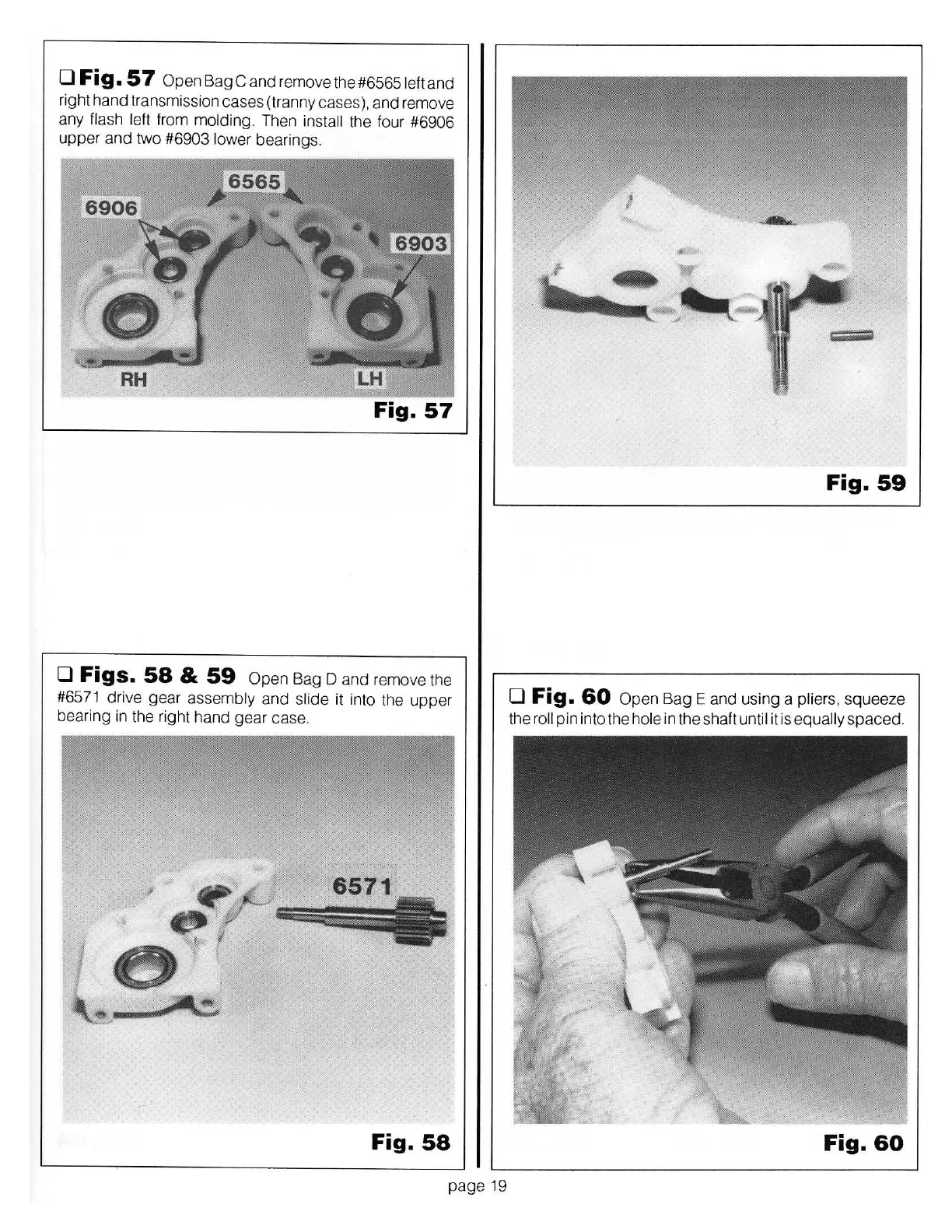

Fig.
57
Open
Bag
C and remove the #6565 left and
right hand transmission cases (tranny cases), and remove
any flash left from molding. Then install the four
#6906
upper and t
wo
#6903
lower bearings.
Fig.
57
0
Figs.
58
&
59
Open Bag D and remove the
#6571 drive gear assembly and slide it into the upper
bearing in the right hand gear case.
Fig.
58
page 19
Fig.
59
0
Fig.
60
Open
Bag
E and using a pliers, squeeze
th
e roll pin into the hole in
th
e shaft until it is
eq
ually spaced.
Fig.
60
