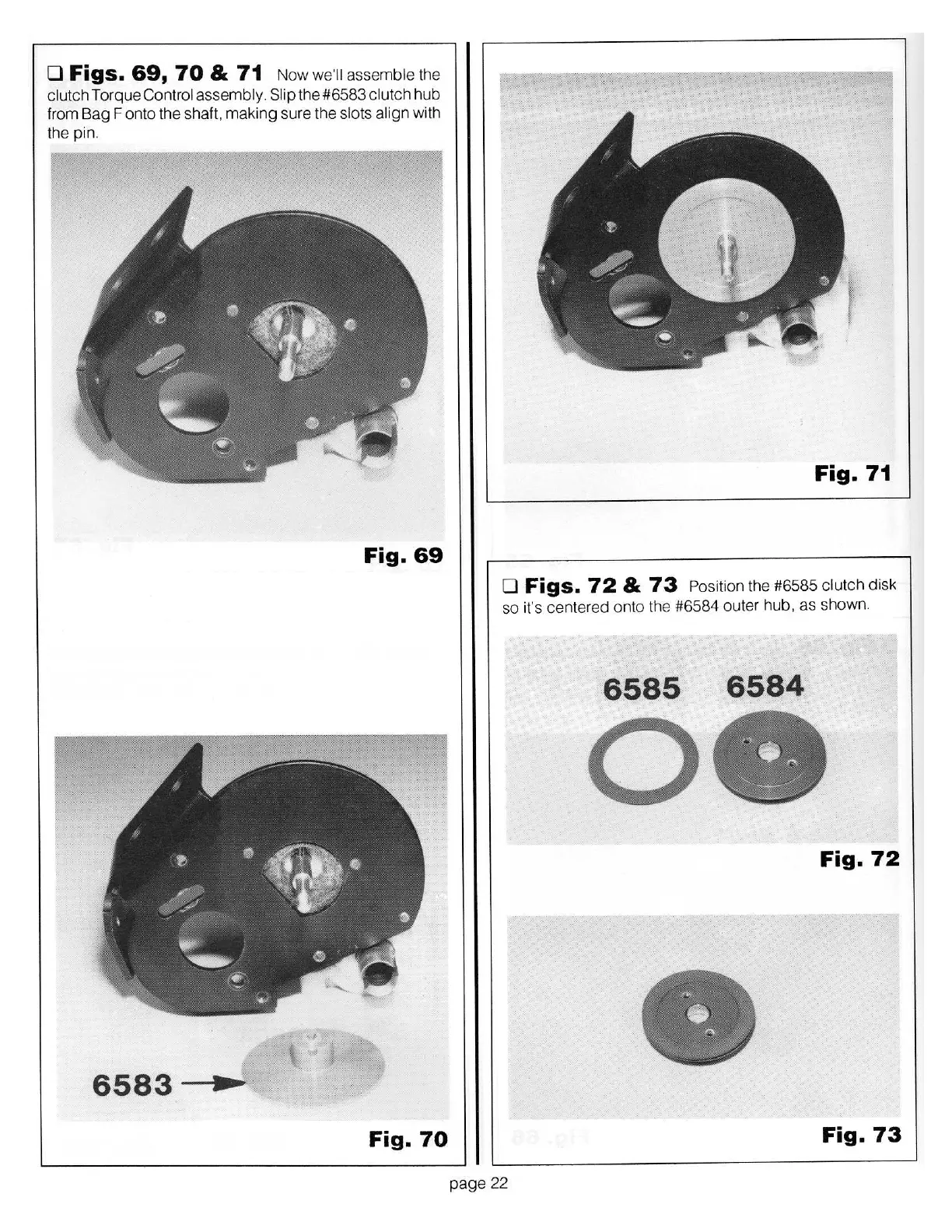

Figs.
69,
70
&
71
N
ow
we
'll assemble
the
clutch Torque Control assembly. Slip
the #6583
clutch
hub
from
Bag
F onto the shaft, making sure the
slots align
with
the pin.
Fig.
69
6583
•
Fig.
70
Fig.
71
0
Figs.
72
&
73
Position
the #6585
clut
ch
disk
so
it's
cen
tered onto the #6584
ou
ter
hub
.
as
shown.
6585
6584
Fig.
73
