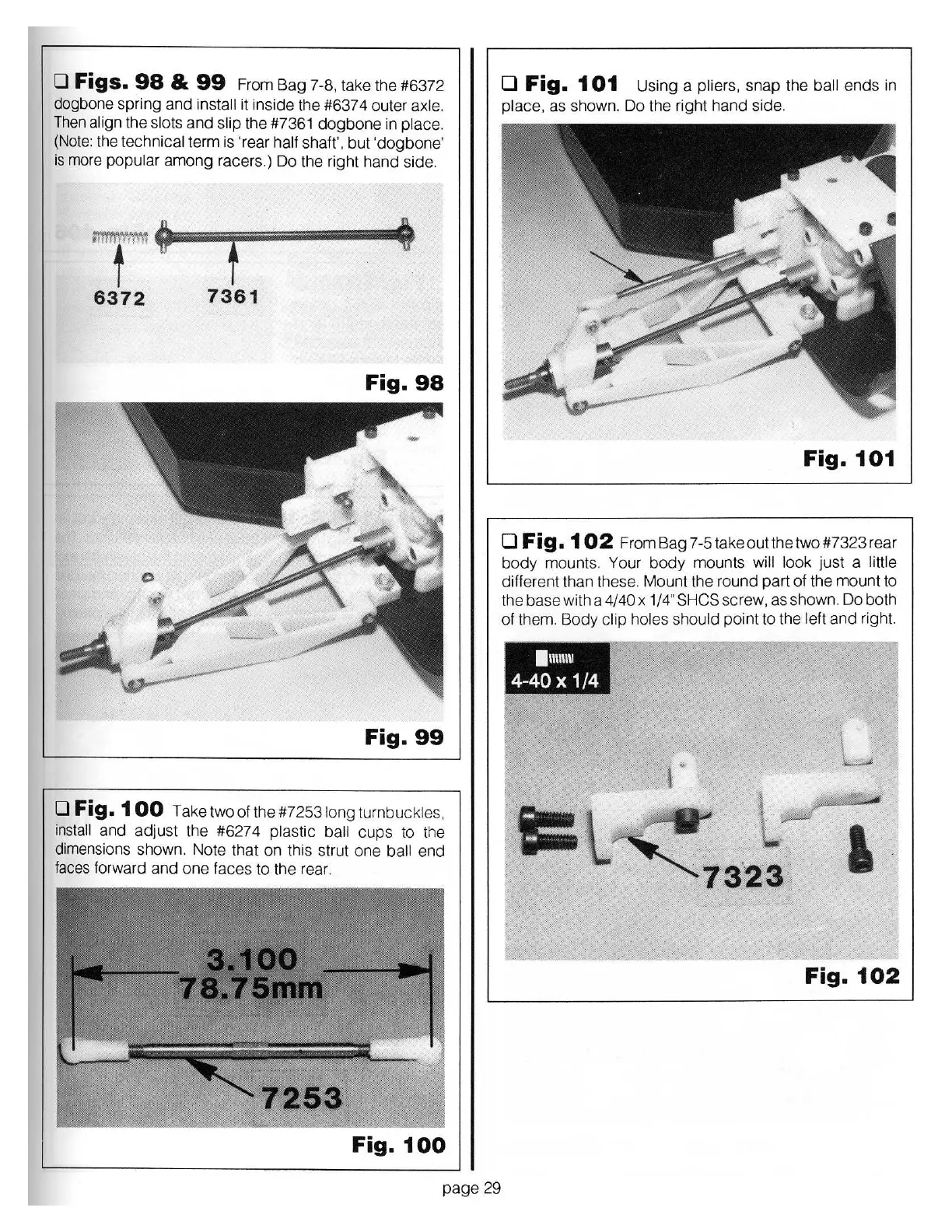

0 Figs.
98
&
99
From Bag 7-8, take the #6372
dogbone spring and install it inside the #637 4 outer axle.
Then
align the slots and slip the #7361 dogbone in
place
.
(Note:
the technical term is 'rear half shaft', but 'dog bone'
is
more popular among racers.) Do the right hand side.
T• f
6372
.
7361
Fig.
98
Fig.
99
0 Fig. 1
00
Take two of the #72531ong turnbuckles,
install and adjust the #627 4 plastic ball cups to the
dimensions shown. Note that
on
this strut one ball end
faces forward and one faces to the rear.
page 29
0
Fig.
1
01
Using a pliers, snap the ball ends in
place, as shown. Do the right hand
side
.
Fig.
101
0
Fig.1
02
FromBag7-5takeoutthetwo#7323rear
body mounts. Your
body
mounts will look just a little
different than these. Mount the round part
of
the mount to
the base with a 4/40 x 1/4" SHCS screw, as shown.
Do
both
of
them. Body clip holes should point to the left and right.
lllll\l\1
4-40 X 1/4
Fig.
102
