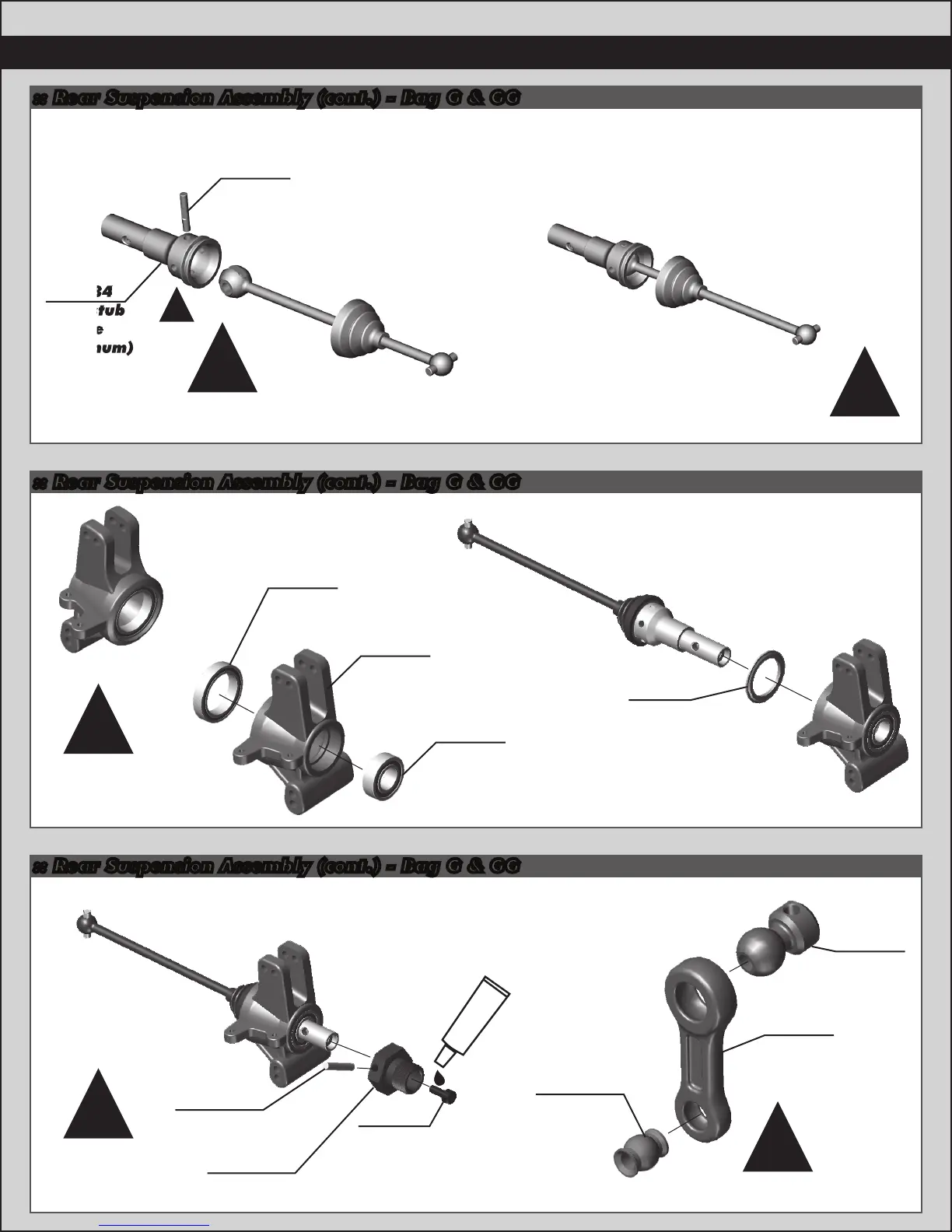

:: Rear Suspension Assembly (cont.) - Bag G & GG
:: Rear Suspension Assembly (cont.) - Bag G & GG
:: Rear Suspension Assembly (cont.) - Bag G & GG
89537
RC8.2
swaybar
ball joint
89536
RC8.2
swaybar
pivot ball
89537
RC8.2
swaybar
drop link
Build Two!
!
89107
Bearing
shield
89284
Rear stub
axle
(aluminum)
Build right
and left
sides!
Build right
and left
sides!
Build Two!
!
!
!
89284
Rear stub
axle
(aluminum)
89105
CVA pin
(fr/rr)
89162
15x21mm
bearing
89033
hub
carrier
25236
8x16mm
bearing
89223
3x8mm
shcs
89095
Wheel hex
(aluminum)
89096
Wheel hex
pins
#1596
thread lock
Axle has additional holes
for crosspin to extend
the life of the Axle.
!
!
