Associated Electrics RC8.2e - Wing and Rear Clip Installation; Wing Assembly (Bag H)

20

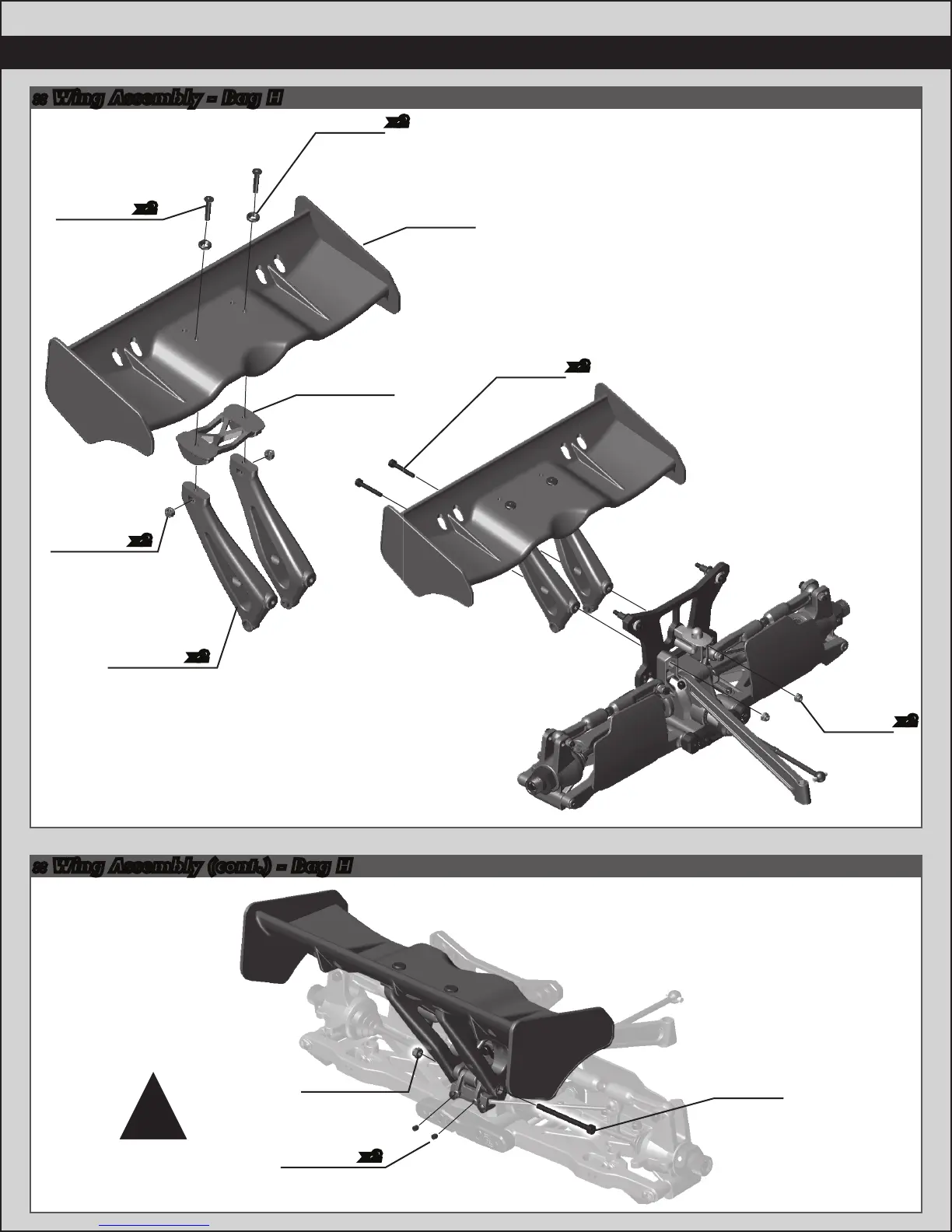

:: Wing Assembly - Bag H
:: Wing Assembly (cont.) - Bag H
89540
RC8.2
wing
mounts
25215
M3
locknut
25215
M3
locknut
25204
3x16mm
fhcs
89540
RC8.2
Wing mount
upper brace
89304
JC Illuzion
wing
(black)
89229
Blue
countersunk
washer
25192
3x20mm
shcs
25215
M3
locknut
89228
3x40mm
shcs
x2
x2
x2
x2
x2
x2
89219
3x5mm
setscrew
x2
Tighten screws to
remove free play but
ensure some
movement.
!
