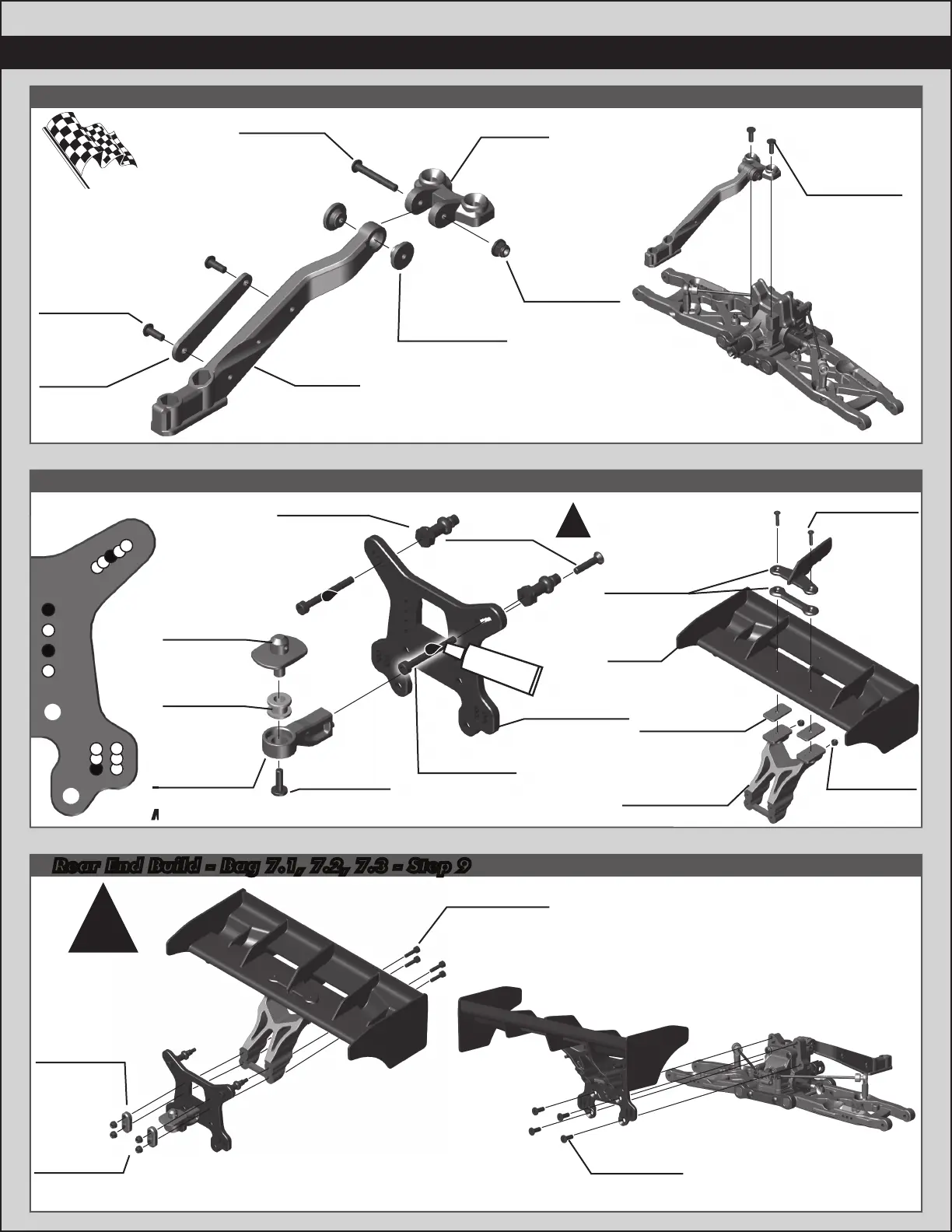

:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 9
:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 8Rear End Build - Bag 7.1, 7.2, 7.3 - Step 8
:: :: Rear End Build - Bag 7.1, 7.2, 7.3 - Step 7Rear End Build - Bag 7.1, 7.2, 7.3 - Step 7
Kit Setup:
89227
M3x28mm
SHCS
81508
Shock
Bushing
81525
Rear Chassis
Brace Insert
x2x2
x2x2
x2x2
#1596
thread lock
41090
M3x10mm
LP SHCS
81524
Body Post
Mount, Rear
81558
Body Post
Grommet
81524
Body Post,
Rear
81634
B4.1 Rear
Shock Tower,
Aluminum,
36.5
89208
M3x14mm
FHCS
81552
Wing Mount
89208
M3x14mm
FHCS
81552
Wing Angle
Shim, -2
81553
Wing
Buttons
81553
Wing,
Black
25215
M3
Locknut
x2x2
x2x2
x2x2
x2x2
25189
M3x22mm
BHCS
25612
M3
Locknut
W/Flange
81525
Chassis
Brace
Mount
81525
Chassis
Brace,
Rear
89214
M4x12mm
FHCS
x2x2
25215
M3
Locknut
81552
Wing
Mount
Adapter
x4x4
x2x2
89214
M4x12mm
FHCS
89454
M3x12mm
SHCS
x4x4
x4x4
CHOOSE ONE
Fin adds straight -line
stabilization.
Button adds agility
in corners.
!
Racer’s Tip:
Tune the
rear end for
more flex
with#81562 ball
end insert here
Refer to previous
step (8) for wing
height position
!
31532
M3x8mm
BHCS
81525
Chassis
Brace
Insert
x2x2
Mount, Rear
1
4
2
5
3
6
2
1
3
4
5
