Associated Electrics RC8B4.1 - Clutch; Filter Build; Clutch Assembly and Shimming

23

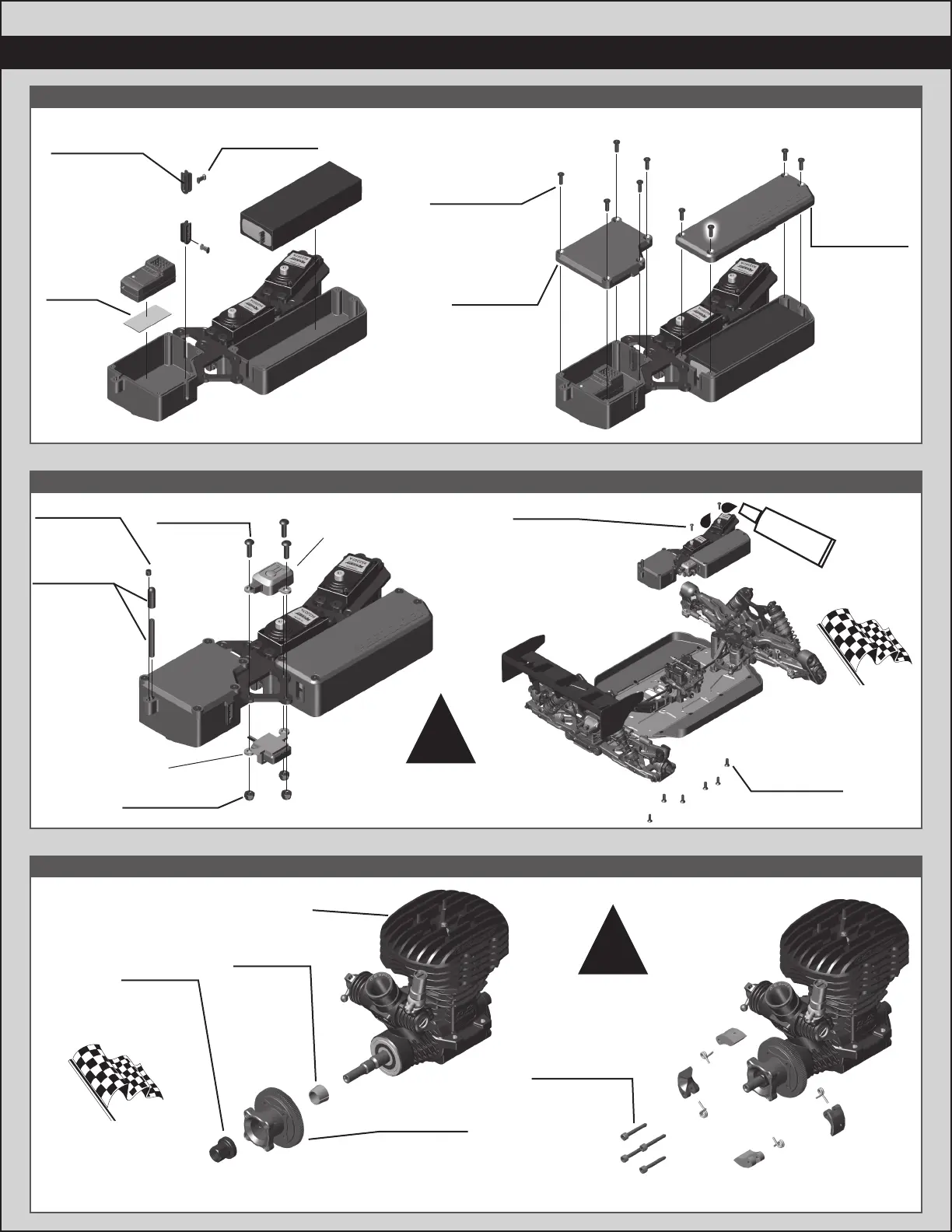

:: :: Radio TrayRadio Tray Build Build - - Bag Bag 11.111.1 - Step 3- Step 3
:: :: Radio TrayRadio Tray Build Build - - Bag Bag 11.111.1 - Step 4- Step 4
:: :: Clutch / Filter BuildClutch / Filter Build - - Bag Bag 12.1, 12.212.1, 12.2 - Step 1- Step 1
Engine
not included!
81373
Clutch
Shoe Pins
x4x4
81370
Flywheel,
4-Shoe
81371
Flywheel
Collet
81372
Flywheel
Nut
See next step for
clutch shoe/spring
installation order!
!
Racer’s Tip:
Use a small amount
of blue threadlock on
the crank, do not get
it into the bearing!
6727
Servo
Tape
6338
Antenna
Tube and
Cap
25225
3x3mm
Set Screw
Receiver
not included!
Receiver Battery
not included!
89214
4x12mm
FHCS
x6x6
Transponder
not included!
On/Off switch
not included!
42007
Receiver
Box
Grommet
x2x2
42007
Grommet
Plug
x2x2
25211
3x10mm
FHCS
#1596
thread lock
Racer’s Tip:
Center servos
before horn
installation!
81432
Battery
Box, Top
25211
3x10mm
BHCS
25215
M3 Locknut
x3x3
x2x2
x3x3
31448
2.5x8mm
FHCS
81432
Receiver
Box, Top
x9x9
The switch and
transponder
positions can be
reversed if desired
!
