Associated Electrics RC8B4.1 - Shocks Build; Front and Rear Shock Build

7

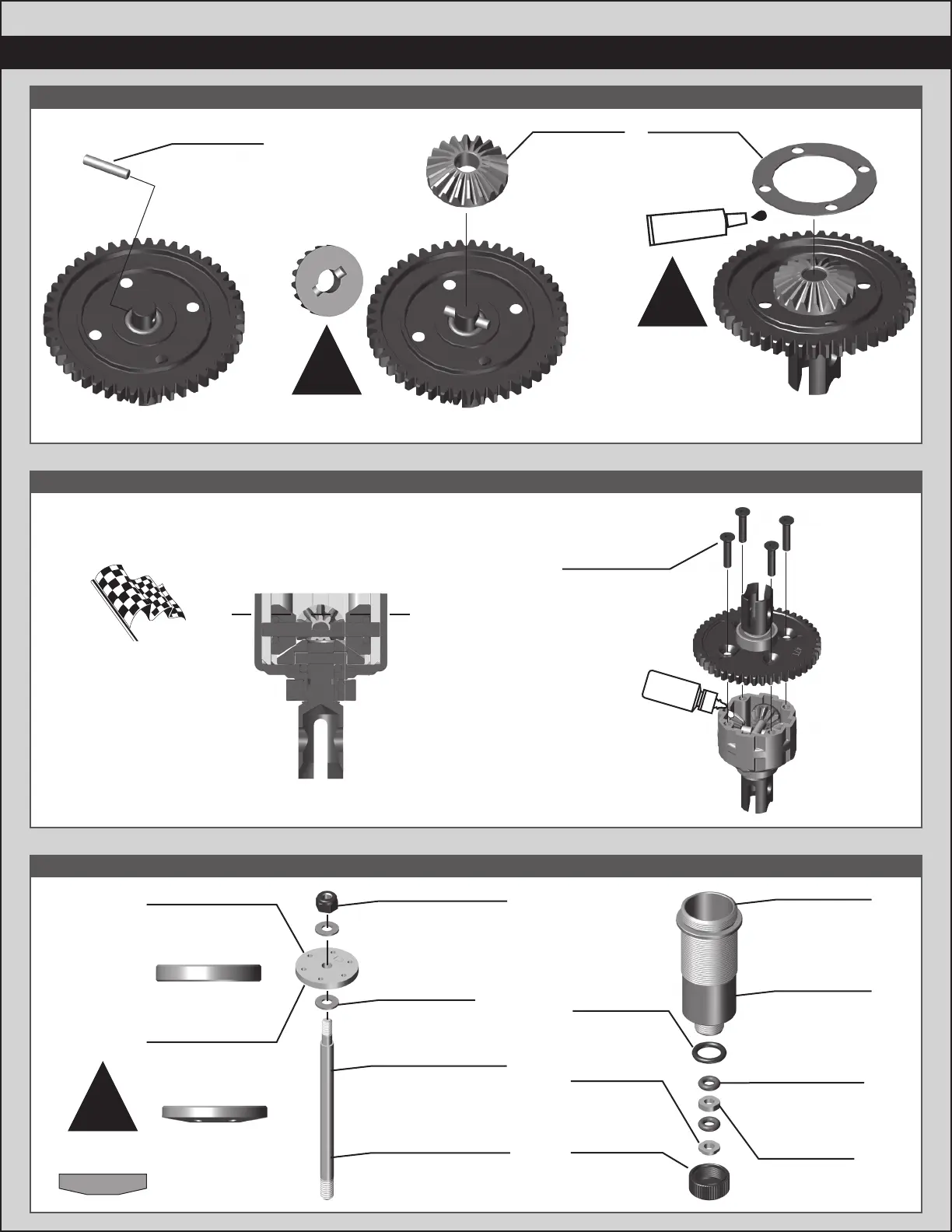

:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 7 - Step 7
:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 8 - Step 8
25202
M3x10mm
FHCS
x4x4
Racer’s Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
Diff Fluid
Center Diff Fluid:
10,000cst #5455
:: Shocks Build:: Shocks Build - - Bag 2.1 Bag 2.1 - Step 1- Step 1
81186
Shock
O-Ring
81185
O-Ring Hat
Bushing
81188
Shock Body
Seal
Retainer
81597
FT Shock Piston
(6x1.4 flat)
Front
81598
FT Shock Piston
(6x1.5 tapered)
Rear
x2x2
81172
TiN Shock Shaft,
3.5x33.5mm
(Front)
81185
O-Ring
Spacer
81162
Shock Body,
26.5mm
(Front)
81163
Shock Body,
36.5mm
(Rear)
81185
Shock Body
O-Ring
81173
TiN Shock Shaft,
3.5x42.5mm
(Rear)
89278
2.6x6mm
Washer
89215
2.5mm Shock
Piston Locknut
x2x2
Install pistons
taper down
!
Align pin with
groove in sun gear
!
81384
Diff
Gasket
Racer’s Tip:
Use black grease
(#6588) to coat
the back side of the
diff gasket (i.e. not
the entire gasket)
before installation!
#6588
black grease
!
81380
Pin
2.5x12mm
81380
Diff Sun
Gear, 20T,
HTC
