Associated Electrics RC8B4.1e Team Kit - Differential Assembly - Front and Rear (Steps 1-3)

:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag 1.1, 1.2 - Step 2- Bag 1.1, 1.2 - Step 2
:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag 1.1, 1.2 - Step 3- Bag 1.1, 1.2 - Step 3
5

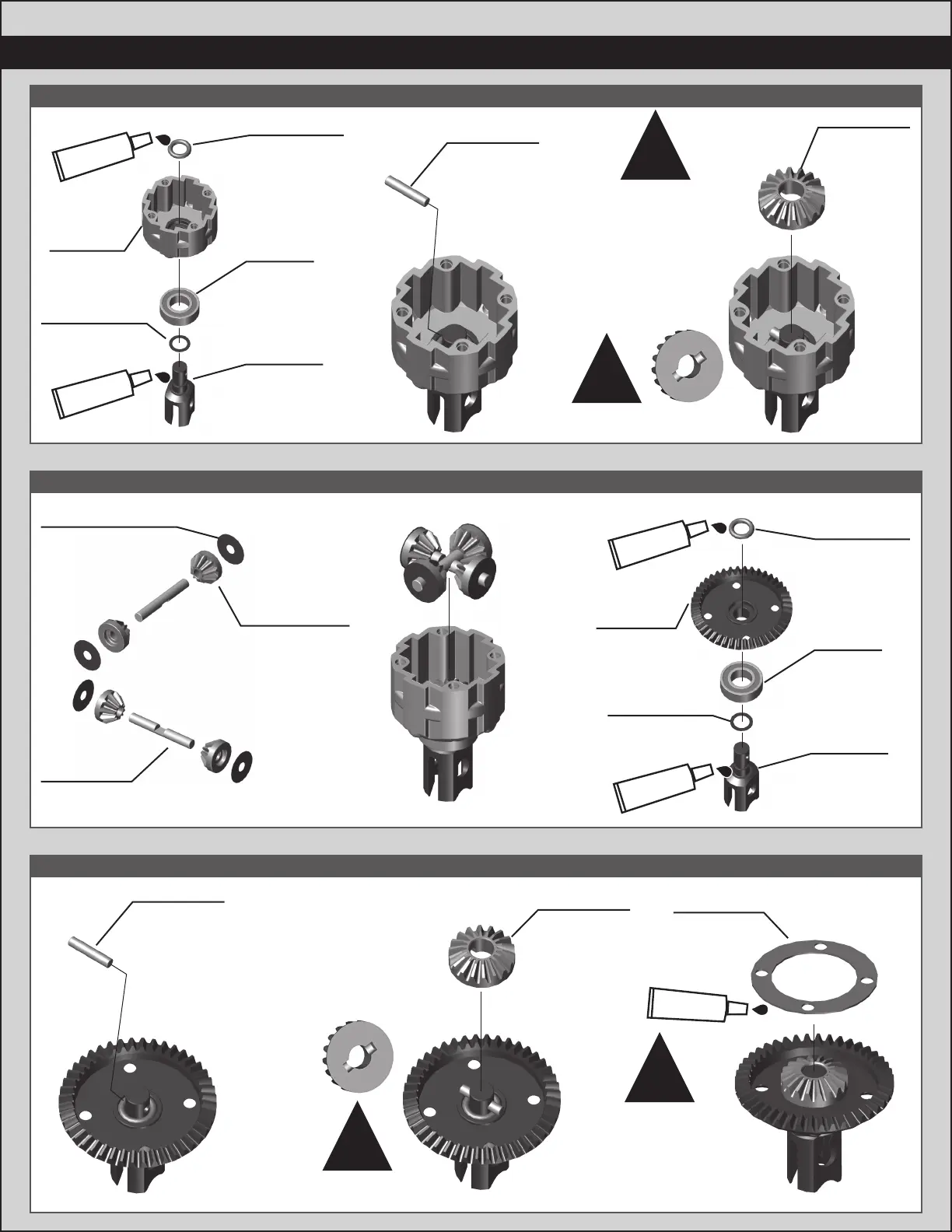

:: Differential Build (Front and Rear) - Bag 1.1, 1.2 - Step 1:: Differential Build (Front and Rear) - Bag 1.1, 1.2 - Step 1
1/24
81383
Diff Planet
Gear, 10T,
LTC
81383
Diff
Crosspin
81383
Diff Shim
3.6x12x0.12mm
x4x4
x4x4
x2x2
#6588
black grease
#6588
black grease
Align pin with
groove in sun gear
Center Diff HTC
Gearset is bagged
separately.
DO NOT MIX!
Save 13.5 shims
until install into
gearbox
!
!
81383
Pin
2.5x12mm
81383
Diff Sun
Gear, 18T,
LTC
81012
17mm
Outdrive
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81379
Diff
Case
81385
Outdrive
O-Ring
5.8x1.9mm
#6588
black grease
#6588
black grease
81012
17mm
Outdrive
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81468
Diff Ring
Gear,
44/13 Set
81385
Outdrive
O-Ring
5.8x1.9mm
Align pin with
groove in sun gear
!
81380
Pin
2.5x12mm
81383
Diff Sun
Gear, 18T,
LTC
81384
Diff
Gasket
#6588
black grease
!
Racer’s Tip:
Use black grease
(#6588) to coat
the back side of the
diff gasket (i.e. not
the entire gasket)
before installation!
