Associated Electrics RC8B4.1e Team Kit - Differential Assembly - Front;Rear & Center (Steps 4-6); Front;Rear Differential Completion; Center Differential Initial Build

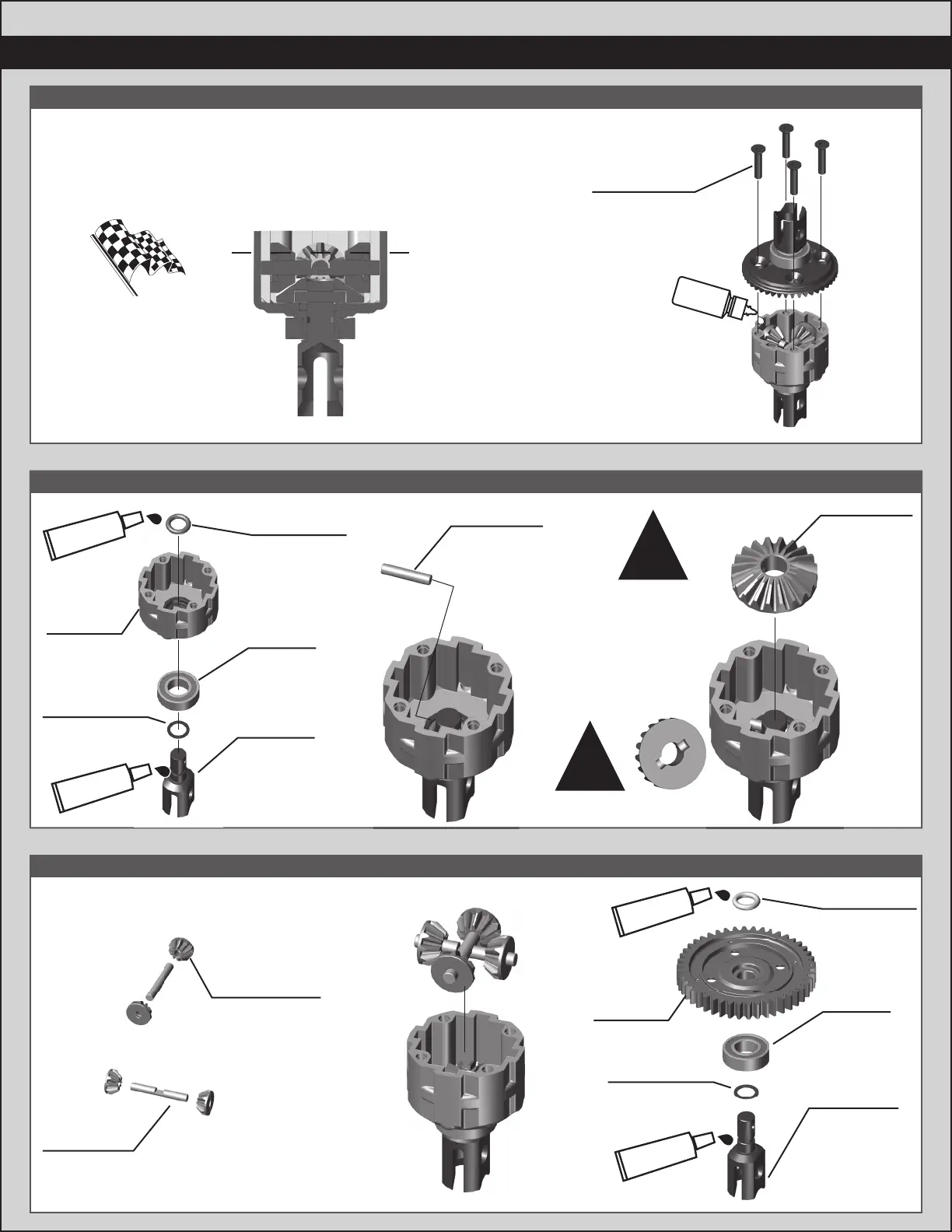

:: :: Differential Build Differential Build (Front and Rear) (Front and Rear) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 4 - Step 4
:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 5 - Step 5
:: :: Differential Build Differential Build (Center) (Center) - Bag - Bag 1.1, 1.21.1, 1.2 - Step 6 - Step 6
Racer’s Tip:
Fill diff above the cross
pins, below the planet
gears as shown.
6
#6588
black grease
#6588
black grease
81012
17mm
Outdrive,
Center Diff
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81385
Outdrive
O-Ring
5.8x1.9mm
81389
Spur Gear,
Plastic, 46T
25202
M3x10mm
FHCS
x4x4
Diff Fluid
Front Diff Fluid:
15,000cst #5447
Rear Diff Fluid:
10,000cst #5455
81380
Diff Planet
Gear, 10T,
HTC
81380
Diff
Crosspin
x4x4
x2x2
#6588
black grease
#6588
black grease
81380
Pin
2.5x12mm
81012
17mm
Outdrive,
Center Diff
81381
Diff Shim
6x8x0.20mm
91564
8x16x5
Bearing
81379
Diff
Case
81385
Outdrive
O-Ring
5.8x1.9mm
81380
Diff Sun
Gear, 20T,
HTC
Use HTC
Gearset for
center
differential!
!
Align pin with
groove in sun gear
!
