Associated Electrics RC8B4.1e Team Kit - Turnbuckle Assembly - Steering and Rear Hub; Steering Turnbuckle Construction; Rear Hub Turnbuckle Assembly

9

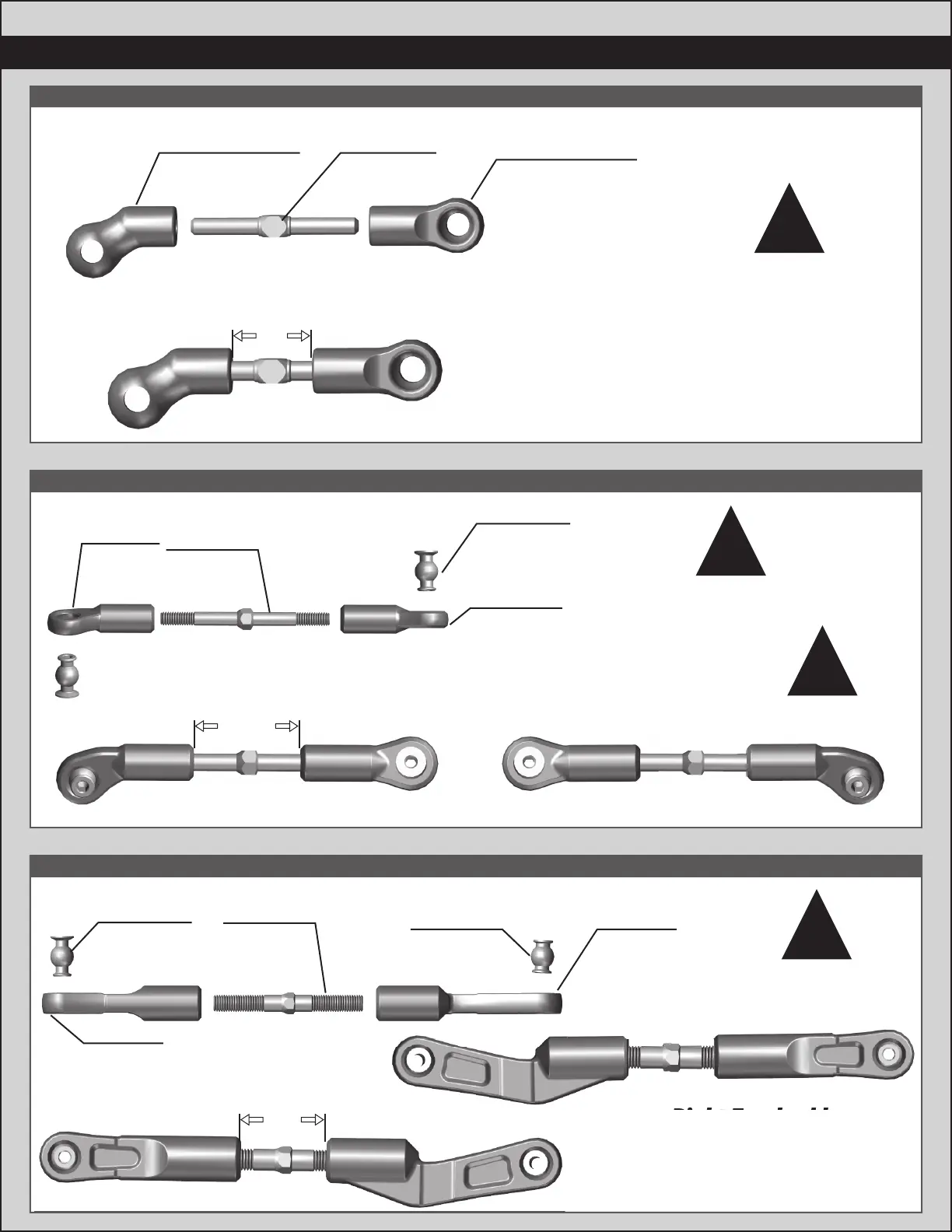

:: :: Turnbuckles BuildTurnbuckles Build - - Bag Bag 3.13.1- Step 1- Step 1
:: :: Turnbuckles BuildTurnbuckles Build - - Bag Bag 3.13.1 - Step 2- Step 2
:: :: Turnbuckles BuildTurnbuckles Build - - Bag Bag 3.13.1 - Step 3- Step 3
Set aside until page 22
!
Rear Hub Turnbuckle
Steering Turnbuckle
Steering Servo Turnbuckle
Set aside until page 15
Note the direction of
turnbuckle ball
!
!
x2x2
81562
Turnbuckle
Ball,
Shouldered
81521
Rod End,
4mm,
Offset
81521
Rod End,
4mm
89526
4x50mm
Turnbuckle
24.20mm (0.952”)
Left Turnbuckle Right Turnbuckle
Set aside until page 19
!
81562
Turnbuckle
Ball
81521
Rod End,
5mm,
Offset
81521
Rod End,
5mm
81562
Turnbuckle
Ball,
Shouldered
89299
Steel
Turnbuckle,
5x44mm
11.50mm (0.45”)
6260
25.40mm
Turnbuckle
81521
Steering Link
Rod End, Short
81521
Steering Link
Rod End, Short
Curved
19.70mm (0.775”)
Left Turnbuckle
Right Turnbuckle
Right Turnbuckle
