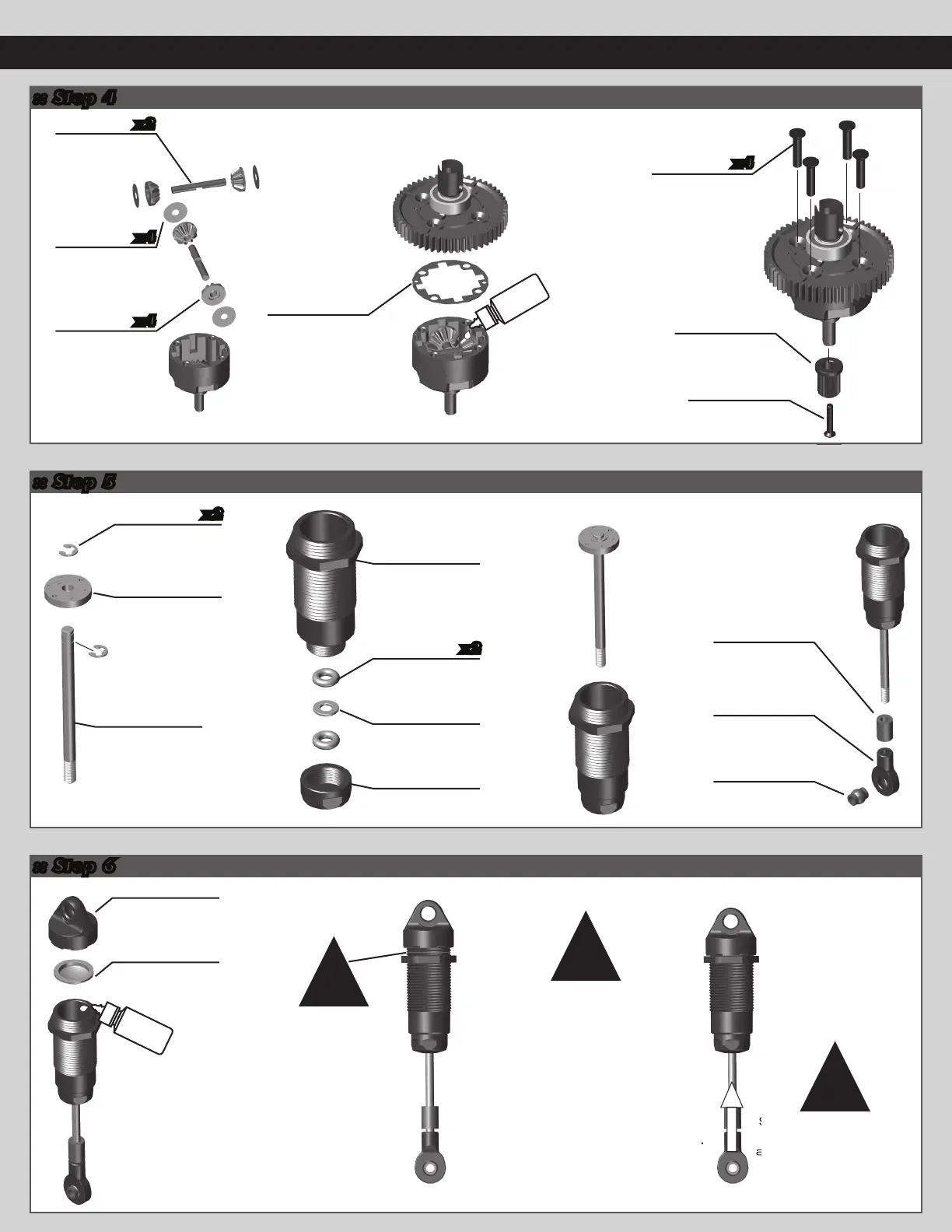

Associated Electrics Rival MT10 - Step 4 Assembly

:: Step 6
:: Step 5
7
:: Step 4
Some residual shock
fluid may appear
around the shock cap
after the first few
runs as a result of
bleeding.
Leave a gap when
installing the
shock cap.
Compress shock shaft half way.
Let shock fluid bleed from cap,
then tighten cap.
For less rebound, compress
shock shaft farther before
tightening the shock cap.
For more rebound, do not
compress shock shaft as far
before tightening the shock cap.
!
!
!
shock
fluid
Front Shock Fluid:
40wt #5423
Rear Shock Fluid:
40wt #5423
Some residual shock
around the shock cap
before tightening the shock cap.
x2
x2
25831
E-Clip,
2.5mm
25831
Shock
O-Ring
25831
Shock Seal
Bushing
25825
Shock Bottom
Cap
25825
Shock Cap
25831
Shock
Bladder
25825
Shock Body
25825
Shock Piston
25826
Shock Shaft
(Front - Short)
(Rear - Long)
25812
Center Diff
Cross Pin
25812
PLanetary
Gear Shim
25812
Center Diff
Planetary
Gear
25811
Center Diff
Gasket
25812
Input Shaft
Spline
31448
2.5x8mm
FHCS
25828
Pivot Ball,
Long
25825
Shock
Eyelet
25825
Uptravel
Spacer
89208
3x14mm
FHCS
x4
x2
x4
x4
diff
fluid
Center Diff Fluid:
100k cst #5459
