CHANGINGTHETYPEOFTEST
ADDING NEW TESTS
From the Main Menu screen, press the “Setup Tests” soft key.
On the Setup Tests screen, the test and step number will be highlighted.
Press the “Add” soft key and specify the type of test with the soft key options given
(ACW, DCW, IR, Continuity for 8104 and Run Test or Line Leakage Test for 8105
and 8106).
Once the test has been added, the parameters for the chosen test type will appear.
Use the soft keys to edit parameters on the right side of the screen (examples:
frequency, arc detect, continuity and DUT output).
Use the arrows (up, down, left, right) to scroll between test parameters on the left side
of the screen (examples: voltage, Hi-Limit T, Lo-Limit T, dwell time, ramp time, etc.).
Use the number keypad to change a parameter value. Once the desired value has
been entered, press exit to go back to the Setup Tests screen.
If default parameters are acceptable, press exit to go back to the Setup Tests screen.
To save the test program, press Exit from the Setup Test screen. You will see the
following prompt. (See Figure 2)
Press EXIT to continue without saving. Press ENTER to save.
Adding multiple tests to the same screen automatically creates a multiple step test
sequence. The tests will run in sequential order unless Single Step control is initiated.
To perform single steps, press the PERFORM TEST soft key from the Main Menu
screen. On the right hand side of the Perform Test screen, there is a selection named
Single Step. Press the Single Step soft key to turn Single Step on. The tests will now
run individually. Press Exit to go back to the Main Menu screen.
5
CHANGING TEST SETTINGS AND DELETING TESTS
Test parameters on OMNIA are fully adjustable. Common parameters that can be
adjusted include voltage, Hi-Limit, Lo-Limit, ramp up, dwell time, ramp down, Hi-Limit R
and Lo-Limit R among others.
From the Main Menu scr
een, pr
ess the “Setup T
ests” soft key.

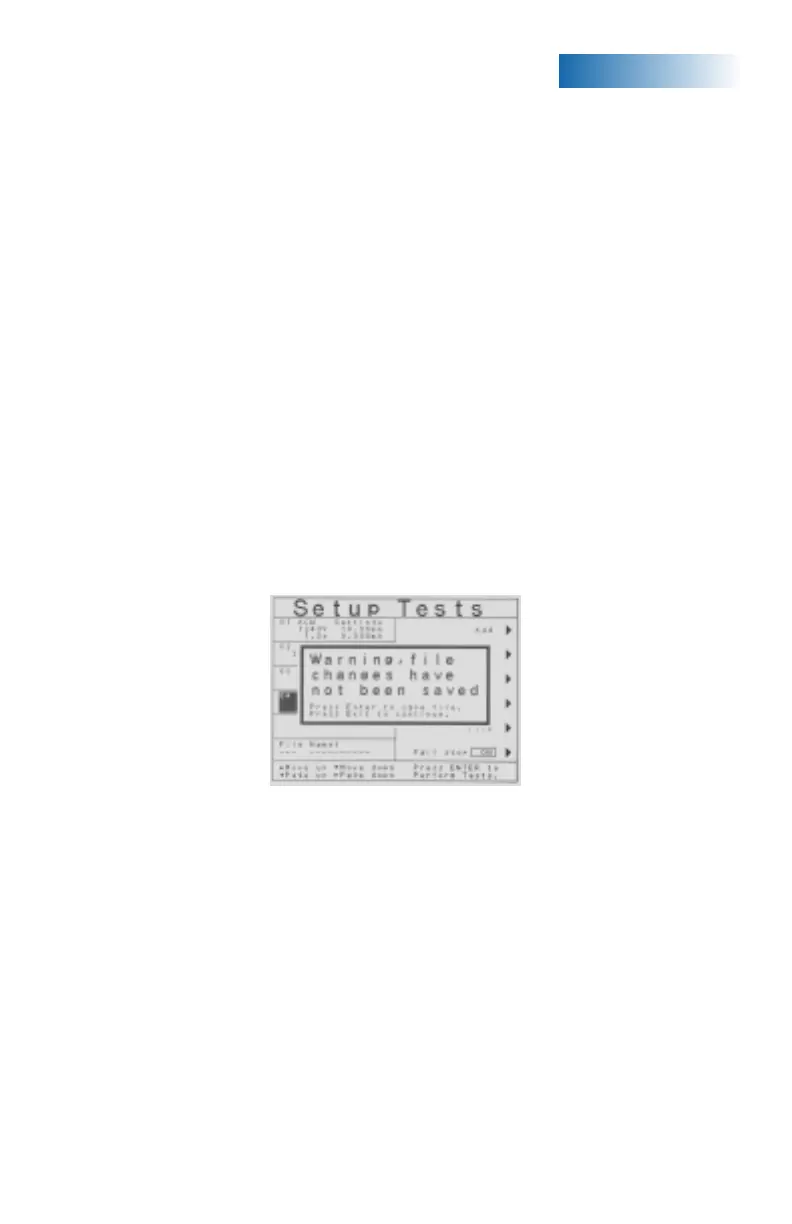

(Figure 2. Setup Tests Prompt Screen)
