BACKPANELCONTROLS

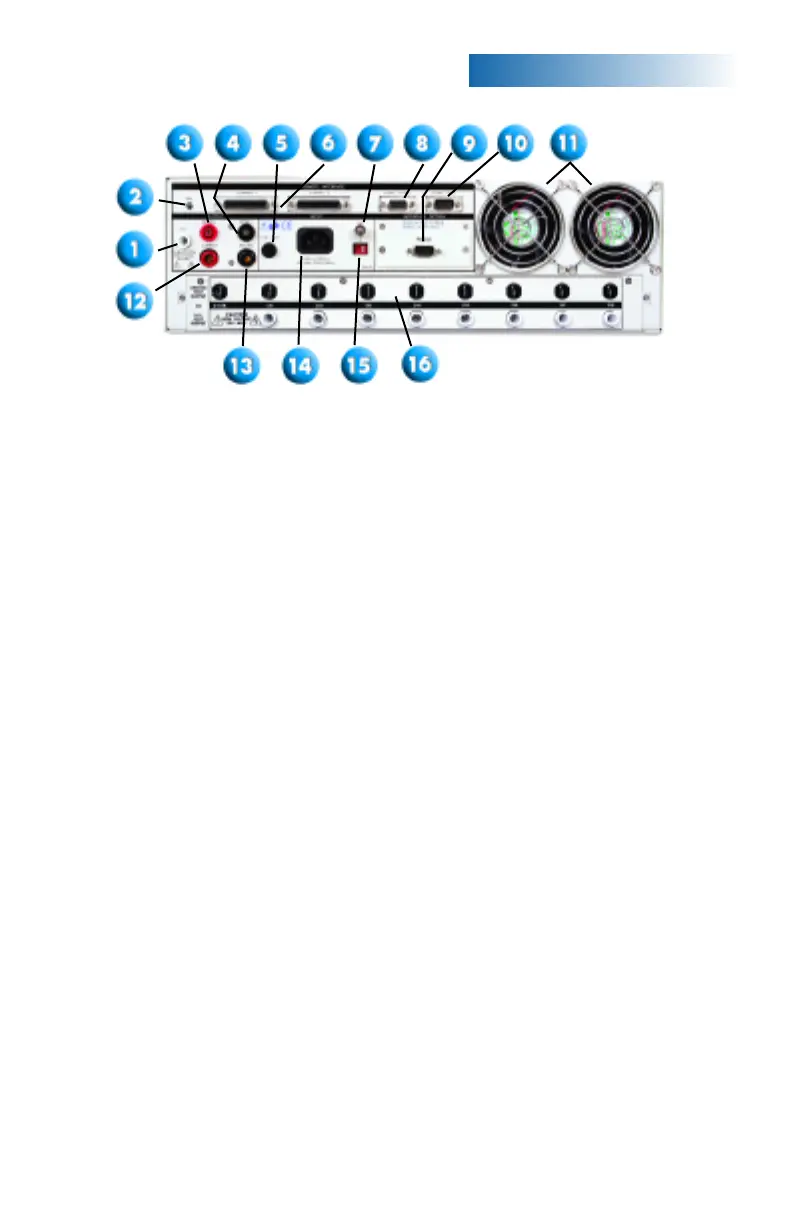

8104 BACK PANEL CONTROLS
1. HIGH VOLTAGE OUTPUT TERMINAL : Connector used to attach the high
voltage test lead, adapter box high voltage lead, or test fixture high voltage
lead to the instrument. The connector is recessed for safety.
2. CALIBRATION BUTTON : Used to put the instrument into calibration mode.
3. SENSE (+) TERMINAL : Connector used to attach the current test lead
or test fixture to the instrument. Provides positive Kelvin voltage sensing for
the instrument.
4. SENSE (-) TERMINAL : Connector used to attach the return test lead
or test fixture to the instrument. Provides negative Kelvin voltage sensing
for the instrument.
5. FUSE RECEPTACLE : Socket for the input power fuse. See operation and
service manual for ratings and replacement instructions.
6. SCANNER INTERFACE : For connection of up to 2 external
scanning matrixes.
7. CHASSIS GROUND (EARTH) TERMINAL : This terminal should be connected
to a good earth ground before operation.
8. REMOTE SIGNAL OUTPUT : 9-pin D subminiature female connector for
monitoring PASS, FAIL and PROCESSING output relay signals.
9. BUS INTERFACE : Standard connector for interconnection of the RS-232
Bus interface. Optional IEEE-488 interface or Ethernet Interface may be
substituted for RS-232.
10. REMOTE SIGNAL INPUT : 9-pin D subminiature male connector for remote
control of TEST, RESET and INTERLOCK functions as well as remote
pr
ogram file selection.
11. THERMAL COOLING FANS : Thermally switched cooling fans.
12. CURRENT OUTPUT TERMINAL : Connector used to attach the high current
output lead, adapter box high current lead, or test fixture high current lead to
the instrument. Provides output current for ground bond and continuity.
