PERFORMINGATEST
8
W
ARNING
: DO NOT TOUCH THE DEVICE UNDER TEST ONCE
THE TEST HAS BEEN STARTED.

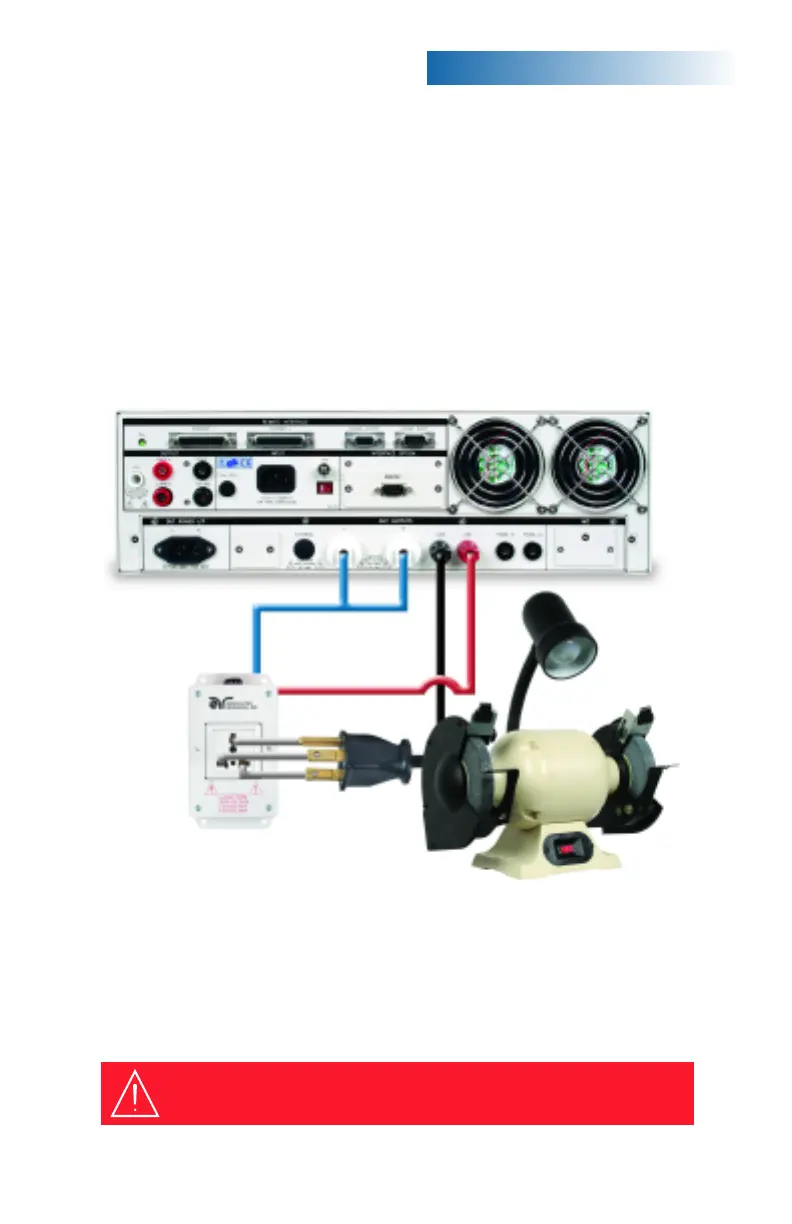

(Figure 5. Adapter Box Connection)
8105, 1806
DUT
RTN
38578
GND
TEST CONNECTIONS (8105 & 8106):
Under the DUT output ports on the back panel, plug the line lead from the adapter
box into the L terminal and the neutral lead into the N terminal.
Next attach the red ground lead from the adapter box
to the GND terminal.
Attach the black case return lead into the case terminal.
Connect the ground return clip to dead metal on the chassis of the DUT.
Plug the line cord to the DUT into the adapter box receptacle.
Only the rear output connections may be used for connecting the adapter box on
the 8105 and 8106 models. (See Figure 5)
L
N
