(A)Emissivity settings The emissivity can be set by clicking on
"Parameters” and select or type in the desired emissivity directly
in the description field. The emissivity value will be transferred
to pyrometer by hitting the "TAB " button.
(B)Response time The desired response time can be chosen in
the panel Parameter by clicking the appropriate list box (as per
the values available in the drop box of response time). This
parameter is use to set the analog response time of pyrometer.
(C)Sub Range User can change the sub range of pyrometer in the
panel Parameter. Sub range must be within the basic range of
pyrometer, the minimum span between higher & lower range is
51. Analog output will be automatically set according to the sub-
range by hitting "TAB" button.
(D)Sensor Type It shows pyrometer sensor type. User can
change sensor type from two color to single color and vice versa
(only applicable with two color pyrometer).
(E)Switch off level% ( for two color pyrometer) The switch of
level is the function that is used to avoid measurement errors
caused by signals, which are too low. Although factory default is
set to 15 %, the switch off limit can be adjusted between 2 and
50%.
(F)Unit User can change the measuring unit of temperature from
“Centigrade" to “Fahrenheit" and vice versa.

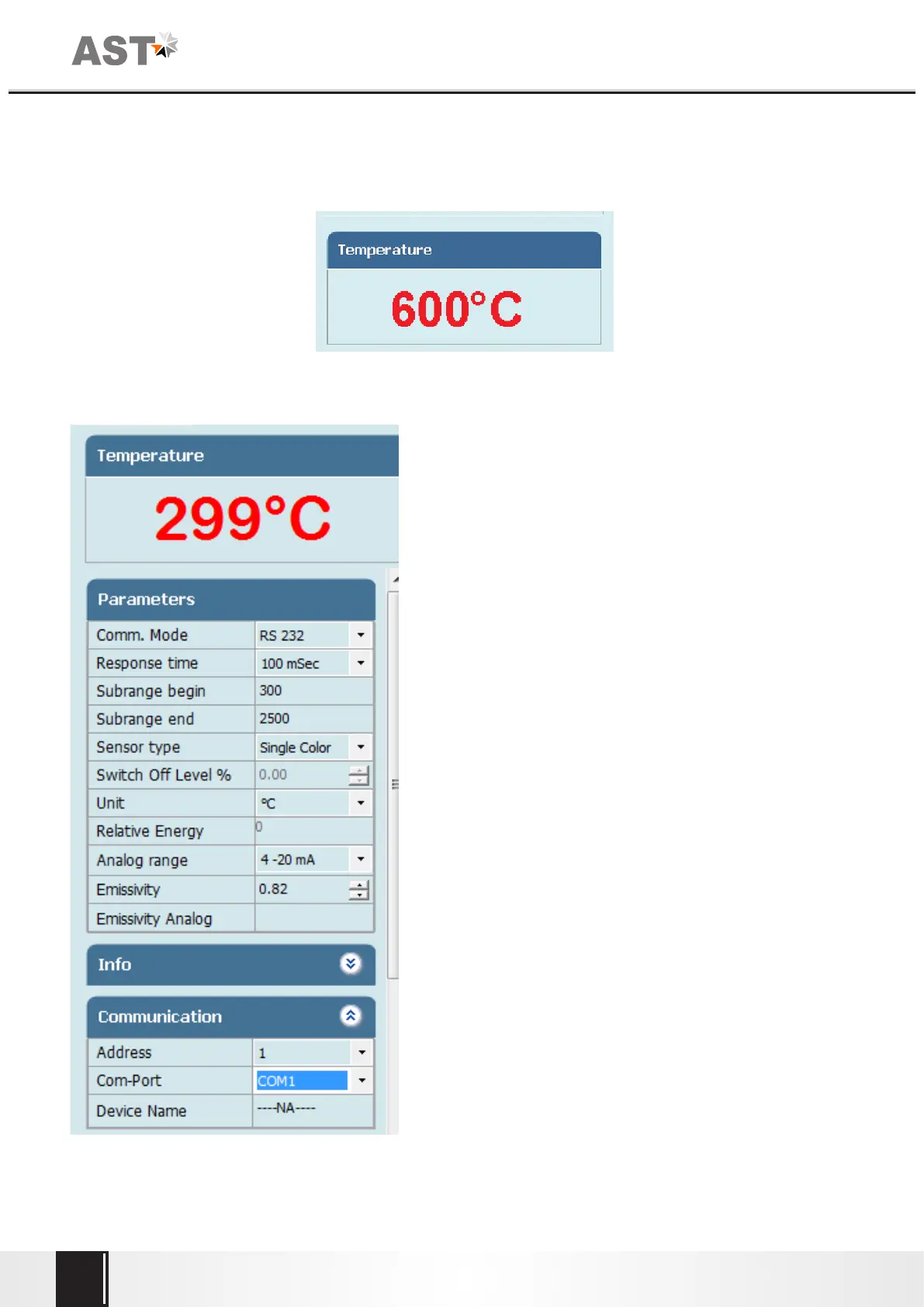

4.2.2 Temperature
It shows the temperature measured by the pyrometer
4.2.3 Parameter Setting
All user selectable device parameters can be set by using the software in the Panel "Parameter"
For communication of multiple pyrometers, select different com port and address.
Accurate Sensors Technologies
12
