ASTEC NT5C06D - Figure 11 - Control Signal Connections

40 Operation
UM5C06D ( 169-2071-504 ) P0831010 Standard 7.00 May 2001

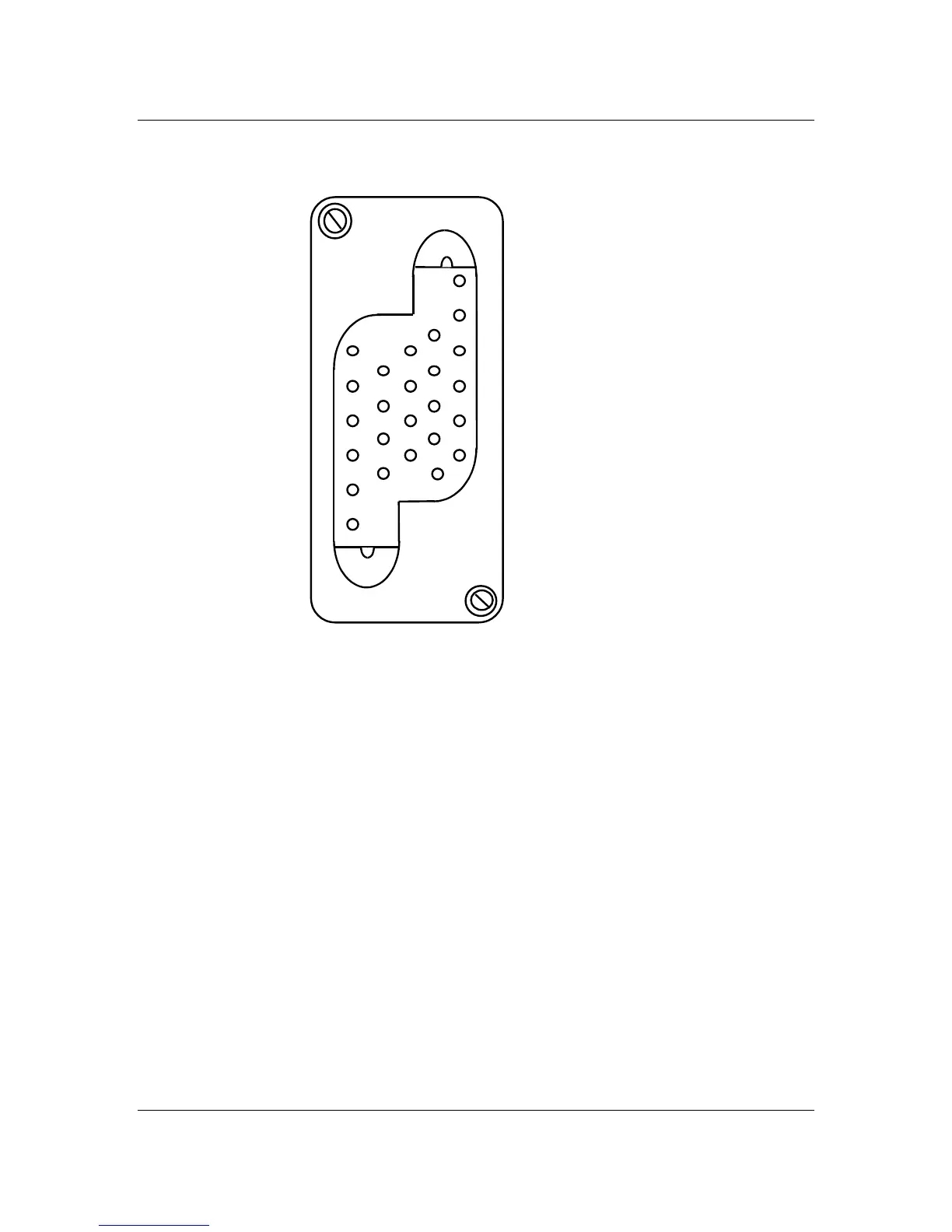

Figure 11 - Control signal connections
1
1 - REMOTE EQL
2 - SENSING RG +
3 - SENSING RC -
4 - TEMPORARY RELEASE
5 - REMOTE HVSD RESET
6 - REMOTE HVSD
7 - RFA NC
8 - Not Connected
9 - FAN ALARM NC
10 - RFA COMMON
11 - FAN ALARM COMMON
12 - SHUNT +
13 - SHUNT -
14 - FAN ALARM NO
15 - RFA NO
16 - GROUND
17 - SENSE COMMON
18 - SENSE NC
19 - SENSE NO
20 - Not Connected
21 - Not Connected
22 - Not Connected
23 - Not Connected
24 - Not Connected
25 - Not Connected
25
