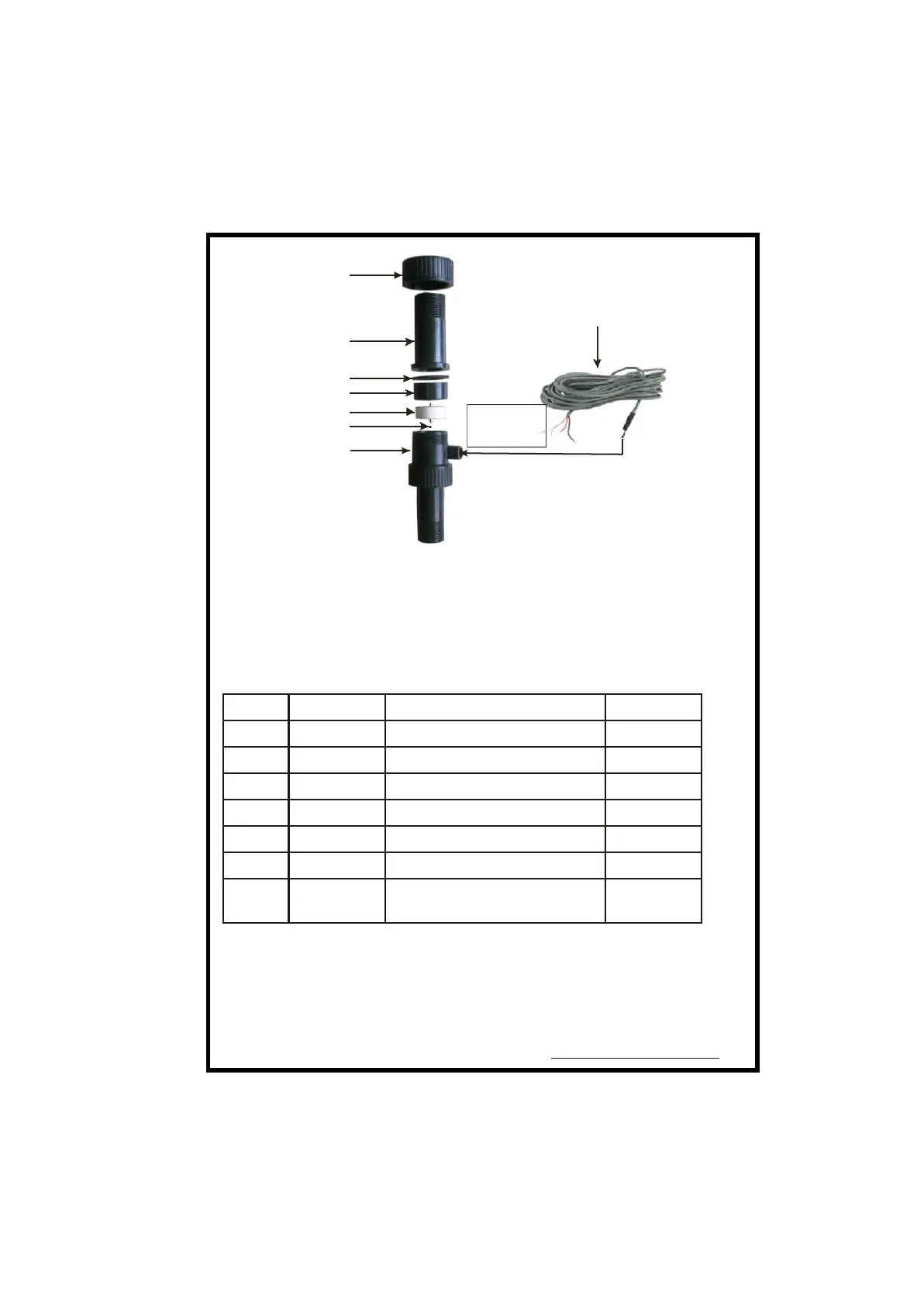

Parts List
Turbine
Sensor Cable
Ball
O-ring
Sensor body
Bush
Pipe
Nut
Red
+5V D.C.
-
Black-
Ground
Green - Output
Opening Instructions:
Ast
er
T
c
n
olog
ies
e
h
1) While opening the sensor for cleaning always ensure that
the arrow is pointing downwards before removing the turbine
to avoid falling of the ball.
*In case sensor is being connected directly to a PLC/Pulse
counter it is recommended to put a pull up resistance of 1kohm
across O/P(Green) and Supply(Red) wires.
Contact us:
ASTER TECHNOLOGIES,
Email:
quality@astertechnologies.in
12
Quick Reference :
Sr.No.
Password
Feature
Page no.
1
123
Calibration
6
2
234
Relay Operation
7
3
456
Reset readings
8
4
----
Batcher settings
8
5
420
Current output
10
6
678
Span settings
10
7
345
10
Meter address
(In case of RS 485 O/P only)
Tele No.:91-020-32517858
Revision no.05.21.12.13
Issue date: 01/01/2014
Survey No. 32/1B/2,
Behind Hotel Shivai,
Kondwa-Pisoli Road,Pisoli
Tal:Haveli Dist.: Pune
Pune-411060
