4
12.Body Material
Glass filled nylon
3 mtr 3 core Teflon
only
for water of normal pH. For any other applications
contact nearest dealer
** Each sensor is calibrated with specific meter. Hence use the
sensor & meter as a single set.
GETTING AQUAINTED WITH THE METER:
This meter is user friendly & easy to understand. Its operation
will be clear when we go through all the parts of the meter.
It is the main part of flow meter. It consists of a
turbine having magnets on its periphery. As the turbine rotates
pulses are generated and sensed. These pulses are proportional to
the flow through pipe.
This is the unit that processes the information received
from sensor and displays actual flow in the line. this unit
also controls the flow by transmitting signals to dosing pumps,
hooters, valves etc through inbuilt relays.

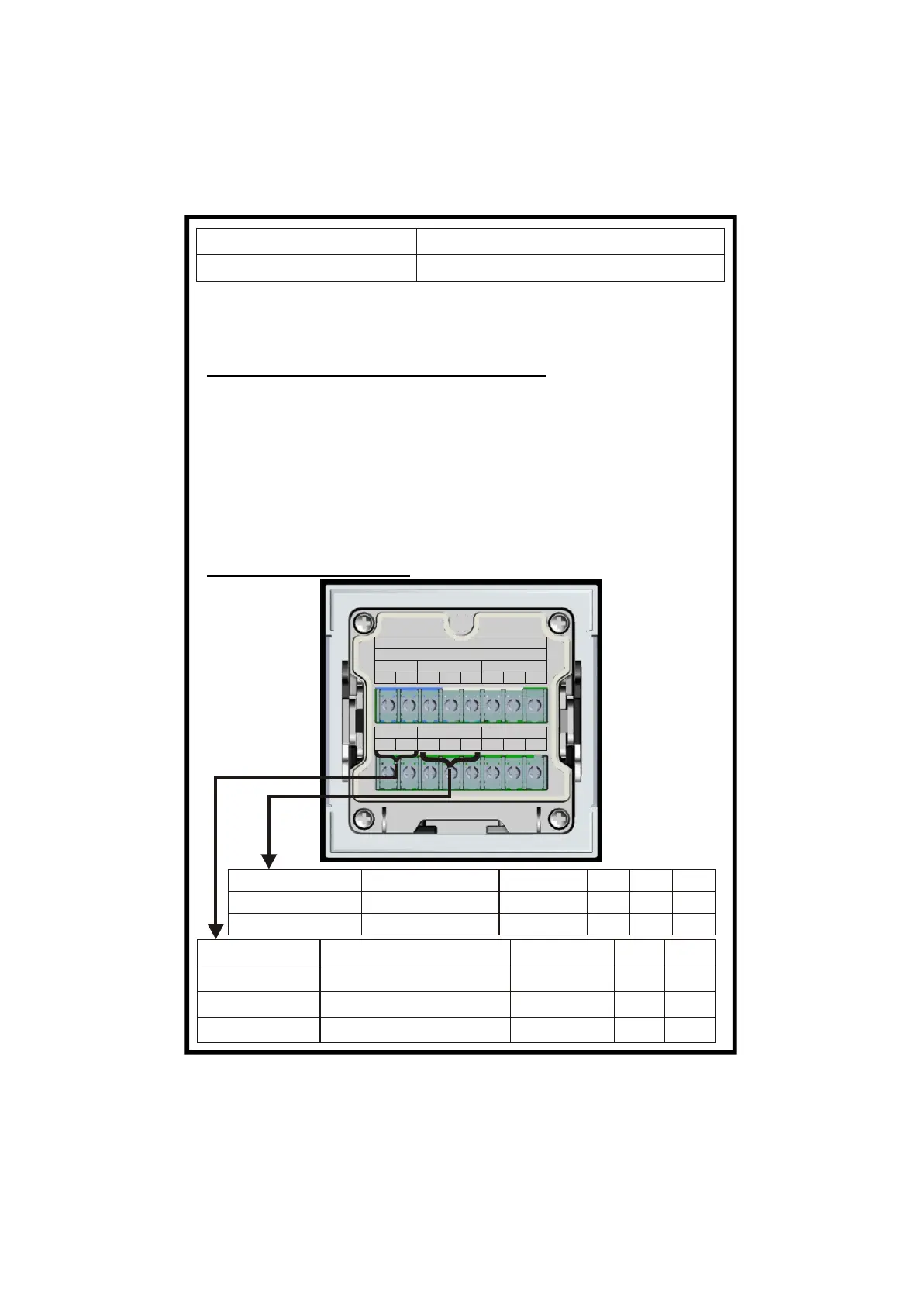

WIRING CONNECTIONS:
Output
B RG
21
Sensor 1 Sensor 2
5
3
4
Sr.No.
MAINS
RELAY
NO X
X
NCC
XN
P
Not Appl
Factor:
Part no.# FT-650 FB 2 1 1 N
2
X
-
-
1
X
+
+
With relay output only
4-20 mA current O/P with relays
RS-485 O/P with relays
Description
Current O/P
RS 485 O/P(Tx)
Terminal details
Part no.
FT-650 FB 2 1 1 N
Not appl.
FT-650 FB 2 1 1 C
FT-650 FB 2 1 1 R
13.Cable
* Suitable
1. SENSOR:
2. METER :
4
X
G
3
X
B
With one sensor only
With two sensors
Description
SENSOR 2
Terminal details
FT-650 FB 2 1 1 1 N
Not appl.
FT-650 FB 2 2 1 1 N
5
X
R
Part no.
