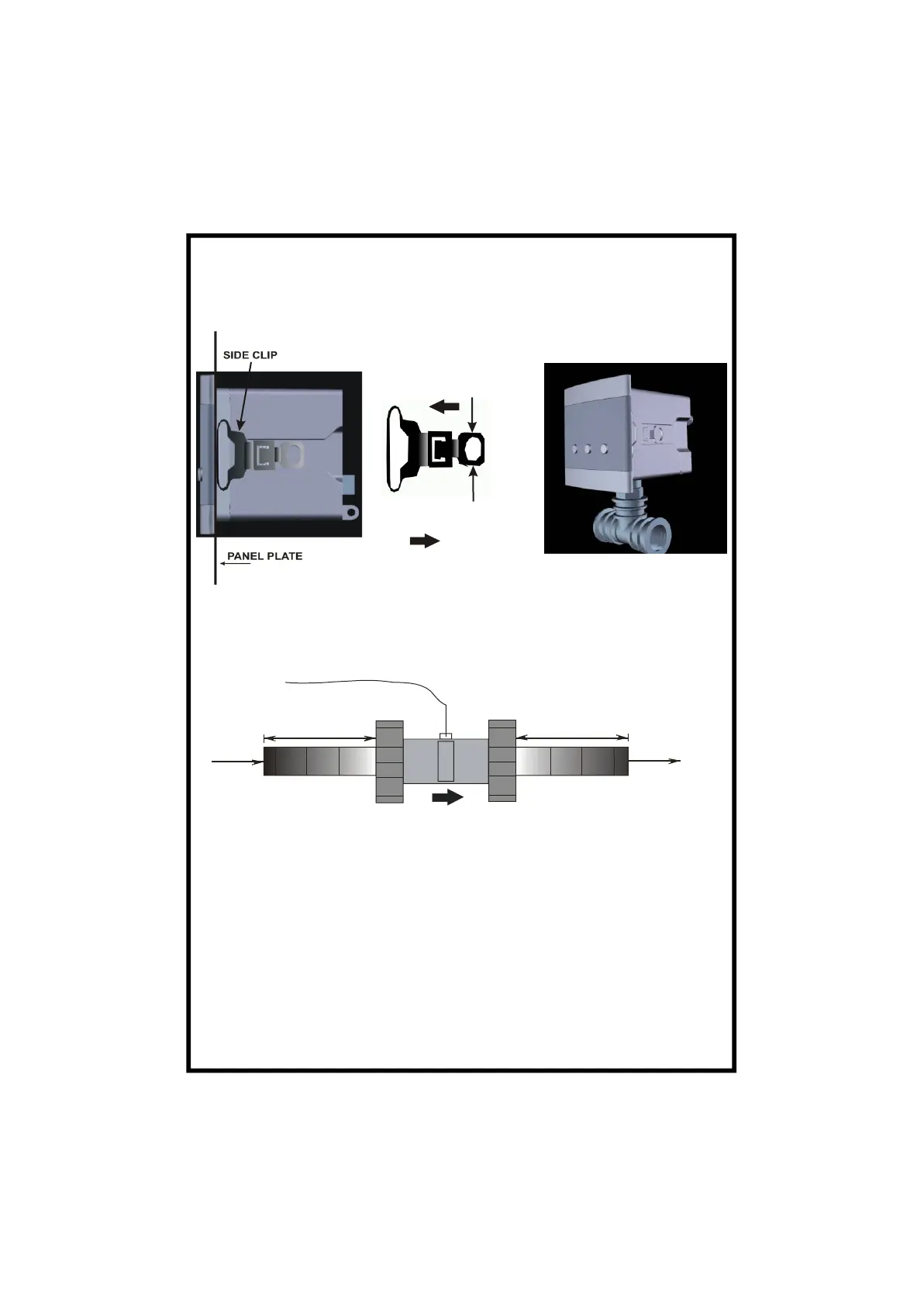

INSTALLATION GUIDELINES:
1)METER: Meter has been designed to suit panel as well as field
mounting as shown below.
5
PANEL MOUNT APPLICATION
FIELD MOUNT APPLICATION
MOUNTING POSSIBILITIES
Sensor Cable
10 X D
10 X D
Inlet
Outlet
1)
While installing the sensor in line follow the arrow direction on the
sensor body.
2)
Sensor will be ideally located in horizontal line with minimum
straight run as mentioned above.
3) Ensure upstream & downstream of 10 inches & 20 inches on
either side for 1” & 2” line size respectively.
4) It is recommended not to loosen or tighten NUTS of the
sensor while fitting on line (use extra union connectors on both
ends).
2)SENSOR:
Press this downwards
& Push forward to lock
Press this downwards
& Pull out to unlock.
