Maintenance and Technical Data
6.7
High Voltage Checks
Battery State of Charge (SoC)
To help maintain the battery SoC, the supplied battery
conditioner should be connected whenever the vehicle is not in
use.
The HV battery SoC should be checked on a weekly basis. To
check the battery SoC, select vehicle in the infotainment screen
for a graphical display or it will also be shown in the instrument
cluster menu.
If the SoC is below 20% then the vehicle should be started so that
the battery is charged to at least 80%.
Engine Cover Release

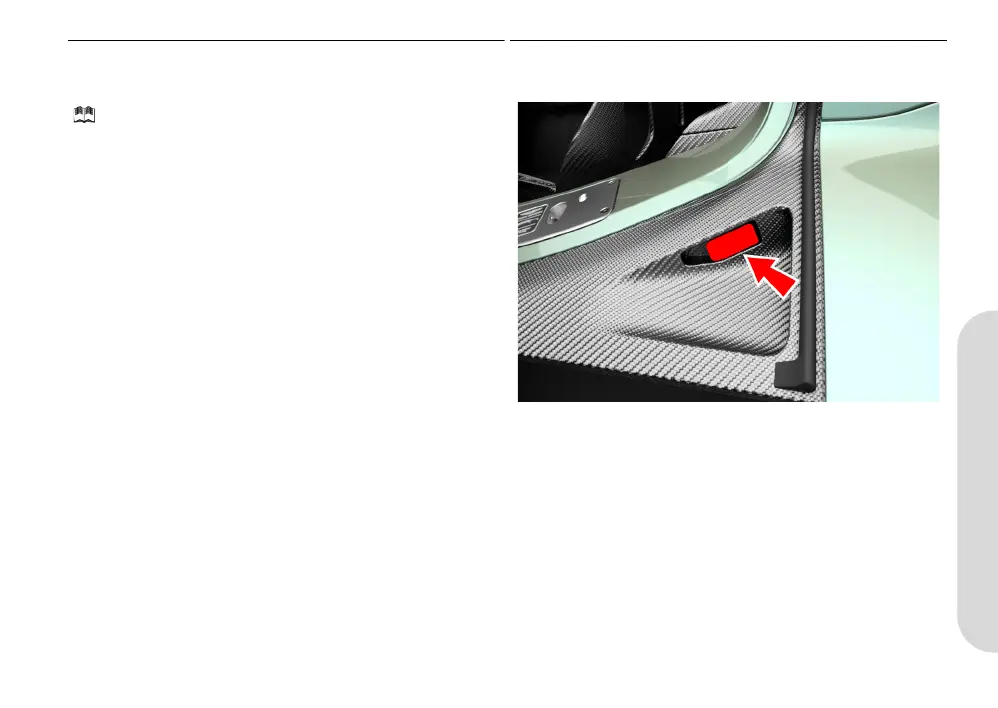

To open the engine cover, pull the lever located in the left side
door aperture.
Slightly lift the rear edge of the engine cover to lift it. The engine
cover is held open by a carbon rod.
