Astound Concord - Wiring Diagrams - Explorer Model 8300 Connections (Continued); Connecting DVR 8300 to Stereo TV; Connecting DVR 8300 to Stereo VCR; Connecting Stereo TV to Stereo VCR

40 pages

To Next Page

To Previous Page

Wiring Diagrams

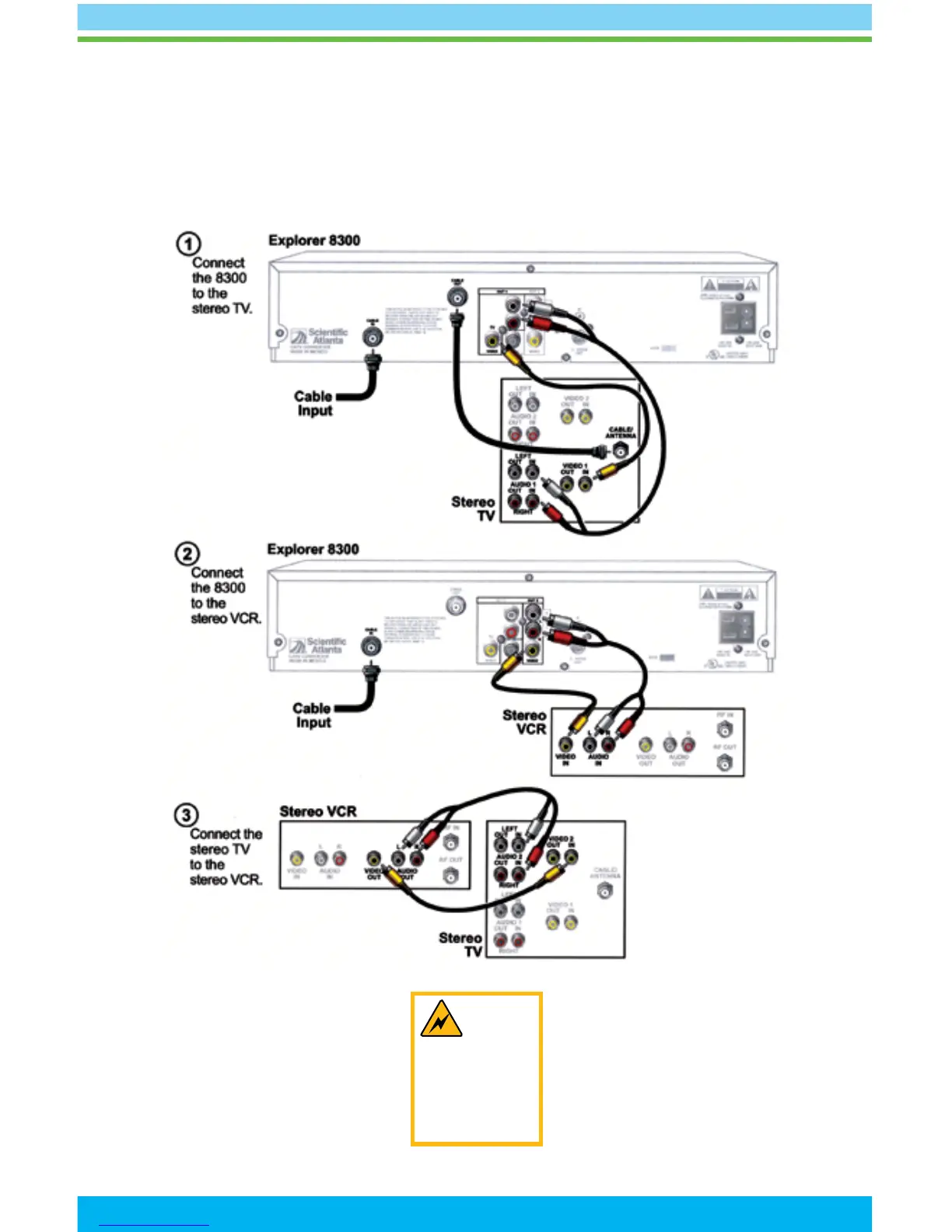

Diagram 2. Connecting your DVR to your Stereo TV and Stereo VCR

WARNING:

Electric shock hazard!

Unplug all electronic

devices before con-

necting or discon-

necting any device

cables to the 8300.
