Wiring Diagrams

Scientific Atlanta Explorer 8000 or 8300 HD/DVR

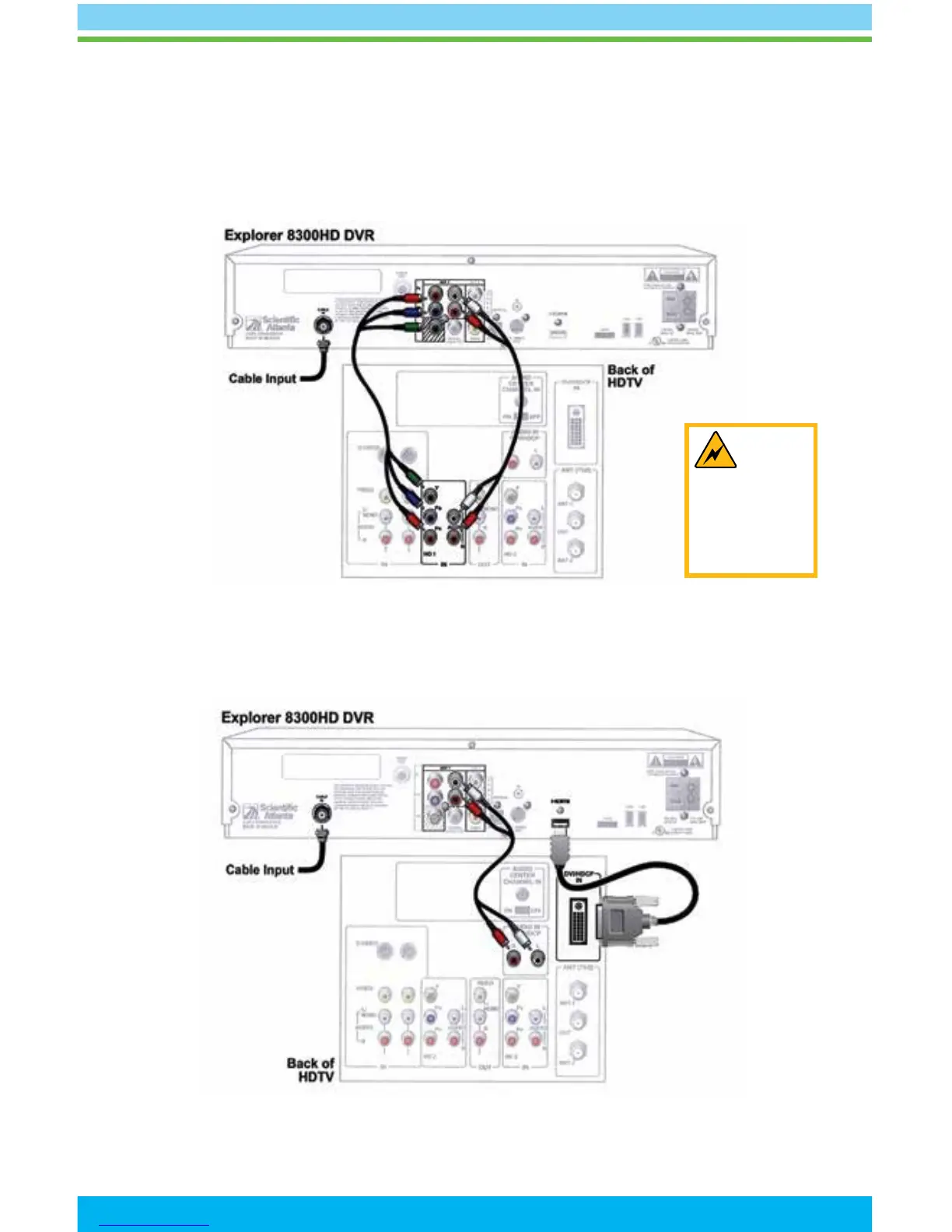

Diagram 2. Connecting the 8000 or 8300 HD-DVR using DVI Connection

Diagram 1. Connecting the 8000 or 8300 HD-DVR using component connection

Note: When connecting the HDMI connector to the HDTV’s DVI connector,

you need an HDMI-to-DVI adaptor, and you need a separate audio connection.

WARNING:

Electric shock hazard!

Unplug all electronic

devices before con-

necting or disconnect-

ing any device cables

to the 8300HD.
