INST 318 HINRG HEATER – V01-18
INDOOR FLUE INSTALLATION
For indoor installations a 125 mm flue and termination cowl must be fitted to the heater. The heater may be installed with a
maximum of 16 metres of flue including 3 bends or of 8 metres of flue with a total of 5 bends.
The flue and termination cowl must be ordered from AstralPool.
Part # 78285 4 metre spiral flue with termination cowl
Part # 78249 4 metre x 125mm flue extention (maximum of three additional to make a total length of 16 metres)
Heater must be installed to AS/NZ 5601. Access and suitable working areas must be available to the heater.
Flue pipe is supplied with a galvanised sleeved end for the external application and an non sleeved aluminium end for fitment to
appliance. The flue pipe can be cut shorter with a knife/saw.

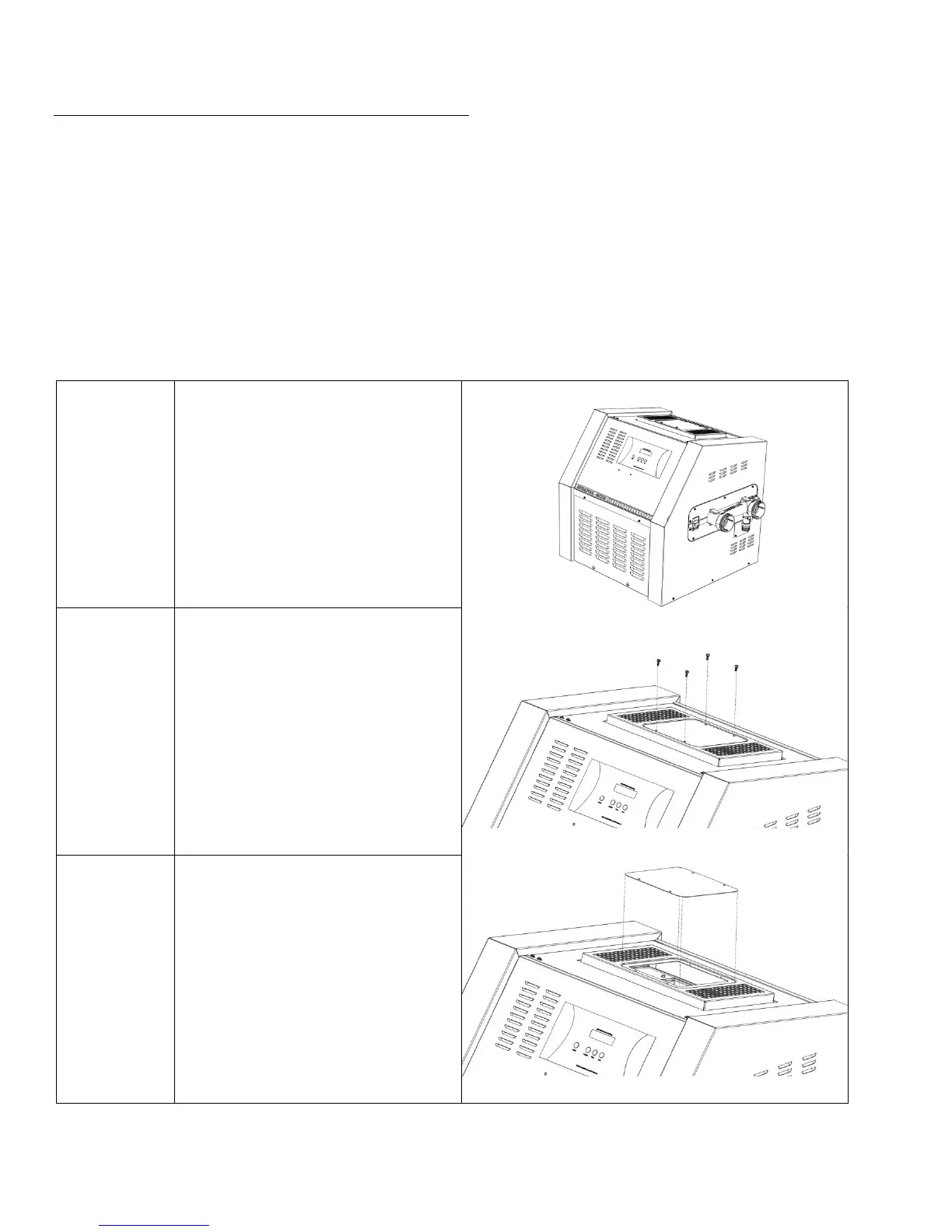

HINRG POOL HEATER – OUTDOOR MODEL.
USING A PHILLIPS HEAD SCREW DRIVER
UNSCREW 4 X SCREWS FROM FLUE COVER
PLATE.
REMOVE FLUE COVER OUTDOOR INSERT.
