Astralpool 175 - ROOFTOP TERMINATIONS; WALL TERMINATIONS

INST 318 HINRG HEATER – V01-18
- 11 -
8

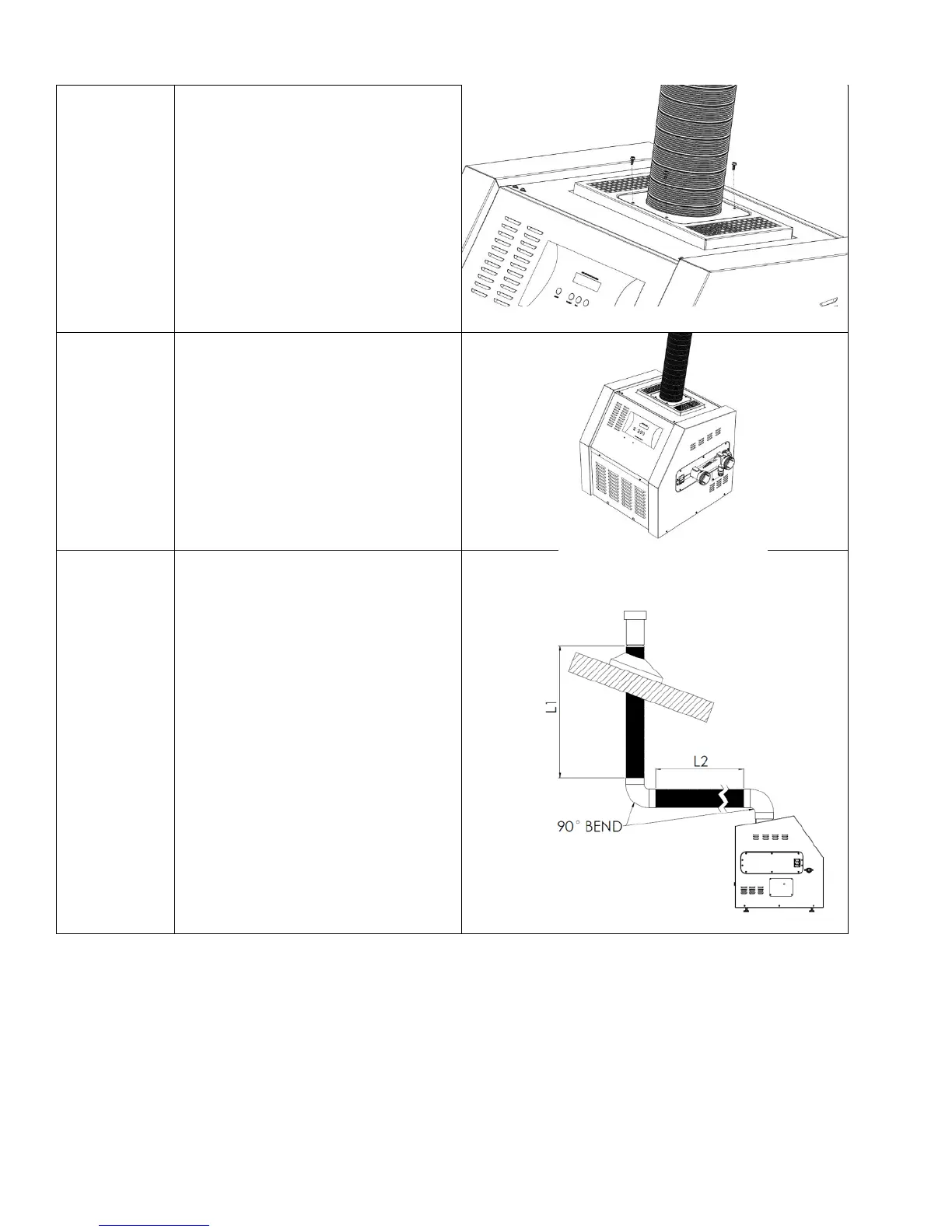

SLIDE INDOOR INSERT PANEL DOWN THE
FLUE AND SCREW INTO POSITION WITH 4
X SCREWS.
9
HINRG POOL HEATER – INDOOR MODEL.
10
FORM EXTRA BENDS WHERE REQUIRED.
CARE SHOULD BE TAKEN WHEN FORMING
BENDS TO NOT CREATE A LOW POINT
WHERE CONDENSATION MAY COLLECT.
CONDENSATION SHOULD BE ABLE TO
DRAIN TO THE HEATER OR OUT THE FLUE
OUTLET.
THE FLUE SHOULD BE BRACKETED AT
INTERVALS OF 1 M USING STANDARD 125
MM STANDOFF BRACKETS AVAILABLE AT
MOST PLUMBING SUPPLIERS.
