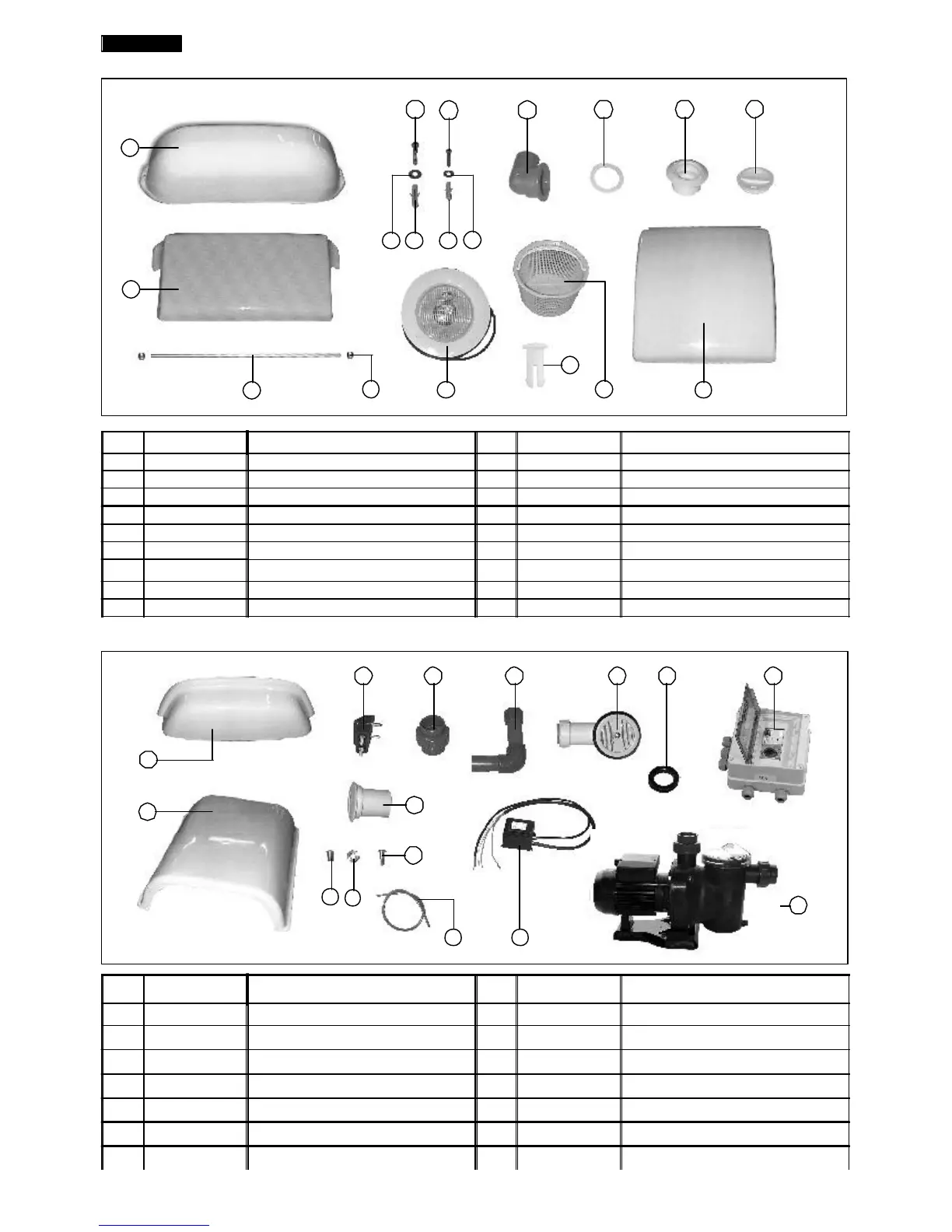

SPARE PARTS OF FRONT MODULE
SPARE PARTS OF FILTRATION BOX
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 18546R11000 Front trim fairing 10 04035 Suction inlet nozzle
2 70134R08050 Stainless steel screw D8*50 Din 571 11 00300R0002 Suction plug 3/4"
3 70139R08000 Stainless washer D8 Din 9021 12 18546R1210 Skimmer cover
4 18546R1301 Fisher plug Nº10 13 18546R1201 Skimmer securing rod
5 70126R06040 Stainless steel screw D6*40 Din96 14 21257-0011 Safety washer
6 70139R06000 Stainless steel washer D6 Din 9021 15 05280R0400 Basket
7 18546R1302 Fisher plug Nº8 16 18546R1220 Upper front cover
8 04043 Drive nozzle bushing 17 18042 Light 100W 12V combo
9 00103R0003 Jet flat joint 18 013153-0012 Piece to fix the rib
-8-
ENGLISH
16151413
1110982 5
4 73
6
12
1
17
23222120 24 25
27
26
31
30
29
32
19
18
28
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
18 18546R2100 Filtering box trim 26 18546R2242 Transformer
19 18546R2210 Filtering box cover 27 25467 Sena 1/25 CV I 5
20 00621R0201 Hinges 28 04048R0100 Pneumatic pushbutton
21 0551050 3-part link 29 15260R0211 Brass insert M8x12
23 31311001 Jimten housing drain 30 15260R0212 Brass nut M12
24 00615R0102 Pipe through fitting joint D.50 31 024001011 Glass tube 4x6
25 27413R2243 Electric box 32 7013208020 Stainless steel screw M8x20 DIN 7985
18
