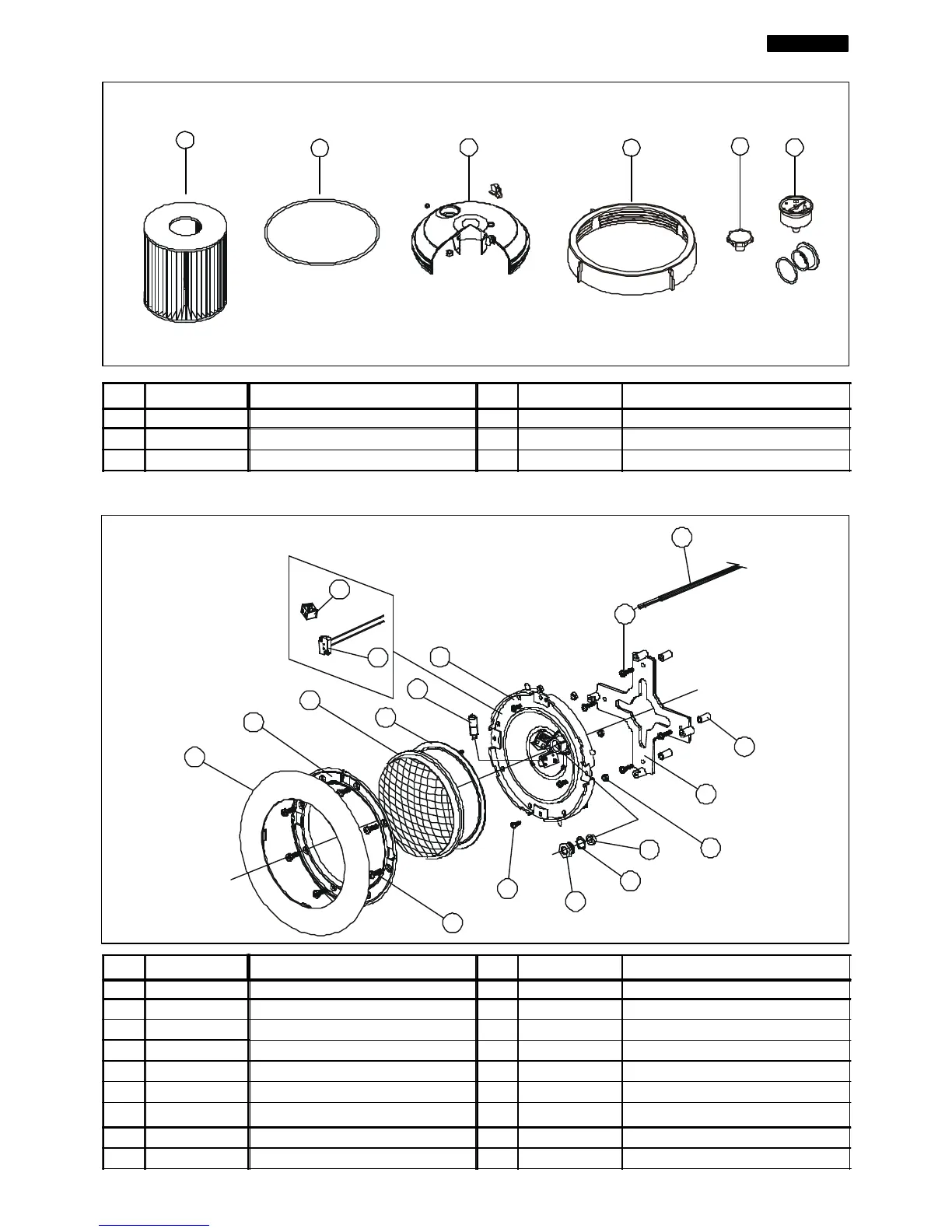

SPARE PARTS OF FILTER
SPARE PARTS OF LIGHT
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 19785 Filter cartridge 4 18111R0003 Securing nut of lid
2 7220140030 Join 140 x 4 5 18111R0005 Viewer draining screw
3 18112R0002 Filter cover 6 18111R0008 Pressure gauge
Nº CODE DESCRIPTION Nº CODE DESCRIPTION
1 18042R0001 Ring trim 10 00346R0011 Cable gland gasket
2 18042R0002 Light trim 11 7013206020 Screw DIN 7985 A2 M6x20
3 00373 Clear lens 12 00346R0102 Ceramic plugboard
4 00346R0004 Silicone gasket 13 00346R0103 Lamp holder
5 00346R0100 Screen and flange set 14 00346R0007 Electrical cable H07 RN-F 2x1
6 00346R0014 Mounting bracket 15 7012106000 Nut DIN 934 A2 M-6
7 00371 Halogen lamp 12 V 100 W 16 70161R5025 Stainless steel screw D5x25 DIN 75055
8 00346R0010 Cable gland nut PG-11 17 15260R0203 Rubber plug 9x25x15 EPDM 70
9 00346R0012 Cable gland washer 16,5x10,5x1,5 18 7011448016 Screw DIN 7981 A2 4,8x16
-9-
ENGLISH
1
2
3 4
5
6
4
1
11
18
8
15
10
9
6
7
2
3
13
5
12
16
17
14
