5

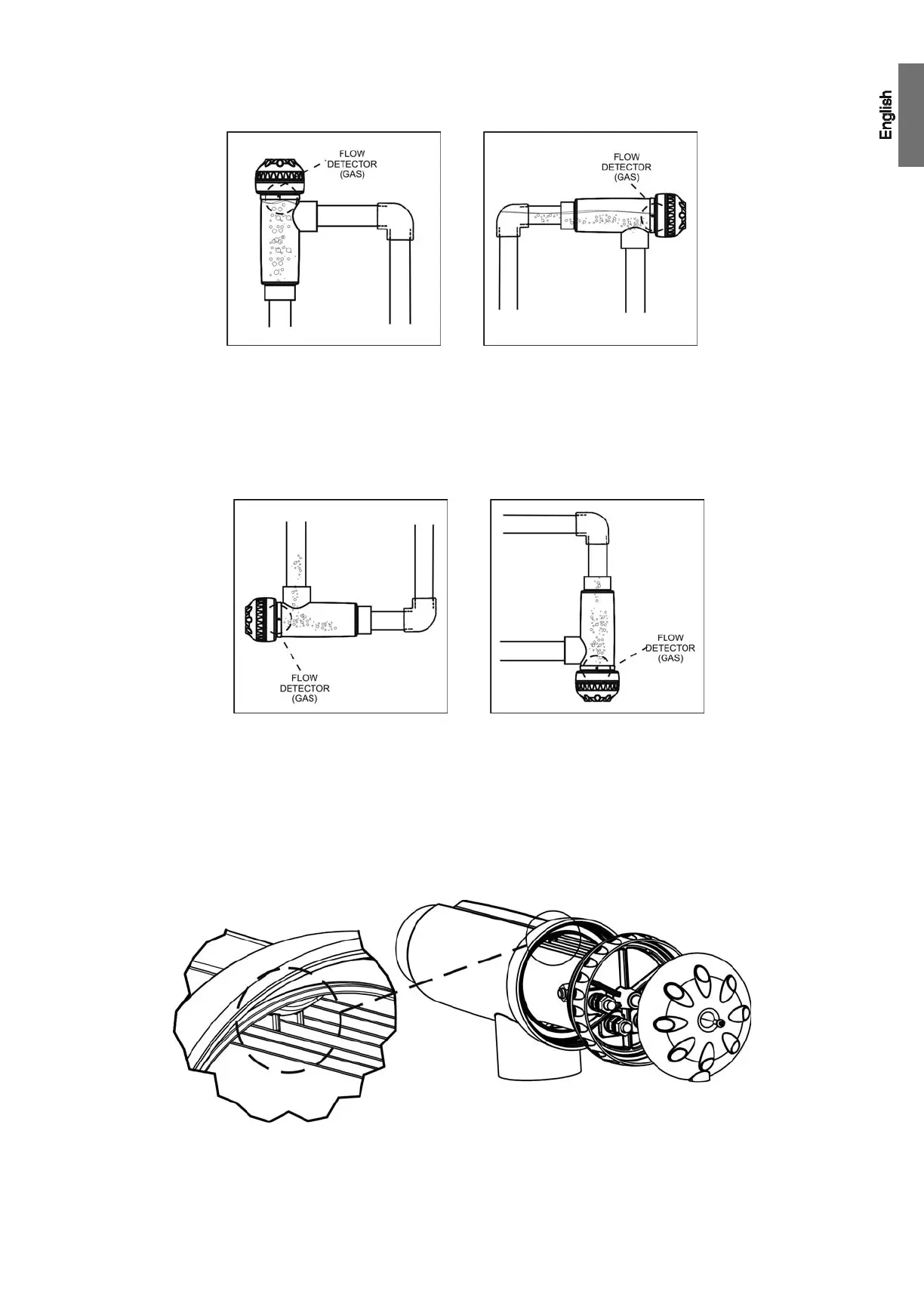

Other installations would only be acceptable if the detection of low or null flow is also allowed.
Fig.5
Fig.6
1. Recommended installation 2.
llowed installation
(not recommended)
Fig.7
Fig. 8
3. Not allowed installations
The electrodes should be introduced into the inside of the electrolysis cell, securing the main electrode of the unit through the guides located
at the top and bottom of it.
Fig. 9a
