4.5.Controls and indicators

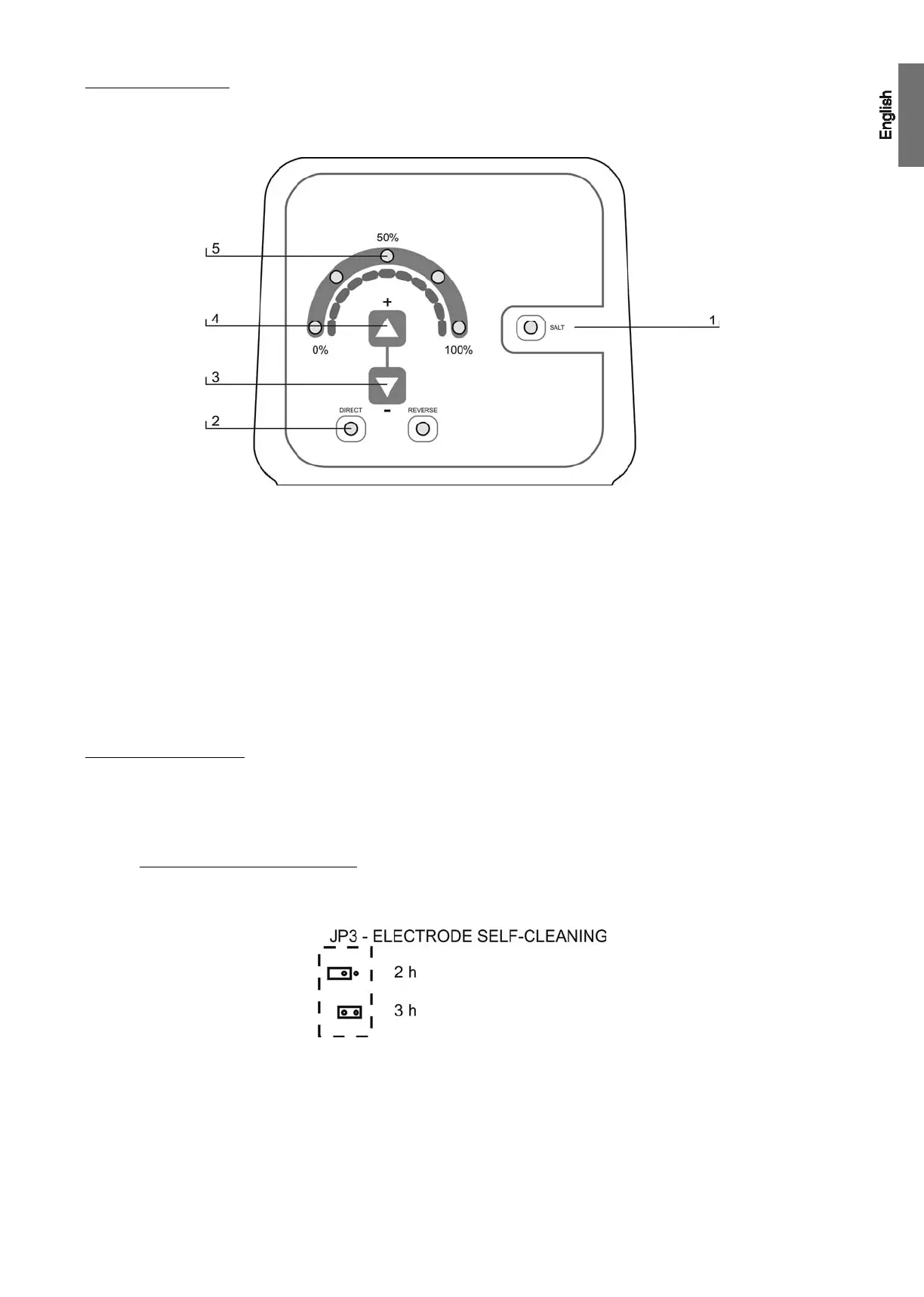

The AstralPool Chlore Smart Salt Electrolysis systems are fitted with a control panel on the front (Fig. 10).
Fig. 10
1. SALINITY Alarm.
2. SELF-CLEANING indicators (DIRECT/REVERSE polarity)
3. Key
“-” (decrease production)
4. Key
“+” (increase production)
5. Production indicator 0 ... 100 %
4.6. Programming and control
Besides the basic operations, the AstralPool Chlore Smart Salt Electrolysis System has an input for an external control by means of an ORP
controller, residual chlorine, etc.; as well as one for the adjustment of the production of the equipment on activation of the automatic
swimming pool cover. Moreover, it permits the configuration of three electrode SELF-CLEANING modes: TEST, 2/2, 3/3 hours.
ELECTRODE SELF-CLEANING System: the leds [2] indicate electrode polarisation status (direct/reverse). The reversal frequency
can be selected by means of jumper “JP3” on the system control panel (Figs. 11- 12).
