RC9 – INSTALLATION SET UP
Packed inside your controller there will be a combination of the following items depending on the model of controller
ordered;
a. RC9 Controller
b. RC9 mounting plate
c. Intelligent pH probe (if pH model)
d. Intelligent ORP probe (if ORP model)
e. Mixing chamber – for installation of feed tubes and probes
f. Clear supply tube
g. Non return valve(s)
h. Hose weight(s)
i. Alligator clamps

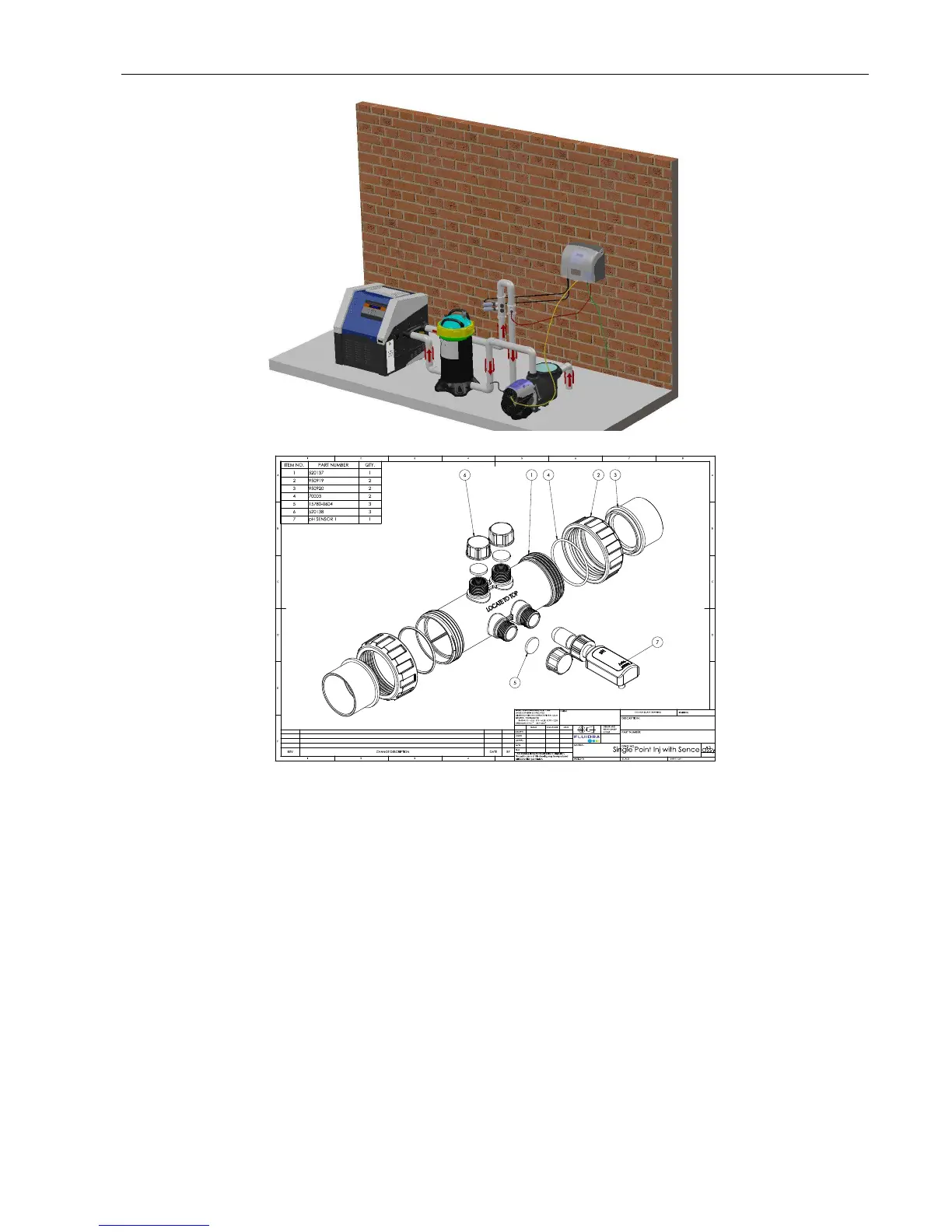

1. Begin installation by plumbing the mixing chamber into the return line of the swimming pool. The mixing chamber
should be installed after gas heaters and solar take offs and returns but before any other sanitising device such as
salt chlorinators or erosion feeders. When installing the mixing chamber, it is essential the probes are horizontal to
the water flow. This ensures the probes are constantly submerged even when water flow is restricted.
