4.7. Controls and indicators

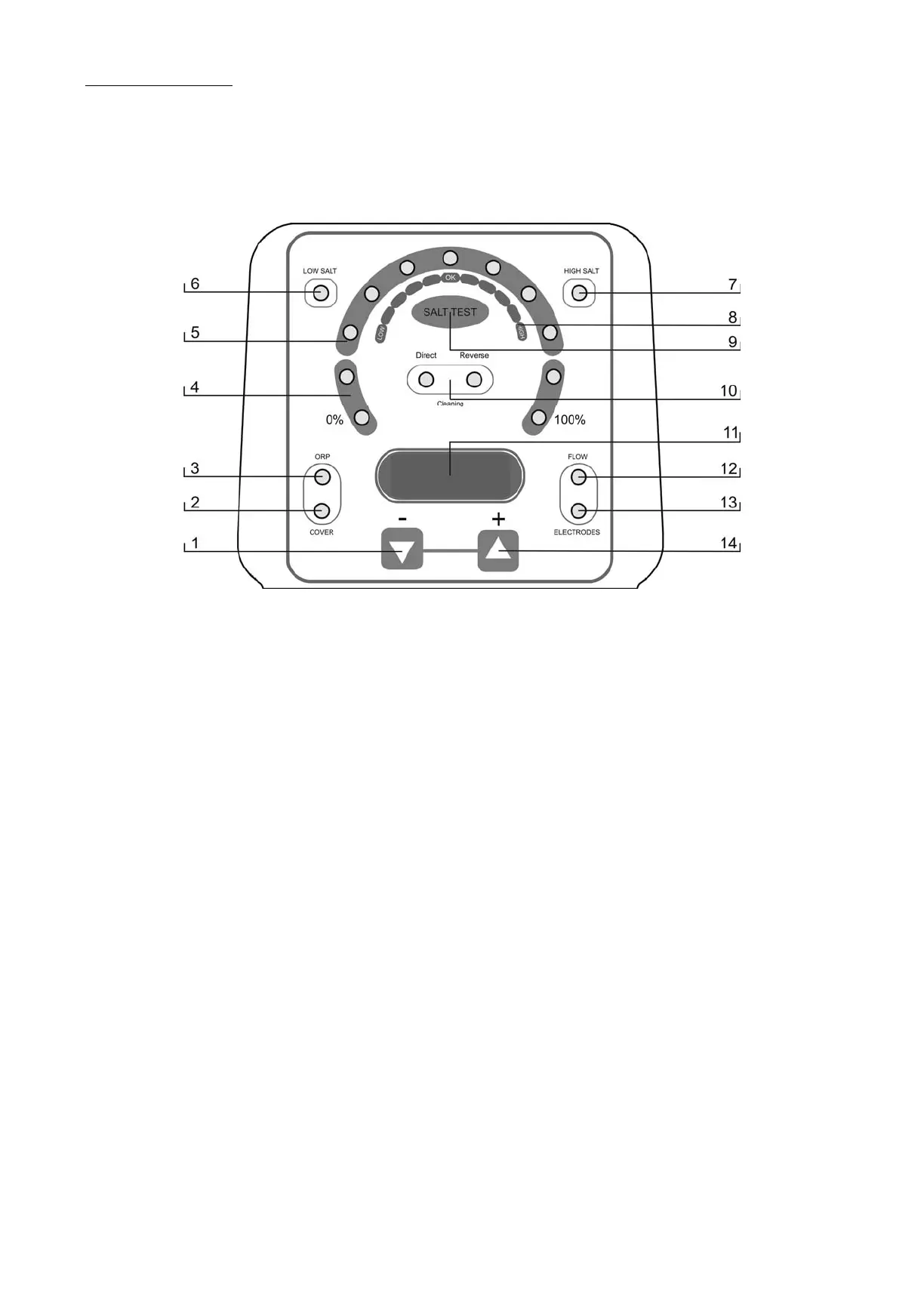

The AstralPool Chlore Smart+ Electrolysis systems are equipped with a control panel on the front (Fig. 14a).
Fig. 14a
1. Key “
-” (decrease production / programming menu navigation).
2. Indicator of activated AUTOMATIC COVER control.
3. Indicator of activated ORP CONTROL.
4. Production scale (%).
5. PRODUCTION+SALINITY TEST scale.
6. Indicator of LOW SALINITY.
7. Indicator of HIGH SALINITY.
8. SALINITY scale (qualitative).
9. Key for “SALINITY TEST”.
10. SELF-CLEANING indicators
(DIRECT/REVERSE) polarity.
11. Display of SYSTEM INFORMATION.
12. Indicator of FLOW ALARM.
13. Indicator of ELECTRODE passivation ALARM.
14. Key “
+” (increase production / programming menu navigation).
