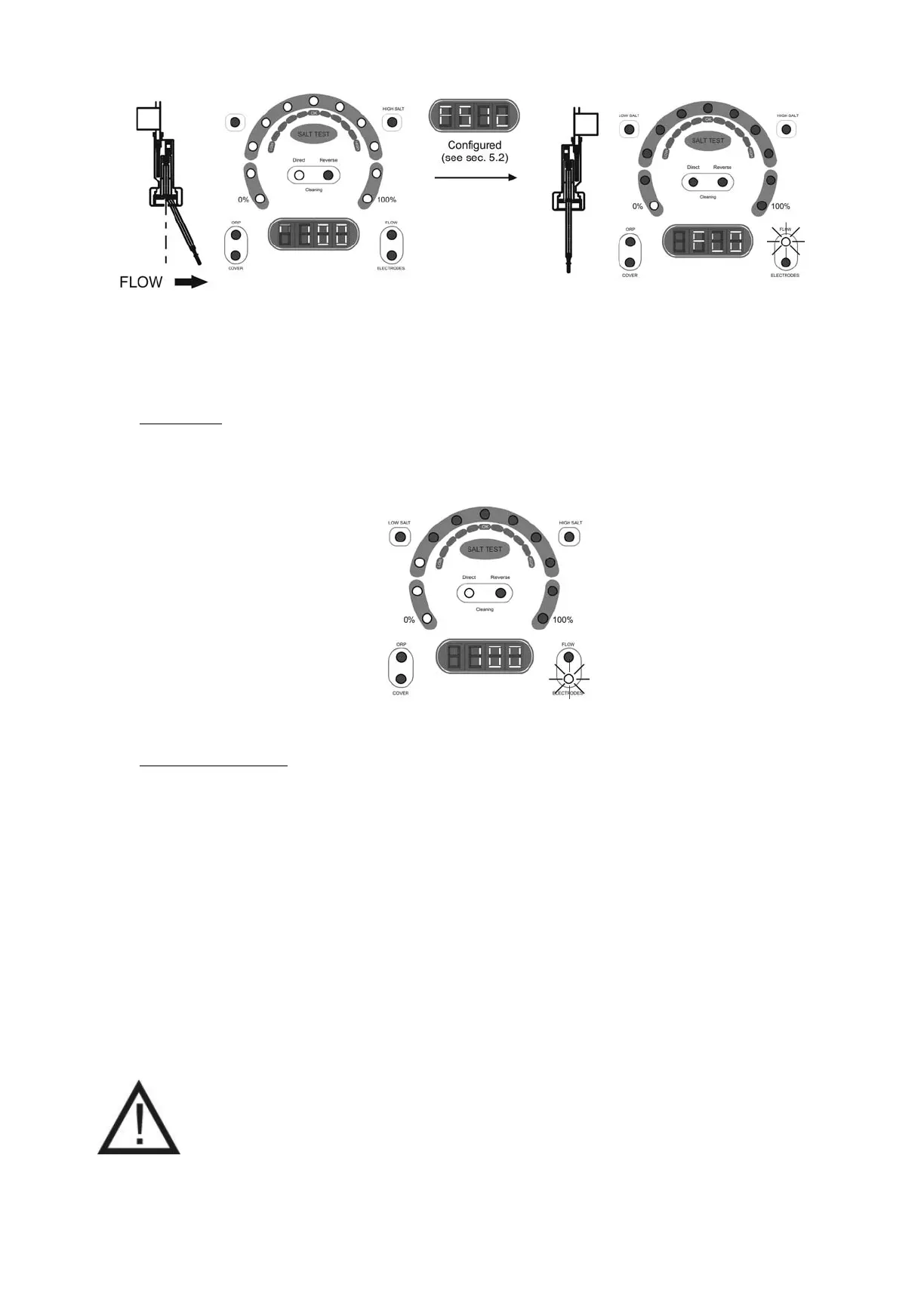

ctivated flow detector (contact closed). System running. 2. Flow detector at rest (contact open). System off.
Fig. 28
ELECTRODES
The AstralPool Chlore Elite system has a light indicating malfunction of the electrolysis cell electrodes [13]. This usually occurs at
the end of the electrodes’ useful life, when they lose their power. However, although this is a self-cleaning system, this malfunction
could also be due to excessive scaling on the electrodes when the system operates with hard water with a high pH value.
Fig. 29
PH / ORP OUT OF RANGE
The integrated pH control system has two ALARM lights which come on whenever a pH value of less than 6.5 “LOW” [20] or more
than 8.5 “HIGH” [16] is detected. When the regulator detects an active pH alarm, it opens the control output of the dosage pump
(pH).
Remember
Whenever the water pH is out of control range 6.5 ... 8.5 the dosage pump connected to the
system will be disconnected, and therefore the system cannot do any modifications. To avoid
his situation, you must do a manual correction of the water pH using a suitable product (pH-
minus / pH-plus) on the basis of the observed deviation.
To Next Page
