Astralpool Smart+ 60 - Page 8

6
Other installations would only be acceptable if the detection of low or null flow is also allowed.

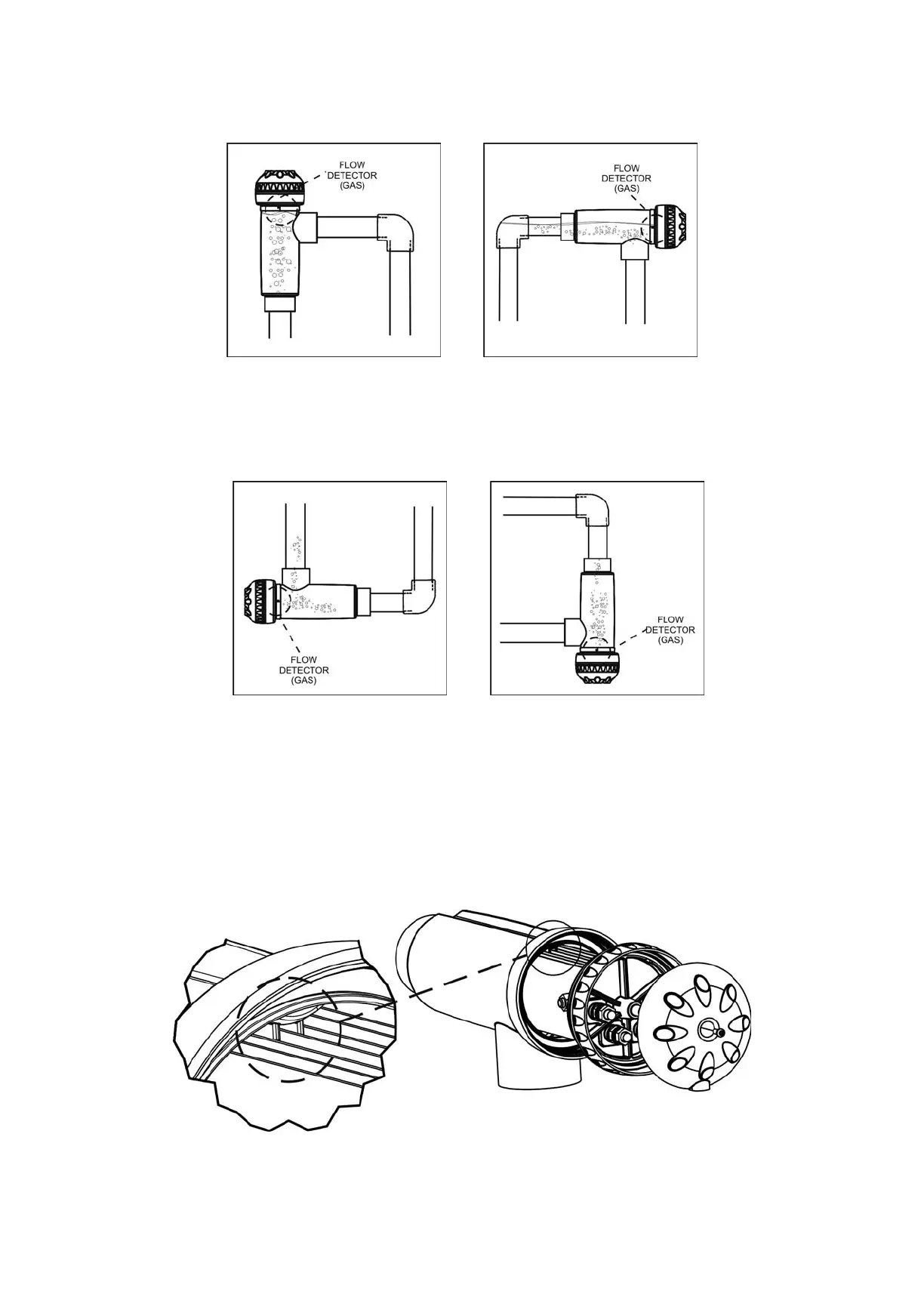

Fig. 5
Recommended installation
Fig. 6
Allowed installation
(not recommended)
Fig.7 Fig. 8
Not allowed installations
The electrodes must be inserted in the electrolysis cell, fitting the central electrode through the guides located at the top and bottom of the
cell.
Fig. 9a
