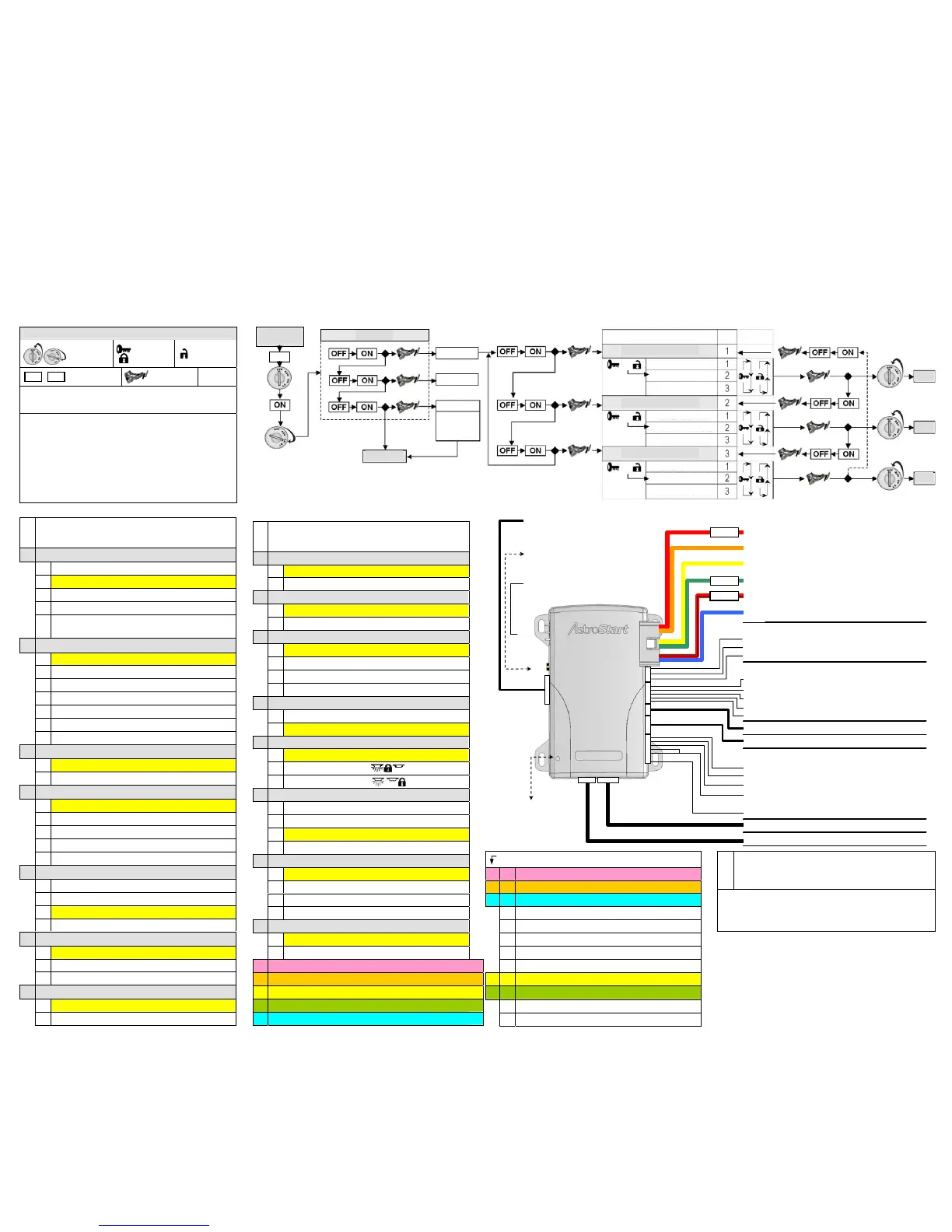

LEGEND / COMMENTS
IGNITION
SWITCH
“
OFF” / “ON”
SELECT
NEXT
OPTION
SELECT
PREVIOUS
OPTION
OFF ON
MAIN SWITCH
“
OFF” / “ON”
DEPRESS
BRAKE PEDAL
OR
LED
THE LED FLASHES THE NUMBER OF TIMES INDICATED IN THE
TABLE TO CONFIRM THE SELECTION OF A LEVEL
, PARAMETER
OR OPTION
.
• THE FIRST TIME AN OPTION IS SELECTED, THE LED DISPLAYS THE CURRENT
SETTING
; CHANGES ARE MADE ONLY THE SECOND TIME IT IS SELECTED AND
SUBSEQUENTLY
.
• A SELECTED OPTION IS ONLY MEMORIZED WHEN THE BRAKE PEDAL IS
DEPRESSED
.
• TURNING THE IGNITION SWITCH TO “OFF” AT ANY TIME TERMINATES
PROGRAMMING
.
• ONLY ONE LEVEL MAY BE SET AT A TIME. FINISH THE CURRENT LEVEL AND
START THE PROCESS OVER FOR THE NEXT LEVEL
.
1
LEVEL 1
BASIC CONFIGURATION
1 TRANSMISSION - SAFETY SEQUENCE
1 AUTOMATIC TRANSMISSION
2 MANUAL – 2 PARKING BREAK ACTIVATION
3 MANUAL – 1 PARKING BREAK ACTIVATION
4 MANUAL - INITIALIZED BY TX - END BY TX
5
MANUAL - INITIALIZED BY TX -
END BY CLOSING DOOR
2 NUMBER OF CYLINDERS PER TACHOMETER CIRCUIT
1 1 CYLINDER
2 2 CYLINDERS
3 3-4 CYLINDERS
4 5-6 CYLINDERS
5 8 CYLINDERS
6 10 CYLINDERS
7 12 CYLINDERS
3 STARTER DISENGAGE (TACH MODE)
1 800 RPM
2 500 RPM
4 TACHOMETER SIGNAL READING MODE
1 SIGNAL MONITORING MODE
2 “TACHLESS” MODE TYPE 1
3 “TACHLESS” MODE TYPE 2
4 “TACHLESS” MODE TYPE 3
5 HYBRID MODE
5 RUNTIME
1 2 MIN./ 4 MIN.
2 4 MIN. / 8 MIN.
3 8 MIN. / 16 MIN.
4 18 MIN. / 36 MIN.
6 ENGINE TYPE
1 GASOLINE
2 DIESEL 15 SEC.
3 DIESEL 30 SEC.
7 HOOD SWITCH TYPE
1 NORMALLY CLOSED
2 NORMALLY OPEN
2
LEVEL 2
ADVANCED CONFIGURATION
1 UN/LOCK PULSE TYPE
1 SINGLE
2 DOUBLE
2 UN/LOCK PULSE DURATION
1 0.7 SECOND
2 2.8 SECONDS
3 TRUNK RELEASE PULSE DURATION
1 0.7 SECOND
2 15 SECONDS
3 1 MINUTE
4 8 MINUTES
4 AUTOMATIC UN/LOCK
1 ENABLED
2 DISABLED
5 OEM ALARM SYSTEM REARMING
1 DISABLED
2 TYPE 1
3 TYPE 2
6 HORN CONFIRMATION
1 DISABLED
2 2ND START
3 2ND UNLOCK
4 2ND UNLOCK AND 2ND START
7 PULSE ON UN/LOCK OUTPUT
1 DISABLED
2
PULSE BEFORE START ON UNLOCK OUTPUT
3
PULSE AFTER START ON LOCK OUTPUT
4 BOTH (OPTIONS 2 AND 3 ENABLED)
8 COMMUNICATION PROTOCOL – ASTROLINK PORT
1 DISABLED
2 DATA TO DATA
9 PROGRAMMABLE OUTPUT #1 - H3-4 - BROWN
10 PROGRAMMABLE OUTPUT #2 - H3-3 - WHITE/BLUE
11 PROGRAMMABLE OUTPUT #3 - H3-2 - WHITE
12 PROGRAMMABLE OUTPUT #4 - H3-1 - VIOLET
13 PROGRAMMABLE FUNCTION RELAY - H11
PARAMETER CORRESPONDING TO DEFAULT OPTION
9 1 PULSE BEFORE START ON UNLOCK OUTPUT
10
2 PULSE AFTER START ON LOCK OUTPUT
13
3 ACTIVATED WHILE RUNNING
4 ACTIVATED 5 SEC. WHILE RUNNING
5 PARKING LIGHTS
6 2ND UNLOCK
7 IGNITION
8 ACCESSORIES
11
HORN
3
LEVEL 3
INITIAL PROGRAMMING (RESET)
When this level is selected, programming is reset
to original factory settings.
Default parameters are indicated by boxes highlighted in yellow
(different colours for parameters 9 to 13).
NIVEAU DEL
PREMIER PARAMÈTRE 1
PREMIÈRE OPTION 1
OPTION COURANTE 2
OU
DERNIÈRE OPTION 3
PARAMÈTRE SUIVANT 2
PREMIÈRE OPTION 1
OPTION COURANTE 2
OU
DERNIÈRE OPTION 3
DERNIER PARAMÈTRE 3
PREMIÈRE OPTION 1
OPTION COURANTE 2
OU
DERNIÈRE OPTION 3
6 SEC.
FIN
OFF ON
NIVEAU 2
OFF ON
NIVEAU 3
OFF ON
OFF ON
OFF ON
NIVEAU 1
OFF ON
ON
DÉBUT
FIN
FIN
OFF ON
OFF ON
OFF ON
FIN
OPTIONS
PAR
DÉFAUT
OFF
START
END
6 sec.
LEVEL 1
LEVEL 2
LEVEL 3
DEFAULT
OPTION
LEVEL
FIRST OPTION
CURRENT OPTION
LAST OPTION
OR
FIRST OPTION
CURRENT OPTION
LAST OPTION
OR
FIRST OPTION
CURRENT OPTION
LAST OPTION
OR
FIRST PARAMETER
FOLLOWING PARAMETER
LAST PARAMETER
END
END
END
DIAGNOSTIC
LED
+
F2 - 10A
H11 PROGRAMMABLE RELAY
J1
PARKING LIGHT POLARITY
PROGRAMMING JUMPER
(H1-GREEN)
COMMON (30)
N.C. (87A)
N.O. (87)
H10 ACCESSORY INTERFACES
-
H1 POWER SUPPLY / POWER OUTPUTS
RED: 12VDC INPUT (+)
ORANGE:
IGNITION OUTPUT (+) – PROTECTED BY F1 (25A)
YELLOW: ACCESSORY OUTPUT (+) - PROTECTED BY F3 (25A)
GREEN: PARKING LIGHTS OUTPUT (±) – POWERED BY F1 (25A)
RED/BLACK: 12VDC INPUT (+)
BLUE: STARTING OUTPUT (+) - PROTECTED BY F1 (25A)
H2 UN/LOCK OUTPUT
BROWN: LOCK OUTPUT (-) 500mA
RED: 12VDC OUTPUT (+) 500mA
BLUE: UNLOCK OUTPUT (-) 500mA
H3 PROGRAMMABLE OUTPUTS
VIOLET: PROGRAMMABLE OUTPUT #4 (-) 200mA - SEE LEVEL 2-12
WHITE: PROGRAMMABLE OUTPUT #3 (-) 200mA - SEE LEVEL 2-11
WHITE/BLUE: PROGRAMMABLE OUTPUT #2 (-) 200mA - SEE LEVEL 2-10
BROWN: PROGRAMMABLE OUTPUT #1 (-) 200mA - SEE LEVEL 2-9
YELLOW: PULSE START INPUT (-)
H4 ON/OFF SWITCH
H5 ANTENNA / RECEIVER
H6 CONTROL SIGNALS
GREEN: OUTPUT WHEN RUNNING (-) 200mA
BLACK/RED: INTERRUPT INPUT (-) - HOOD SWITCH
WHITE/GREEN: INTERRUPT INPUT (+) - BRAKE
BLACK: GROUND (-)
NO CONNECTION
BLACK/GREEN: TACHOMETER SIGNAL INPUT
H7 ASTROLINK
H8 MANUAL INTERFACE
