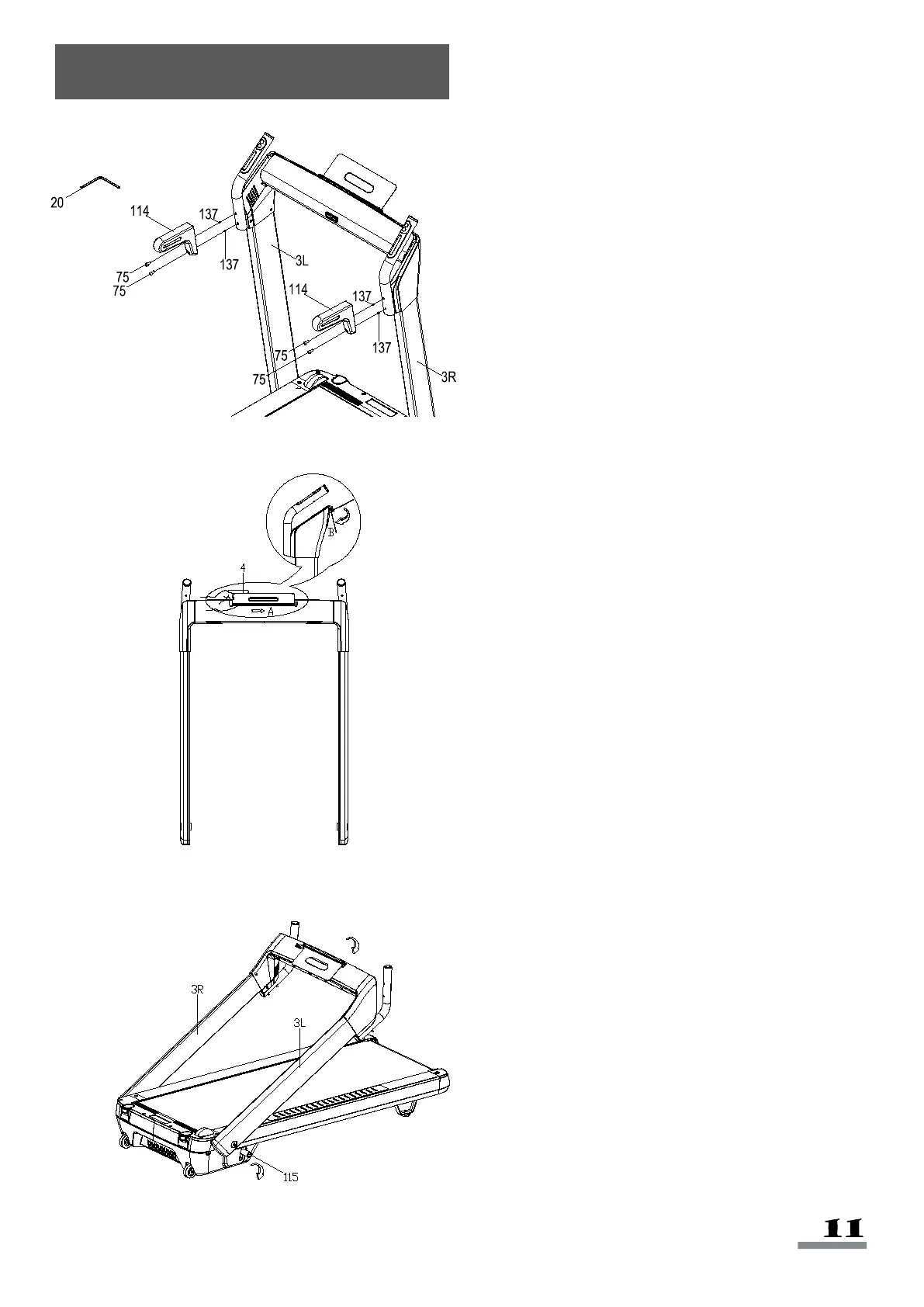

Stand in front of the treadmill. Fold the
Tablet Bracket (No. 4) by pulling it to
the right as shown in drawing A. Then,
turn it down as in the drawing B.
Hold the Handlebars (No. 3L & No.
3R). Press the Foot Lever (No. 115)
until you hear a click. Then, lower the
Handlebars (No. 3L & No. 3R).
Before you fold the treadmill, remove
the 4 Screws (No. 75) and the 2
Handrails (No. 114) using the Allen
Wrench (No. 20).
If you saved the Plugs (No. 137), you
can plug in the holes.
