Connectors
3. H/W SETUP
3. HARDWARE SETUP

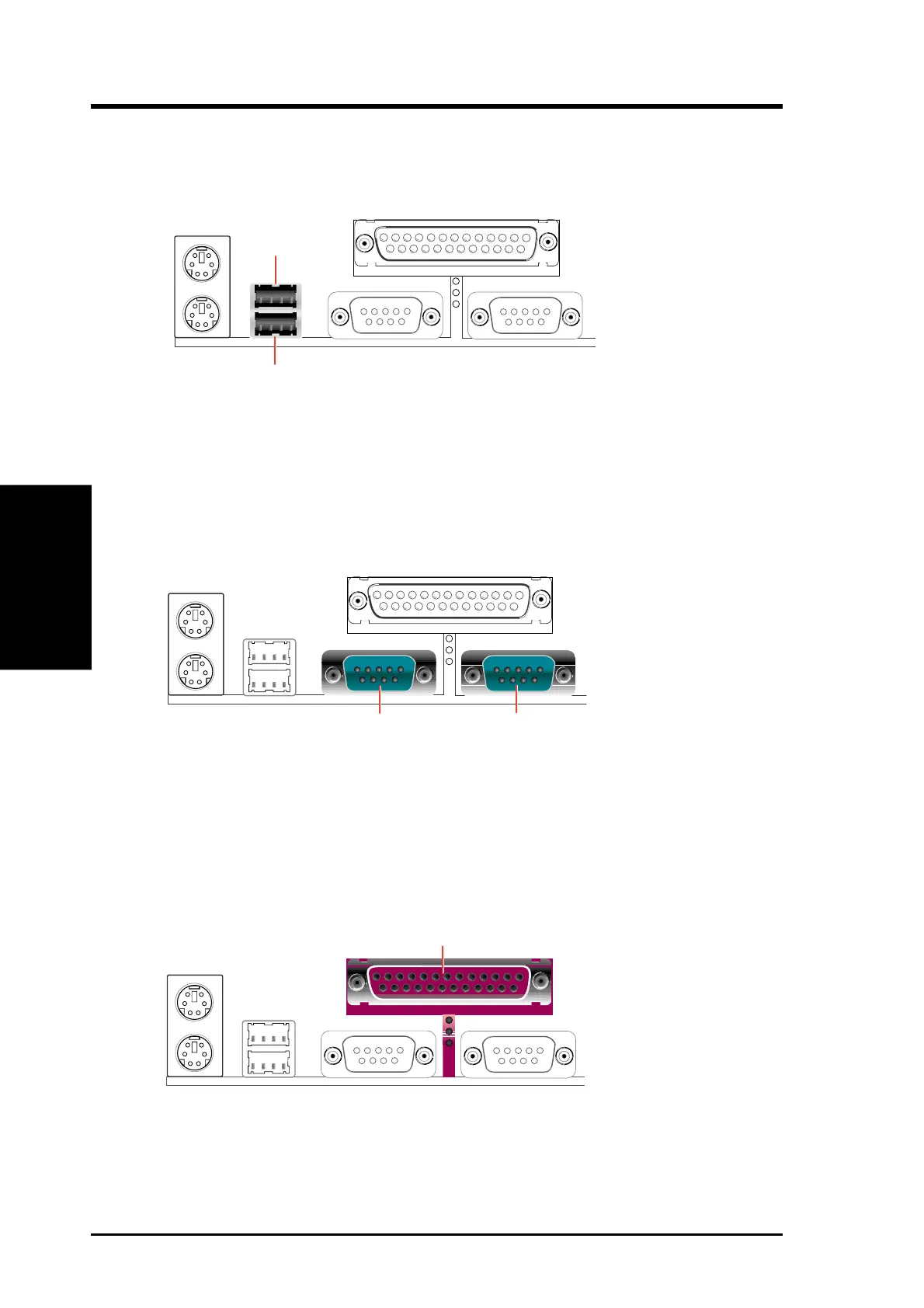

3) Universal Serial BUS Ports 0 & 1 (Black two 4-pin USB)
Two USB ports are available for connecting USB devices.
Universal Serial Bus (USB) 1
USB 0
4) Serial Port Connectors (Teal/Turquoise 9-pin COM1 / COM2)
Two serial ports can be used for pointing devices or other serial devices. For
setting up these ports, see Onboard Serial Port 1 in 4.4.2 I/O Device Configu-
ration for settings.
COM2COM1
Serial Ports (9-pin Male)
5) Parallel Port Connector (Burgundy 25-pin PRINTER)
You can enable the parallel port and choose the IRQ through Onboard Parallel
Port (see 4.4.2 I/O Device Configuration).
NOTE: Serial printers must be connected to the serial port.
Parallel Port (25-pin Female)
