2.3.10 Rear panel connection
12
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows
®
OS environment and after the USB 3.0 driver is installed.
• USB 3.0 devices can be used as data storage only.
• The USB3_2 port supports
USB Charger+ and USB BIOS Flashback.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.
DO NOT insert a different connector to the external SATA port.

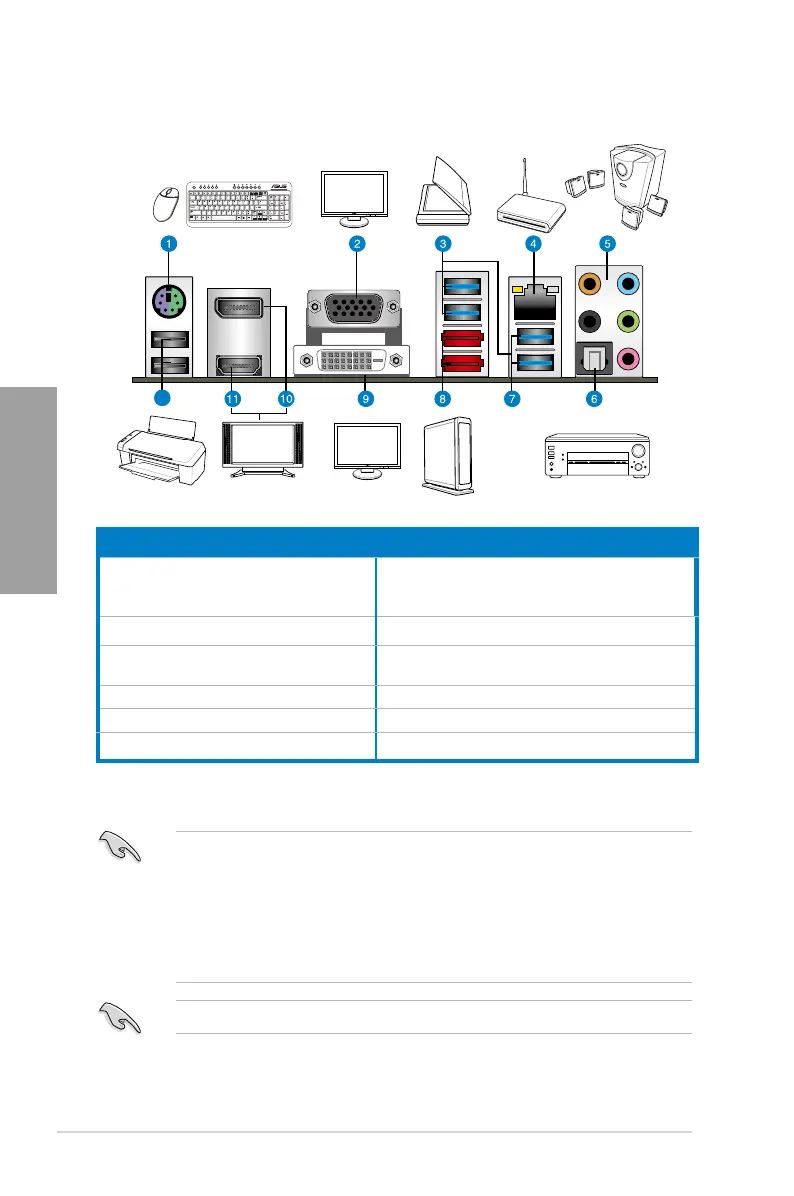

Rear panel connectors
1. PS/2 keyboard/mouse combo port 7. AMD USB 3.0 ports 1 and 2, support ASUS USB
3.0 Boost UASP Mode. Bottom port supports
USB BIOS Flashback and USB Charger+
2.
Video Graphics Adapter (VGA) port 8. External SATA 6.0Gb/s ports
3.
ASMedia USB 3.0 ports 1 and 2, support
ASUS USB 3.0 Boost UASP Mode
9.
DVI-D port
4.
Realtek
®
LAN (RJ-45) port* 10. DisplayPort
5.
Audio I/O ports** 11. HDMI port
6.
Optical S/PDIF Out port 12. USB 2.0 ports 1 and 2
