Keyboard power (3-pin KBPWR)Keyboard power (3-pin KBPWR)
Keyboard power (3-pin KBPWR)Keyboard power (3-pin KBPWR)
Keyboard power (3-pin KBPWR)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) if you wish to wake up
the computer when you press a key on the keyboard (the default is
the Space Bar). This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead, and a corresponding setting in
the BIOS.
A8V-E
DELUXE
®

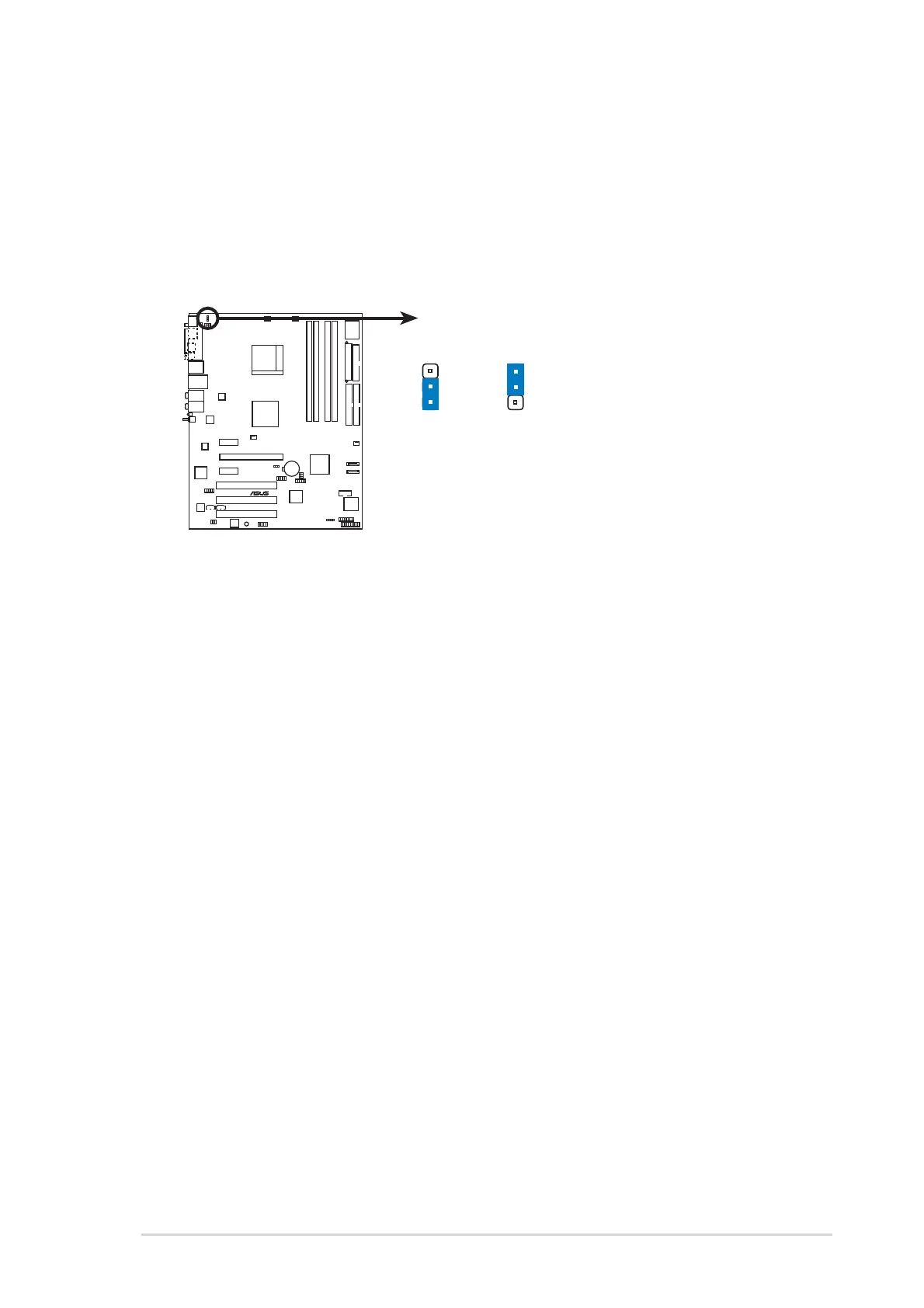

A8V-E DELUXE Keyboard power setting
(Default)
+5V +5VSB
KBPWR
2
1
2
1
