Asus A8V-E - Page 51

ASUS A8V-E DeluxeASUS A8V-E Deluxe
ASUS A8V-E DeluxeASUS A8V-E Deluxe
ASUS A8V-E Deluxe
2-292-29
2-292-29
2-29
8.8.
8.8.
8.

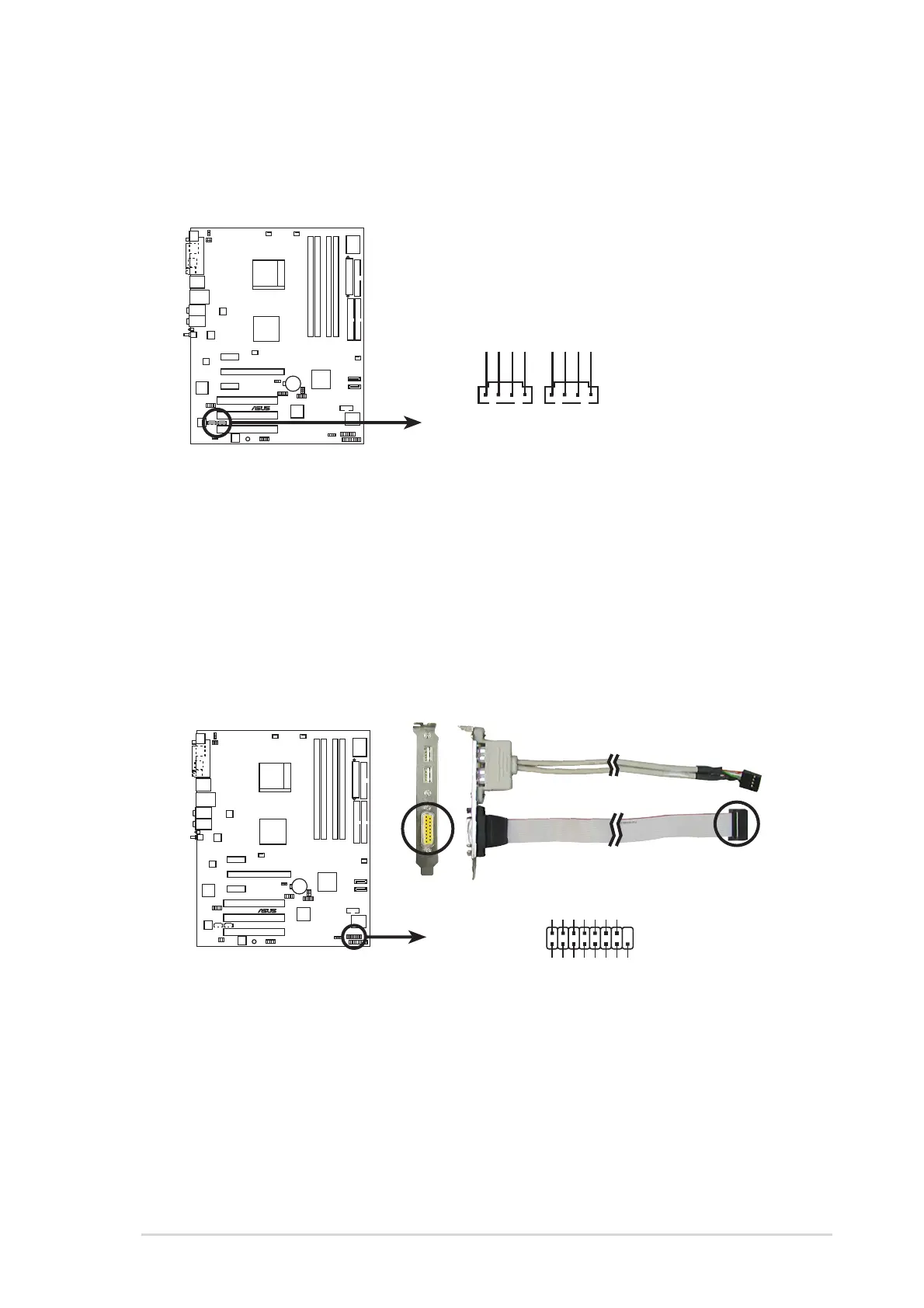

Internal audio connectors (4-pin CD, AUX)Internal audio connectors (4-pin CD, AUX)
Internal audio connectors (4-pin CD, AUX)Internal audio connectors (4-pin CD, AUX)
Internal audio connectors (4-pin CD, AUX)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV-tuner, or MPEG card.
9.9.
9.9.
9.
GAME/MIDI port connector (16-1 pin GAME)GAME/MIDI port connector (16-1 pin GAME)
GAME/MIDI port connector (16-1 pin GAME)GAME/MIDI port connector (16-1 pin GAME)
GAME/MIDI port connector (16-1 pin GAME)
This connector is for a GAME/MIDI port. Connect the USB/GAME
module cable to this connector, then install the module to a slot
opening at the back of the system chassis. The GAME/MIDI port
connects a joystick or game pad for playing games, and MIDI devices
for playing or editing audio files.
A8V-E
DELUXE
®
A8V-E DELUXE Internal audio connectors
AUX
Right Audio Channel
Left Audio Channel
Ground Ground
CD
Right Audio Channel
Left Audio Channel
Ground Ground
A8V-E
DELUXE
®
A8V-E DELUXE Game connector
GAME
+5V +5V
J2B1 J2CX MIDI_OUT J2CY J2B2 MIDI_IN
J1B1
J1CX
GND GND
J1CY
J1B2
+5V
